Especificações Técnicas

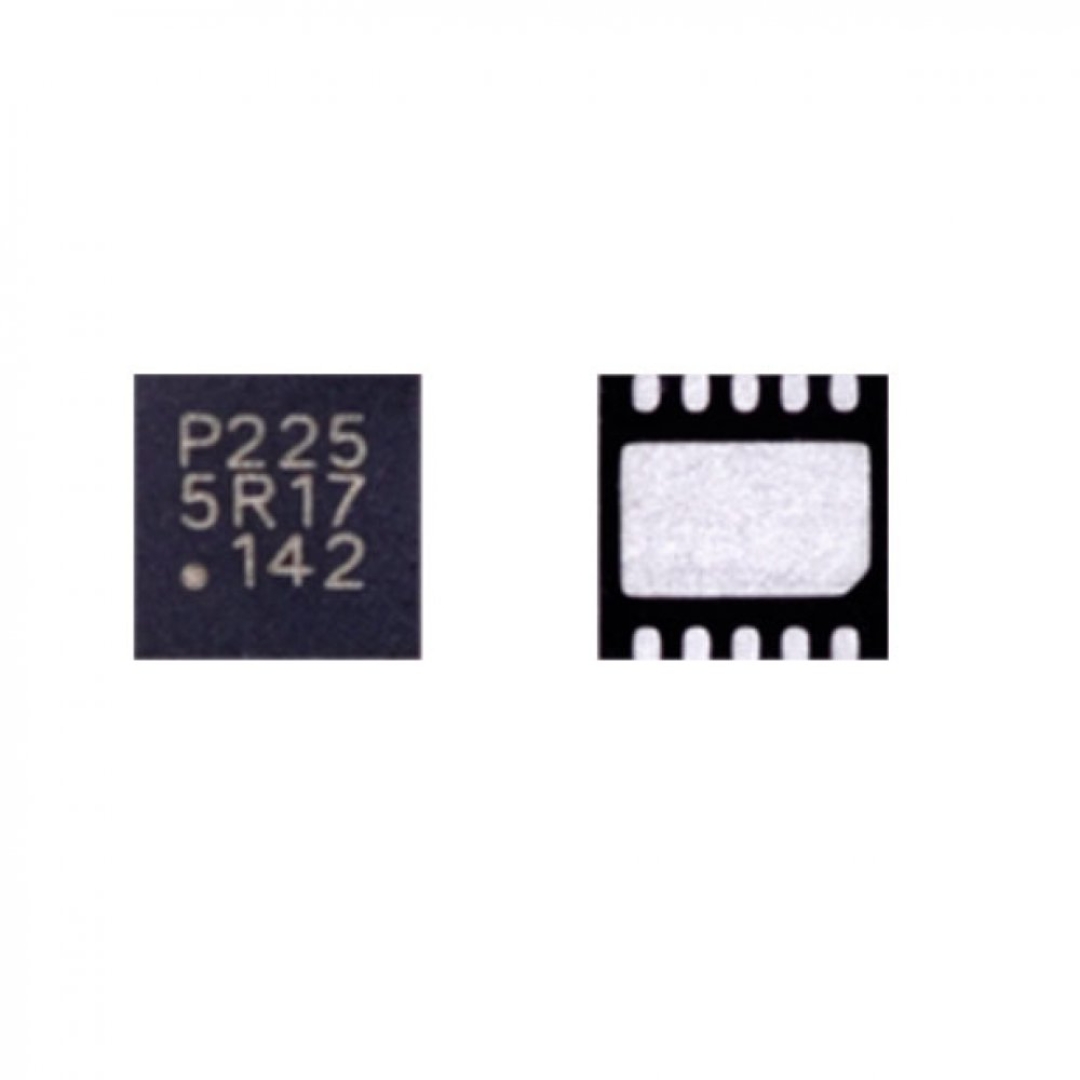

OUTROS NUMEROS DE PEÇA PARA ESTE COMPONENTE: VP225 VIA LABS VP225 IS AN USB TYPE-C DFP CC CONTROLLER. THE VP225 PROVIDES THE ELECTRICAL MEASUREMENT TO SUPPORT THE FOLLOWING TYPE-C CC CONTROLLER FEATURES.   (1) DETECT ATTACH OF USB TYPE-C PORTS (2) RESOLVE CABLE ORIENTATION AND TWIST CONNECTIONS TO ESTABLISH USB DATA BUS ROUTING (3) ESTABLISH DFP AND UFP ROLES BETWEEN TWO ATTACHED PORTS (4) DISCOVER AND CONFIGURE VBUS: USB TYPE-C CURRENT MODE (5) CONFIGURE VCONN THE PMODEX PINS ARE USED TO CONFIGURE THE USB TYPE-C CURRENT MODES. THESE TYPE-C CURRENT MODES INCLUDE DEFAULT USB POWER, 1.5A AND 3.0A MODES.   KEY FEATURES COMPLIANT WITH USB TYPE-C SPECIFICATION R1.1 DETECT THE ATTACHMENT AND DETACHMENT OF TYPE-C PORT PROVIDE TYPE-C CABLE ORIENTATION IDENTIFICATION PROVIDE THE SELECTION OF VBUS POWER CAPABILITY SETTING PROVIDE THE CONTROL SIGNAL FOR VBUS PROVIDE VCONN APPLICATION WITH MAXIMUM 1.5W INTEGRATE VCONN MOSFET POWER SWITCH THERMAL AND SHORT-CIRCUIT PROTECTION FOR VCONN UNDER-VOLTAGE LOCK OUT PROTECTION AMBIENT OPERATING TEMPERATURE: -40°C TO 85°C AVAILABLE IN 10-PIN DFN PACKAGE LEAD (PB)-FREE AND ROHS COMPLIANT P225 VP225 CI CONTROLADOR DE USB-C DFN-10 MAIORES DETALHES DE P225 NO SITE DO FABRICANTE: HTTPS://WWW.VIA-LABS.COM/PRODUCT_SHOW.PHP?ID=84 TAGS DE P225: CI CONTROLADOR USB-C, CI DRIVER USB TIPO C, CI DRIVER USB-C, CI USB TYPE-C, IC P225 USB

Informações Adicionais
