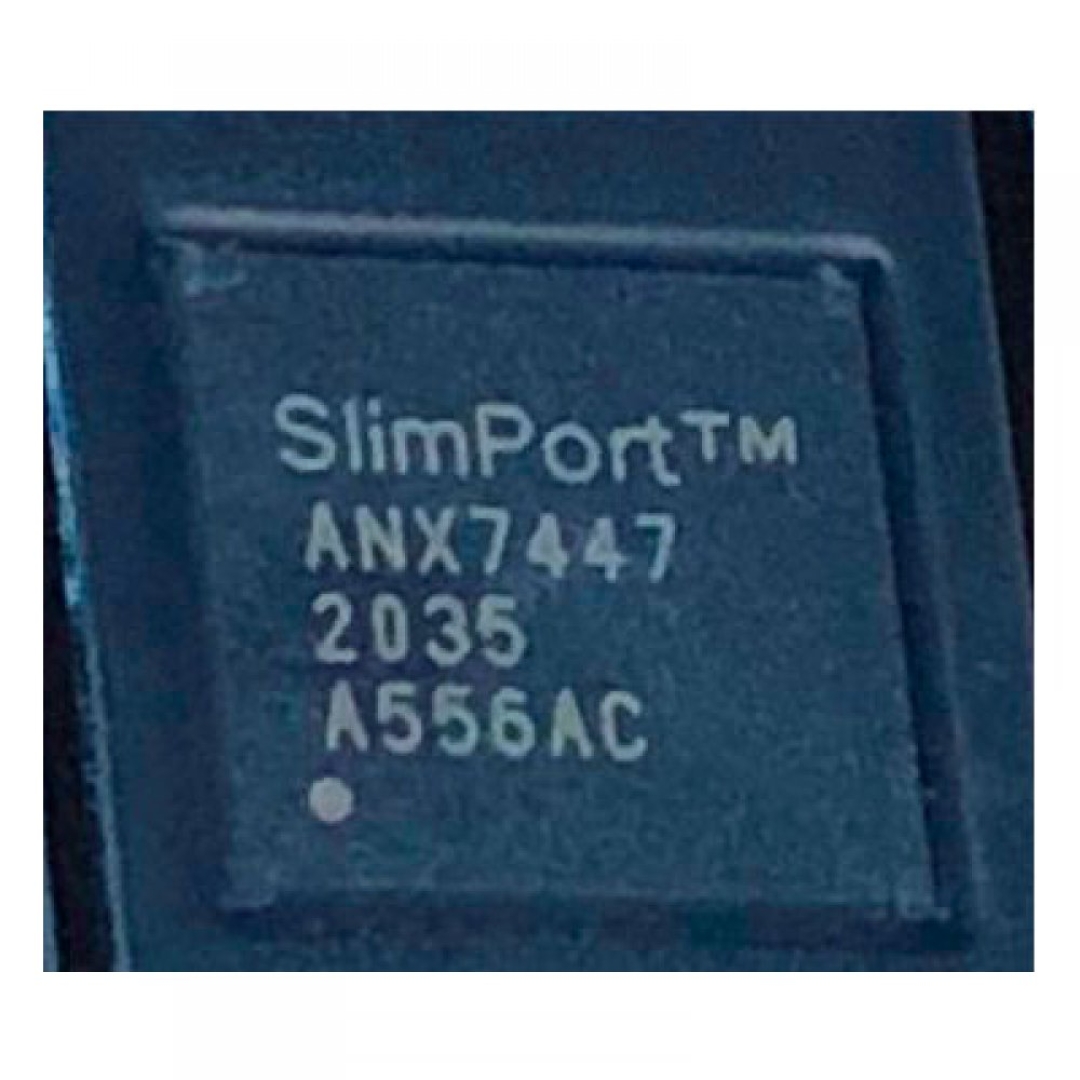

ANX7447 IS AN INTELLIGENT CROSSPOINT SWITCH THAT SUPPORTS SWITCHING AT DATA RATES OF UP TO 10GBPS. ANX7447 SUPPORTS HIGHSPEED INTERFACES, SUCH AS USB 3.1 (GEN 1 5GBPS, GEN 2 10GBPS) AND DISPLAYPORT (DP) 1.4 AT UP TO HBR3 (8.1GBPS). ANX7447 IS DESIGNED AS A COMPANION IC TO VARIOUS CPUS AND APPLICATION PROCESSORS (APS) TO ENABLE NOTEBOOKS, DESKTOPS, AND 2IN1 PCS TO USE THE REVERSIBLE USB TYPEC (USBC) CONNECTORS. AN ONCHIP MICROCONTROLLER (OCM) IS AVAILABLE TO MANAGE THE SIGNAL SWITCHING, CHANNEL CONFIGURATION (CC) DETECTION, USB POWER DELIVERY (USBPD) CHARGING AND VENDOR DEFINED MESSAGE (VDM) PROTOCOL, AND OTHER S, AS DEFINED IN THE USB TYPEC V1.2 AND USB POWER DELIVERY V3.0 SPECIFICATIONS.   ANX7447 CAN BE CONFIGURED FOR A DOWNSTREAM FACING PORT (DFP) OR DUALROLE PORT (DRP) TO SUPPORT A USBC RECEPTACLE. IN THE DFP CONFIGURATION, ANX7447 SUPPORTS THE DISPLAYPORT ALTERNATE MODE AS DEFINED BY VESA TO CARRY HIGHDEFINITION AUDIO AND VIDEO (A/V) CONTENTS AT 1, 2, OR 4LANES DP OVER THE USBC CONNECTOR. FEATURES 4 LANES DISPLAYPORT INPUTS WITH LINK SPEED OF 1.62GBPS, 2.7GBPS, 5.4GBPS, 6.75GBPS, 8.1GBPS USB 3.1 SIGNAL (SSTX AND SSRX) WITH GEN1 (5GBPS) AND GEN2 (10GBPS) LINK SPEED DISPLAYPORT ALTERNATE MODE (SLIMPORT) COMMUNICATION SUPPORT THROUGH USBPD STRUCTURED VDM MESSAGING NATIVE TCPCCOMPLIANT HARDWARE REGISTER INTERFACE SUPPORTS DFP AND DRP MODES FOR HOSTONLY OR DUALROLE APPLICATIONS INTEGRATED VCONN FETS BUILTIN 10BIT ADC TO MONITOR VBUS VOLTAGE AND CURRENT DEDICATED CONTROL SIGNALS FOR VBUS SOURCE FET, VBUS SINK FET, AND VBUS AUTO DISCHARGE CIRCUITY SERIAL AND DEBUG INTERFACE SLAVE INTERFACE DIRECT CONNECT INTERFACE (DCI) DEBUG SUPPORT INDUSTRY STANDARD COMPATIBILITY USB TYPEC R1.2 SPECIFICATION USB POWER DELIVERY V3.0 R1.0 SPECIFICATION DISPLAYPORT 1.4 SPECIFICATION DISPLAYPORT ALTERNATE MODE OVER USB TYPEC R1.1 SPECIFICATION UNIVERSAL SERIAL BUS (USB) TYPEC PORT CONTROLLER INTERFACE R1.0 SPECIFICATION LOWPOWER DESIGN SINGLE SUPPLY AT 3.3V DEDICATED SUPPLY POWER PIN FOR FLEXIBLE I/O POWER 1.8V OR 3.3V ULTRALOW POWER CONSUMPTION (TYPICAL 77UW) IN STANDBY MODE OCM TO IMPLEMENT SIGNAL SWITCHING, USBPD MESSAGING, AND DISPLAYPORT RELATED S 64K BYTES SRAM FOR FIRMWARE EXECUTION 128K BYTES FLASH FOR FIRMWARE STORAGE PDFU FOR FIRMWARE UPDATING DEAD BATTERY DETECTION SUPPORT PACKAGES BGA49 3.2MM X 3.2MM, 0.91MM ZHEIGHT, 0.4MM PINPITCH QFN48 6MM X 6MM, 0.90MM ZHEIGHT, 0.4MM PINPITCH APPLICATIONS NOTEBOOKS, DESKTOPS, AND 2IN1S ANX7447 USB TYPE-C CROSSPOINT SWITCH MAIORES DETALHES DE ANX7447 NO SITE DO FABRICANTE: HTTPS://WWW.ANALOGIX.COM/SYSTEM/FILES/AA-004980-PB-3-ANX7447.PDF TAGS DE ANX7447: ANX7447, TPS65987D, TPS65982ABZBHRTPS 65987D, TPS65982ABZBHR, SN1804044ZBHR, USB INTERFACE IC, UART USB, TPS65982ABZBHR, TPS65982, TPS65982A, SN1804044ZBHR, SN1804044, SN1804044Z, CONTROLADOR USB-C, DRIVER ISB-C, CI CONTROLADOR USB C, DRIVER CI USB, CI CONTROLADOR DE USB TIPO C, USB INTERFACE IC USB TYPE-C AND USB PD CONTROLLER POWER SWITCH AND HIGH-SPEED MULTIPLEXER 96-NFBGA, CONTROLADOR USB 3.0, CONTROLADOR USB-C, CONTROLADOR USB C, CONTROLADOR USB TYPE C, USB TYPE-C E POWER DELIVERY CONTROLLER, USB INTERFACE IC, USB C INTERFACE IC, USB TYPE C INTERFACE IC, 96-VFBGA
