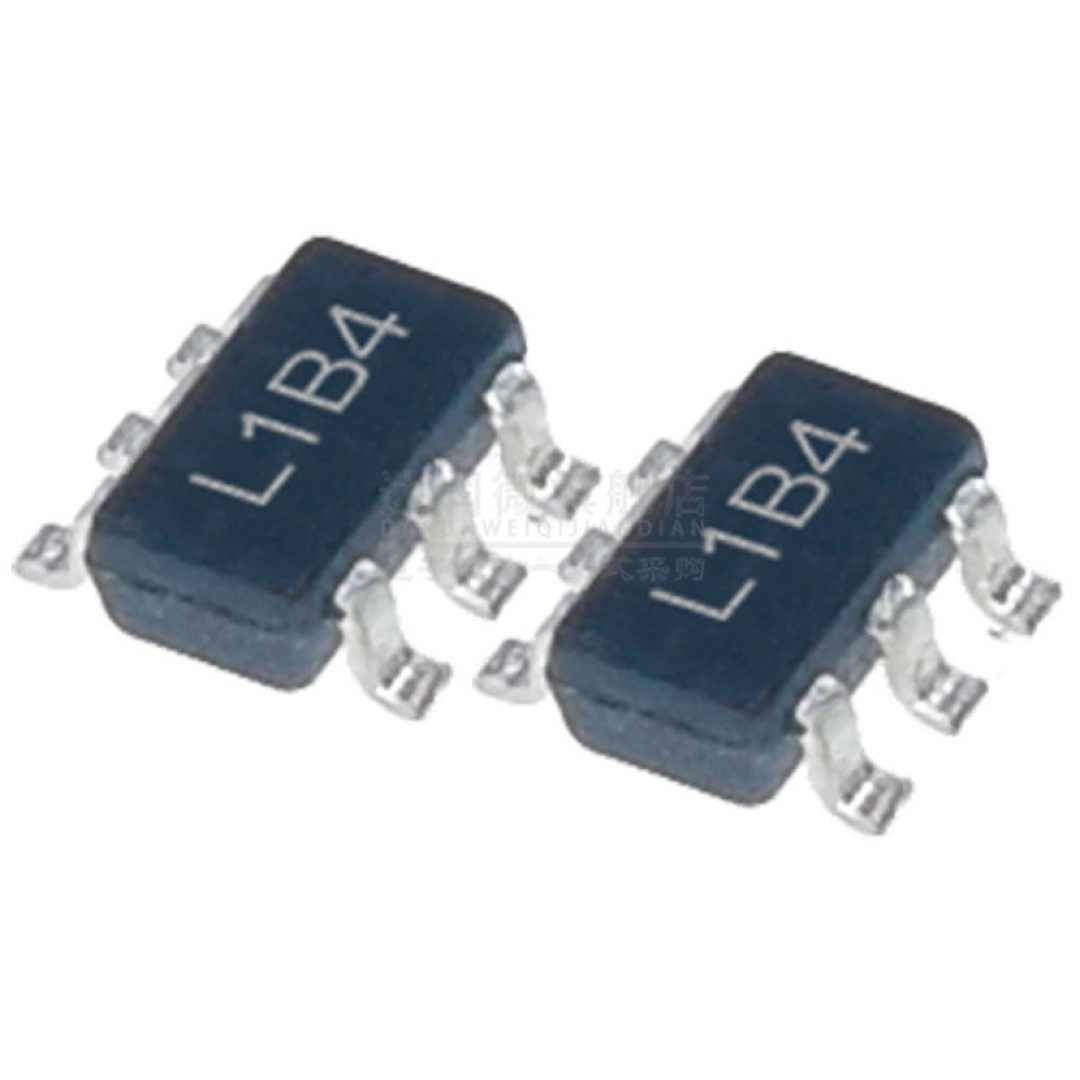

THE APL3510/1 SERIES OF POWER SWITCHES ARE DESIGNED FOR USB APPLICATIONS. THE 70MW N-CHANNEL MOSFET POWER SWITCH SATISFIES THE VOLTAGE DROP REQUIREMENTS OF USB SPECIFICATION. FEATURES GENERAL DESCRIPTION APPLICATIONS · NOTEBOOK AND DESKTOP COMPUTERS · USB PORTS · HIGH-SIDE POWER PROTECTION SWITCHS   PIN CONFIGURATIONS THE PROTECTION FEATURES INCLUDE CURRENT-LIMIT PROTECTION, SHORT-CIRCUIT PROTECTION, AND OVER-TEMPERATURE PROTECTION. THE DEVICE LIMITS THE OUTPUT CURRENT AT CURRENT LIMIT THRESHOLD LEVEL. WHEN VOUT DROPS BELOW VIN-1V, THE DEVICES LIMIT THE CURRENT TO A LOWER AND SAFE LEVEL.   THE OVER-TEMPERATURE PROTECTION LIMITS THE JUNCTION TEMPERATURE BELOW 140OC IN CASE OF SHORT CIRCUIT OR OVER LOAD CONDITIONS. OTHER FEATURES INCLUDE A DEGLITCHED OCB OUTPUT TO INDICATE THE FAULT CONDITION AND AN ENABLE INPUT TO ENABLE OR DISABLE THE DEVICE.   . 70MW (MSOP-8) HIGH SIDE MOSFET · WIDE SUPPLY VOLTAGE RANGE: 2.7V TO 5.5V · CURRENT-LIMIT AND SHORT-CIRCUIT PROTECTIONS · OVER-TEMPERATURE PROTECTION · FAULT INDICATION OUTPUT · ENABLE INPUT · UL APPROVED-FILE NO. E328191 · NEMKO IEC/EN60950-1 CB SCHEME CERTIFIED, NO. 85153 · TUV IEC/EN60950-1 CERTIFIED, NO. 44 780 16 406748-014 · LEAD FREE AND GREEN DEVICES AVAILABLE (ROHS COMPLIANT) APL3511 USB POWER DISTRIBUTION SWITCH SOT-23-5 MAIORES DETALHES DE APL3511 NO SITE DO FABRICANTE: HTTPS://DATASHEET.LCSC.COM/LCSC/1912111437_ANPEC-ELEC-APL3511BBI-TRG_C368544.PDF TAGS DE APL3511: APL3511, APL3511BBI-TRG, APL3511BBI, L1B4, CI CONTROLADOR USB, IC USB CONTROLLER, IC USB DRIVER, DRIVER USB, CI GERENCIADOR DE USB, USB POWER CONTROLLER, CI 3511, L1B8, CI L1B8, CI L1B4, MOSFET PORTA USB, CI CONTROLADOR DE PORTA USB, CI DE PORTA USB, CI USB, CI 5 PINOS USB
