Especificações Técnicas

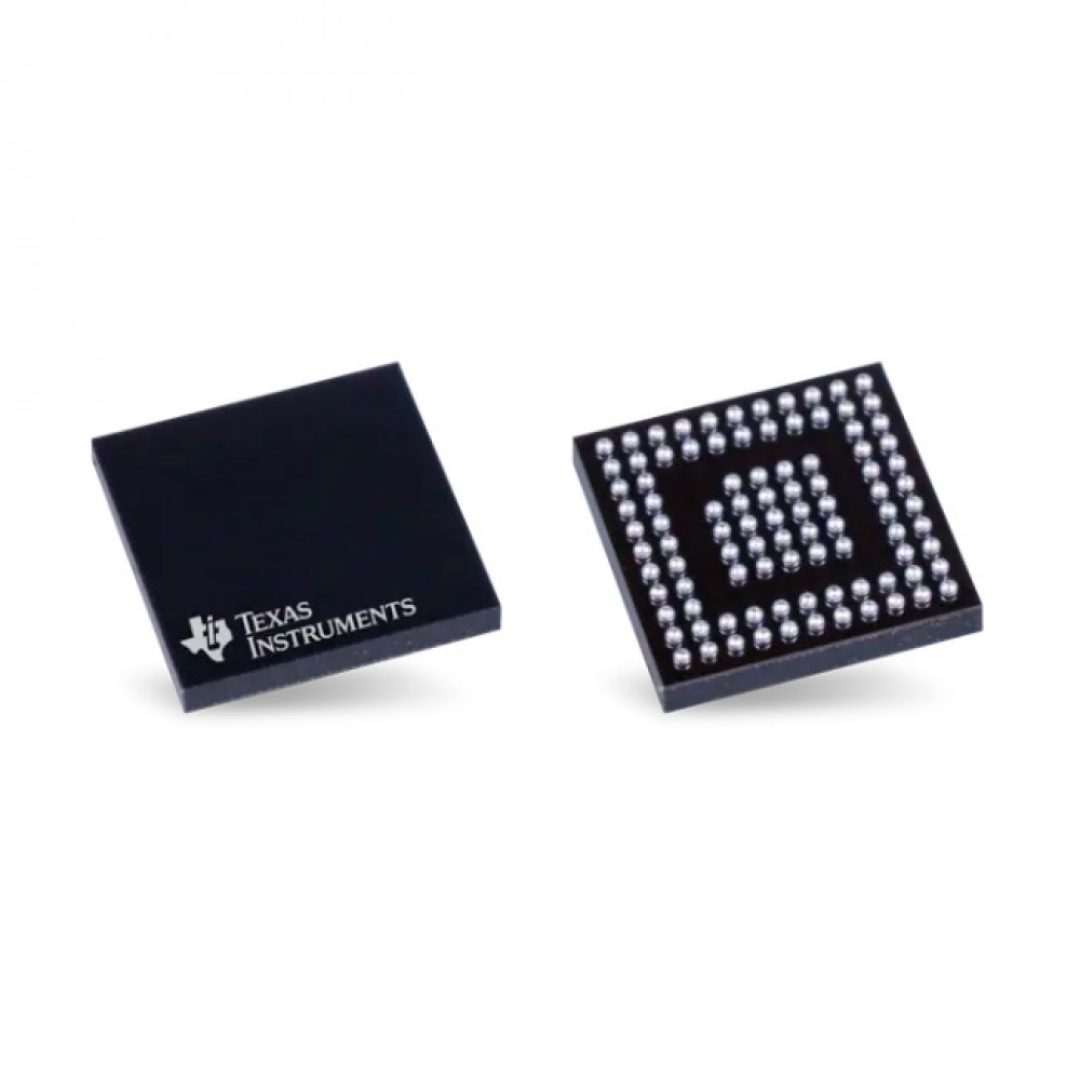

TEXAS INSTRUMENTS TPS65982 USB TYPE-C E POWER DELIVERY CONTROLLER   TEXAS INSTRUMENTS TPS65982 USB TYPE-C AND POWER DELIVERY (PD) CONTROLLER PROVIDE CABLE PLUG AND ORIENTATION DETECTION AT THE USB TYPE-C CONNECTOR. UPON CABLE DETECTION, THE TPS65982 COMMUNICATES ON THE CC WIRE USING THE USB PD PROTOCOL. WHEN CABLE DETECTION AND USB PD NEGOTIATION ARE COMPLETE, THE TPS65982 ENABLES THE APPROPRIATE POWER PATH AND CONFIGURES ALTERNATE MODE SETTINGS FOR INTERNAL AND (OPTIONAL) EXTERNAL MULTIPLEXERS. THE MIXED-SIGNAL FRONT-END ON THE CC PINS ADVERTISES DEFAULT (500MA), 1.5A OR 3A FOR TYPE-C POWER SOURCES. IT DETECTS A PLUG EVENT AND DETERMINES THE USB TYPE-C CABLE ORIENTATION. IT CAN ALSO AUTONOMOUSLY NEGOTIATES USB PD CONTRACTS BY ADHERING TO THE SPECIFIED BI-PHASE MARKED CODING (BMC) AND PHYSICAL LAYER (PHY) PROTOCOL.   FEATURES USB POWER DELIVERY (PD) CONTROLLER: MODE CONFIGURATION FOR A SOURCE (HOST), SINK (DEVICE), OR SOURCE-SINK BI-PHASE MARKED ENCODING/DECODING (BMC) PHYSICAL LAYER (PHY) PROTOCOL POLICY ENGINE CONFIGURABLE AT BOOT AND HOST-CONTROLLED USB TYPE-C SPECIFICATION COMPLIANT: DETECT USB CABLE PLUG ATTACH CABLE ORIENTATION AND ROLE DETECTION ASSIGN CC AND VCONN PINS ADVERTISE DEFAULT, 1.5A OR 3A CURRENT FOR 5V USB TYPE-C POWER PORT POWER SWITCH: 5V, 3A SWITCH TO VBUS FOR TYPE-C POWER 5V TO 20V, 3A BIDIRECTIONAL SWITCH TO OR FROM VBUS FOR USB PD POWER 5V, 600MA SWITCHES FOR VCONN OVERCURRENT LIMITER, THE OVERVOLTAGE PROTECTOR PD SLEW RATE CONTROL AND HARD RESET SUPPORT PORT DATA MULTIPLEXER: USB 2.0 HS DATA, UART DATA, AND LOW-SPEED ENDPOINT SIDEBAND USE DATA FOR ALTERNATE MODES (DISPLAYPORT AND THUNDERBOLT) POWER MANAGEMENT: GATE CONTROL AND CURRENT SENSE FOR EXTERNAL 5V TO 20V, 5A BIDIRECTIONAL NFET SWITCH POWER SUPPLY FROM 3.3V OR VBUS SOURCE 3.3V LDO OUTPUT FOR DEAD BATTERY SUPPORT BGA MICROSTAR JUNIOR PACKAGE: 0.5MM PITCH THROUGH-HOLE VIA COMPATIBLE FOR ALL PINS UL RECOGNIZED: E169910 AND E339631 STANDARDS USED: 2367 IEC CERTIFICATION: NO88109 STANDARDS USED: 60950-1(ED.2);AM1;AM2      APPLICATIONS - NOTEBOOK COMPUTERS - TABLETS AND ULTRABOOKS - DOCKING SYSTEMS - CHARGER ADAPTERS - USB PD HOSTS, DEVICES, AND DUAL-ROLE PORTS - USB PD-ENABLED BUS-POWERED DEVICES - DISPLAYPORT, THUNDERBOLT, AND HDMI   MANUFACTURER: TEXAS INSTRUMENTS   PRODUCT CATEGORY: USB INTERFACE IC   ROHS:     SERIES: TPS65982   PRODUCT: USB SWITCHES   TYPE: PD CONTROLLER   MOUNTING STYLE: SMD/SMT   PACKAGE / CASE: NFBGA-96   STANDARD: USB-C PD   SPEED: LOW SPEED (LS)   DATA RATE: 480 MB/S   SUPPLY VOLTAGE - MIN: 2.85 V   SUPPLY VOLTAGE - MAX: 3.45 V   OPERATING SUPPLY CURRENT: 1.5 A, 3 A   MINIMUM OPERATING TEMPERATURE: - 10 C   MAXIMUM OPERATING TEMPERATURE: 85 C   PACKAGING: REEL   PACKAGING: CUT TAPE   PACKAGING: MOUSEREEL   BRAND: TEXAS INSTRUMENTS   INTERFACE TYPE: UART, USB   MOISTURE SENSITIVE: YES   NUMBER OF PORTS: 1 PORT   OPERATING SUPPLY VOLTAGE: 3.3 V   PORT TYPE: DFP, DRD, UFP   PRODUCT TYPE: USB INTERFACE IC TPS65982ABZBHR USB INTERFACE IC USB TYPE-C AND USB PD MAIORES DETALHES DE TPS65982ABZBHR NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/TPS65982.PDF?TS=1643200227152&REF_URL=HTTPS%25 TAGS DE TPS65982ABZBHR: TPS65982ABZBHR, SN1804044ZBHR, USB INTERFACE IC, UART USB, TPS65982ABZBHR, TPS65982, TPS65982A, SN1804044ZBHR, SN1804044, SN1804044Z, CONTROLADOR USB-C, DRIVER ISB-C, CI CONTROLADOR USB C, DRIVER CI USB, CI CONTROLADOR DE USB TIPO C, USB INTERFACE IC USB TYPE-C AND USB PD CONTROLLER POWER SWITCH AND HIGH-SPEED MULTIPLEXER 96-NFBGA, CONTROLADOR USB 3.0, CONTROLADOR USB-C, CONTROLADOR USB C, CONTROLADOR USB TYPE C, USB TYPE-C E POWER DELIVERY CONTROLLER, USB INTERFACE IC, USB C INTERFACE IC, USB TYPE C INTERFACE IC, 96-VFBGA

Informações Adicionais
