Especificações Técnicas

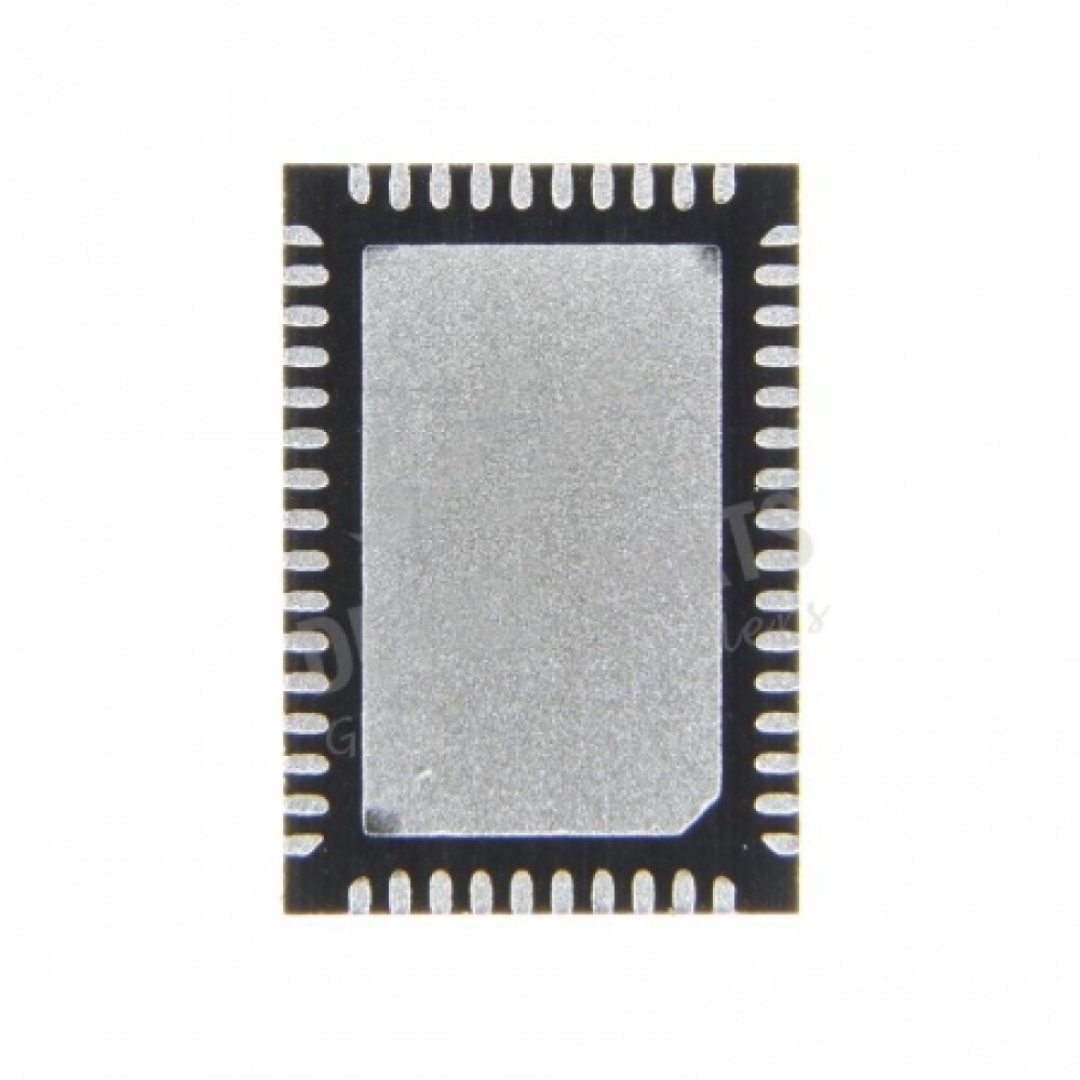

HOST-SIDE USB TYPE-C® PORT CONFIGURATION SWITCH FOR USB / DISPLAYPORT- ALT MODE, WITH INTEGRATED REDRIVER AND PORT CONTROLLER WITH TCPC INTERFACE THE PS8751 ADDRESSES REQUIREMENTS FOR THE IMPLEMENTATION OF A USB TYPE-C CONNECTOR ON A USB HOST DEVICE THAT SUPPORTS THE VESA® DISPLAYPORT ALT MODE STANDARD.  IT INCLUDES THE CONFIGURATION SWITCHING FOR ALL OF THE USB TYPE-C CONNECTION SIGNALS AND A TCPC (TYPE-C PORT CONTROLLER) INTERFACE THAT ENABLES THE MANAGEMENT OF THE USB TYPE-C INTERFACE S.   APPLICATIONS SMARTPHONES AND TABLETS NOTEBOOKS, PERSONAL COMPUTERS OTHER USB TYPE-C HOST DEVICES KEY FEATURES COMPLIANT WITH VESA DISPLAYPORT ALT MODE ON USB TYPE-C STANDARD VERSION 1.0A COMPLIANT WITH USB POWER DELIVERY REV. 2.0 COMPLIANT WITH USB TYPE-C PORT CONTROLLER INTERFACE SPECIFICATION REV. 1.0 FLEXIBLE USB TYPE-C SWITCHING SUPPORT FOR USB 3.1 GEN 1 5.0GBPS, AND DISPLAYPORT ALTERNATIVE MODE UP TO 5.4GBPS INPUT EQUALIZERS ON HIGH SPEED INPUTS TO OVERCOME SIGNAL LOSS IN PCB AND EXTERNAL CABLE ACTIVE DRIVERS ON HIGH SPEED OUTPUTS TO ASSURE RELIABLE SIGNAL TRANSMISSION AUTOMATIC OUTPUT DRIVER ADJUSTMENT FOR DISPLAYPORT PATH UTILIZING FIELD-PROVEN AUX INTERCEPTION DURING LINK TRAINING (PATENTED BY PARADE TECHNOLOGIES) ACTIVE SWITCH FABRIC FOR USB/DP AND FLIP CONTROL INTEGRATED BMC PHY AND PROTOCOL USB PD IS CONFIGURABLE FOR DFP/UFP/DRP SUPPORT BUILT-IN CC LOGIC FOR PLUG AND ORIENTATION DETECTION INTEGRATED VCONN POWER SWITCH GPIOS FOR VBUS SWITCH AND OTHER SYSTEM CONTROL I2C SLAVE WITH ALERT# (TPCPCI) DCI SUPPORT LOW POWER CONSUMPTION 30UW STANDBY POWER CONSUMPTION PACKAGE OPTIONS (HALOGEN FREE ROHS): PS8751A: 6.5×4.5MM 52-PIN QFN PS8751B: 6.5×4.5MM 52-PIN QFN PS8751E: 3×4.5MM 60-BALL VFBGA POWER SUPPLY OPTIONS: PS8751A: 3.3V AND 1.2V/1.35V SUPPLIES PS8751B: SINGLE 3.3 V SUPPLY PS8751E: 3.3V AND 1.2V SUPPLIES ESD: HUMAN BODY MODE AT 8KV FOR ALL CONNECTOR PINS PS8751B USB-C HOST SWITCH WITH PORT CONTROLLER QFN-52 MAIORES DETALHES DE PS8751B NO SITE DO FABRICANTE: HTTPS://WWW.PARADETECH.COM/PRODUCTS/PS8751/ TAGS DE PS8751B: PS8751B, PS8751, PS8802-1-F3-AX, PS8802-2-AX, PS8802, PS8802QFN52GTR-A2, PS8802A2, PS8802-A2, PS8802 A2, USB-C HOST SWITCH WITH USB 3.1 GEN 2 RETIMER DP ALT MODE HBR3 REDRIVER, PS8802-1-F3-AX, PS8802-2-F3-AX, AP2141, AP2151FMG-7, AP2151FMG, AP2151FMG7, AP2151FMG 7, AP2151, 0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH, CI PARA PORTA USB 3.1, CI DE PROTEÇAO USB-C 3.1, CI DE PROTECAO USB-C 3.1, PROTECAO USB TYPEC, PROTEÇÃO USB 3.1, POWER DISTRIBUTION INTRFCE EN ACTIVE HI 0.5A 2.7V-5.5V, CONTROLADOR USB, CONTROLADOR DE PORTA USB-C 3.1, CI DE PORTA USB-C, CIRCUITO INTEGRADO USB-C 3.1, PS8802 A3, HIGH SPEED OPTOCOUPLERS SGL TR DC FAST COUPLR, TUSB1046A-DCI, TUSB46, PS8802, PS8802QFN52GTR-A2, PS8802A2, PS8802-A2, PS8802 A2, USB-C HOST SWITCH WITH USB 3.1 GEN 2 RETIMER DP ALT MODE HBR3 REDRIVER, PS8802-1-F3-AX, PS8802-2-F3-AX, AP2141, AP2151FMG-7, AP2151FMG, AP2151FMG7, AP2151FMG 7, AP2151, 0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH, CI PARA PORTA USB 3.1, CI DE PROTEÇAO USB-C 3.1, CI DE PROTECAO USB-C 3.1, PROTECAO USB TYPEC, PROTEÇÃO USB 3.1, POWER DISTRIBUTION INTRFCE EN ACTIVE HI 0.5A 2.7V-5.5V, CONTROLADOR USB, CONTROLADOR DE PORTA USB-C 3.1, CI DE PORTA USB-C, CIRCUITO INTEGRADO USB-C 3.1, PS8802 A3, TCPC INTERFACE

Informações Adicionais
