Especificações Técnicas

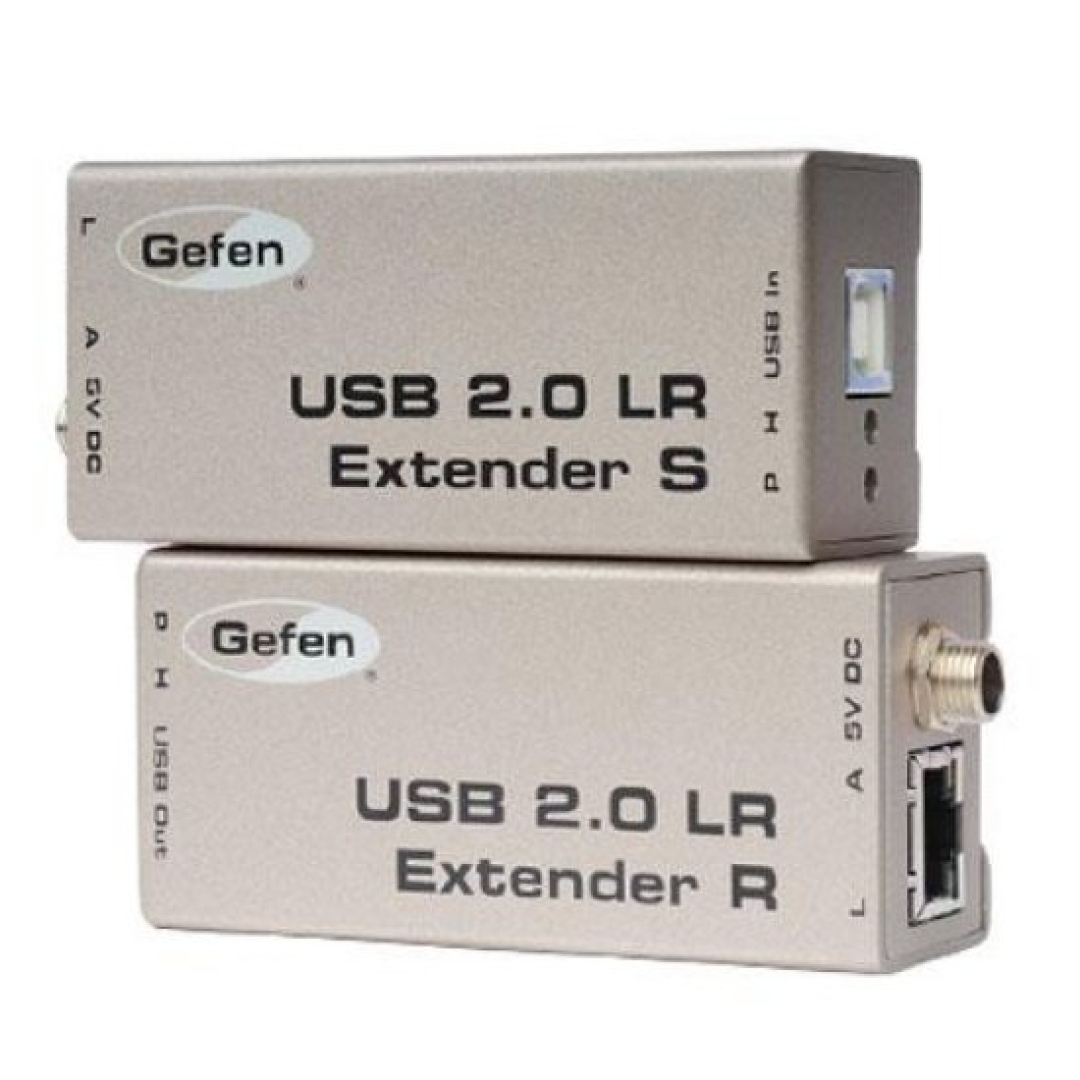

GEFEN USB 2.0 LR EXTENDS HIGH-SPEED USB DEVICES SIMPLY AND RELIABLY. THE COMPACT USB 2.0 LR SENDER/RECEIVER UNITS INSTALL IN MINUTES AND FULLY SUPPORT ALL USB VERSIONS (V1.1 AND V2.0), AT SPEEDS OF UP TO 480 MBPS ESSENTIAL FOR HIGH-PERFORMANCE APPLICATIONS SUCH AS DIGITAL IMAGING AND INTERACTIVE GAMING. SPECIFICATIONS USB 2.0 SPEED: 480 MBPS LINK CONNECTOR (SENDER/RECEIVER): RJ-45 SHIELDED USB CONNECTOR (SENDER): (1) USB TYPE B USB CONNECTORS (RECEIVER): (2) USB TYPE A TWO 500 MA DC POWERED USB PORTS AT RECEIVER POWER SUPPLY (SENDER/RECEIVER): 5V DC, LOCKING POWER CONSUMPTION (MAX): 2.5W (SENDER) 10W(RECEIVER) OPERATING TEMPERATURE: 32°F TO 122°F (0°C TO 50°C) STORAGE TEMPERATURE: -4°F TO 158°F (-20°C TO 70°C) OPERATING HUMIDITY: 20% TO 80% RELATIVE HUMIDITY, NON-CONDENSING STORAGE HUMIDITY: 10% TO 90% RELATIVE HUMIDITY, NON-CONDENSING DIMENSIONS (W X H X D) (SENDER/RECEIVER): 3.7 X 1.4 X 1.8 (94MM X 36MM X 46MM) SHIPPING WEIGHT: 2 LBS. EXT-USB2-0-LR GEFEN USB 2.0 EXTENDER CAT5 480 MBPS 5V MAIORES DETALHES DE EXT-USB2-0-LR NO SITE DO FABRICANTE: HTTP://WWW.GEFEN.COM/PDF/EXT-USB2.0-LR.PDF TAGS DE EXT-USB2-0-LR: EXT-USB2-0-LR, EXT-USB2.0-LR, EXTUSB20LR, EXTENSOR USB, RJ45, EXTENSOR USB RJ45, EXTENSOR RJ45 USB, EXTEND USB 2.0 OVER CAT5 UP TO 330 FEET, ESTENDER USB COM RJ45, USB COM CAT5, USB COM RJ45, EXTENSOR USB COM CAT5, EXTENSOR USB COM RJ45, =EXT-USB2-0-LR

Informações Adicionais
