Especificações Técnicas

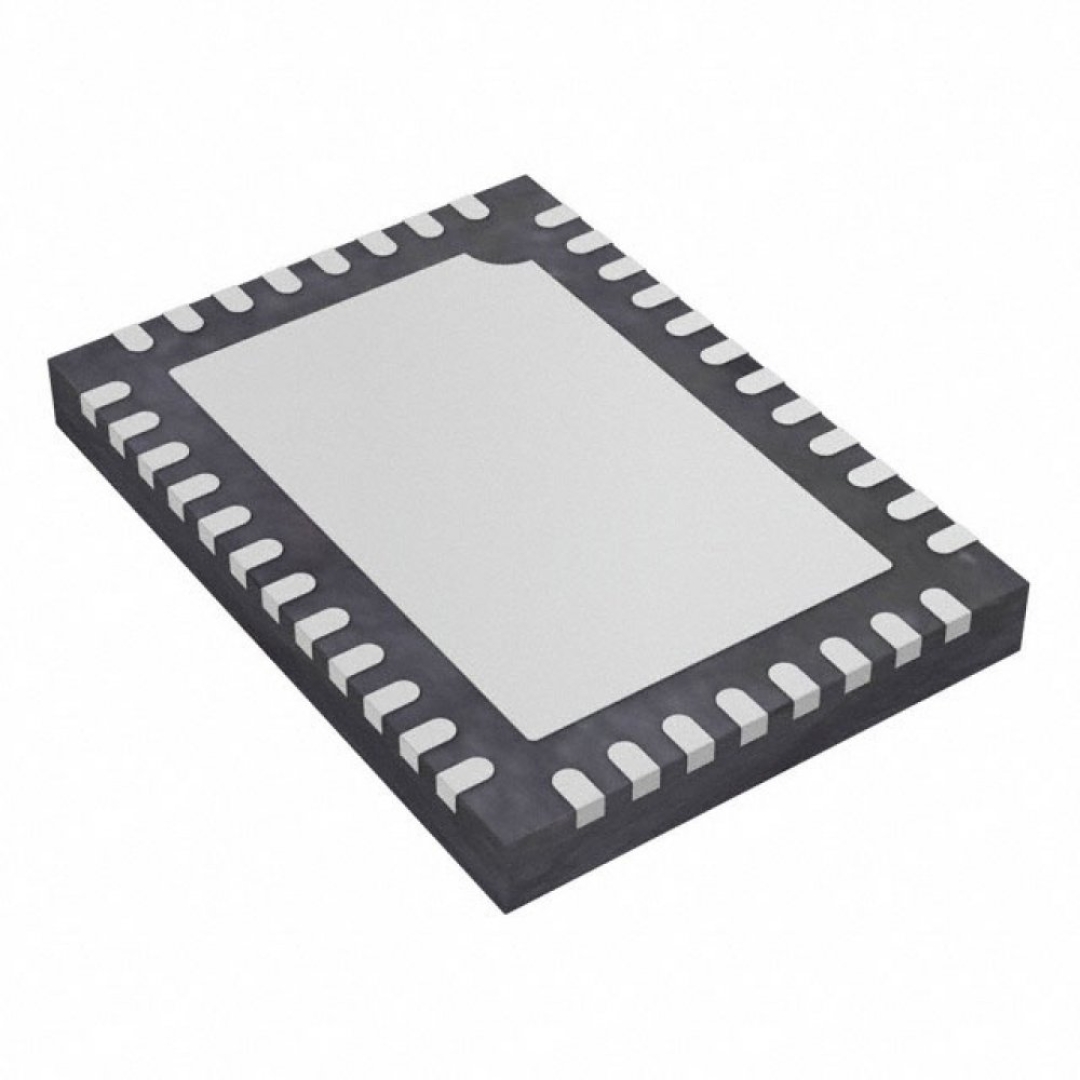

OUTROS PART NUMBERS PARA ESTE COMPONENTE: TUSB1046A-DCI TEXAS INSTRUMENTS TUSB1046A-DCI LINEAR REDRIVER CROSSPOINT SWITCHES TEXAS INSTRUMENTS TUSB1046A-DCI USB TYPE-C DP ALT MODE 10GBPS LINEAR REDRIVER CROSSPOINT SWITCHES SUPPORT USB 3.1 DATA RATES UP TO 10GBPS. THE DEVICE ALSO FEATURES 4 DISPLAYPORT LANES OF 1.4 UP TO 8.1GBPS FOR DOWNSTREAM FACING PORT. THE VESA DISPLAYPORT ALT MODE ON USB TYPE-C STANDARD VERSION 1.1 USES THE DEVICE FOR CONFIGURATIONS C, D, E, AND F. OTHER USB TYPE-C ALT MODE INTERFACES ARE SUPPORTED BY THIS PROTOCOL-AGNOSTIC LINEAR REDRIVER. THE TUSB1046A-DCI HAS AN INDUSTRIAL -40C TO 85C (TUSB1046AI-DCI) AND COMMERCIAL TEMPERATURE RANGE OF 0C TO 70C (TUSB1046-DCI). INTER-SYMBOL INTERFERENCE (ISI) DUE TO CABLE AND BOARD TRACE LOSS IS COMPENSATED THROUGH SEVERAL LEVELS OF RECEIVE LINEAR EQUALIZATION.   FEATURES USB TYPE-C CROSSPOINT SWITCH SUPPORTING USB 3.1 SSP 2 DISPLAYPORT LANES 4 DISPLAYPORT LANES USB 3.1 GEN 1/GEN 2 UP TO 10GBPS DISPLAYPORT 1.4 UP TO 8.1GBPS (HBR3) VESA DISPLAYPORT ALT MODE DFP REDRIVING CROSSPOINT SWITCH SUPPORTING C, D, E, AND F CONFIGURATIONS ULTRA-LOW-POWER ARCHITECTURE LINEAR REDRIVER WITH UP TO 14DB EQUALIZATION AUTOMATIC LFPS DE-EMPHASIS CONTROL TO MEET USB 3.1 CERTIFICATION REQUIREMENTS TRANSPARENT TO DISPLAYPORT LINK TRAINING CONFIGURATION THROUGH GPIO OR I2C INTEL PROPRIETARY DCI CAPABILITY ON USB TYPE-C FOR CLOSED CHASSIS DEBUGGING HOT-PLUG CAPABLE -40C TO 85C INDUSTRIAL TEMPERATURE RANGE (TUSB1046AI-DCI) 0C TO 70C COMMERCIAL TEMPERATURE RANGE (TUSB1046-DCI) 4MM X 6MM, 0.4MM PITCH WQFN PACKAGE TUSB46 TUSB1046A-DCI USB-C DISPLAYPORT REDRIVER SWITCH MAIORES DETALHES DE TUSB46 NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/TUSB1046A-DCI.PDF?TS=1650883797704&REF_URL=HTT TAGS DE TUSB46: TUSB46D, TUSB1046A-DCI, TUSB46, PS8802, PS8802QFN52GTR-A2, PS8802A2, PS8802-A2, PS8802 A2, USB-C HOST SWITCH WITH USB 3.1 GEN 2 RETIMER DP ALT MODE HBR3 REDRIVER, PS8802-1-F3-AX, PS8802-2-F3-AX, AP2141, AP2151FMG-7, AP2151FMG, AP2151FMG7, AP2151FMG 7, AP2151, 0.5A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH, CI PARA PORTA USB 3.1, CI DE PROTEÇAO USB-C 3.1, CI DE PROTECAO USB-C 3.1, PROTECAO USB TYPEC, PROTEÇÃO USB 3.1, POWER DISTRIBUTION INTRFCE EN ACTIVE HI 0.5A 2.7V-5.5V, CONTROLADOR USB, CONTROLADOR DE PORTA USB-C 3.1, CI DE PORTA USB-C, CIRCUITO INTEGRADO USB-C 3.1, PS8802 A3, USB-C IC, USB-C DRIVER

Informações Adicionais
