Especificações Técnicas

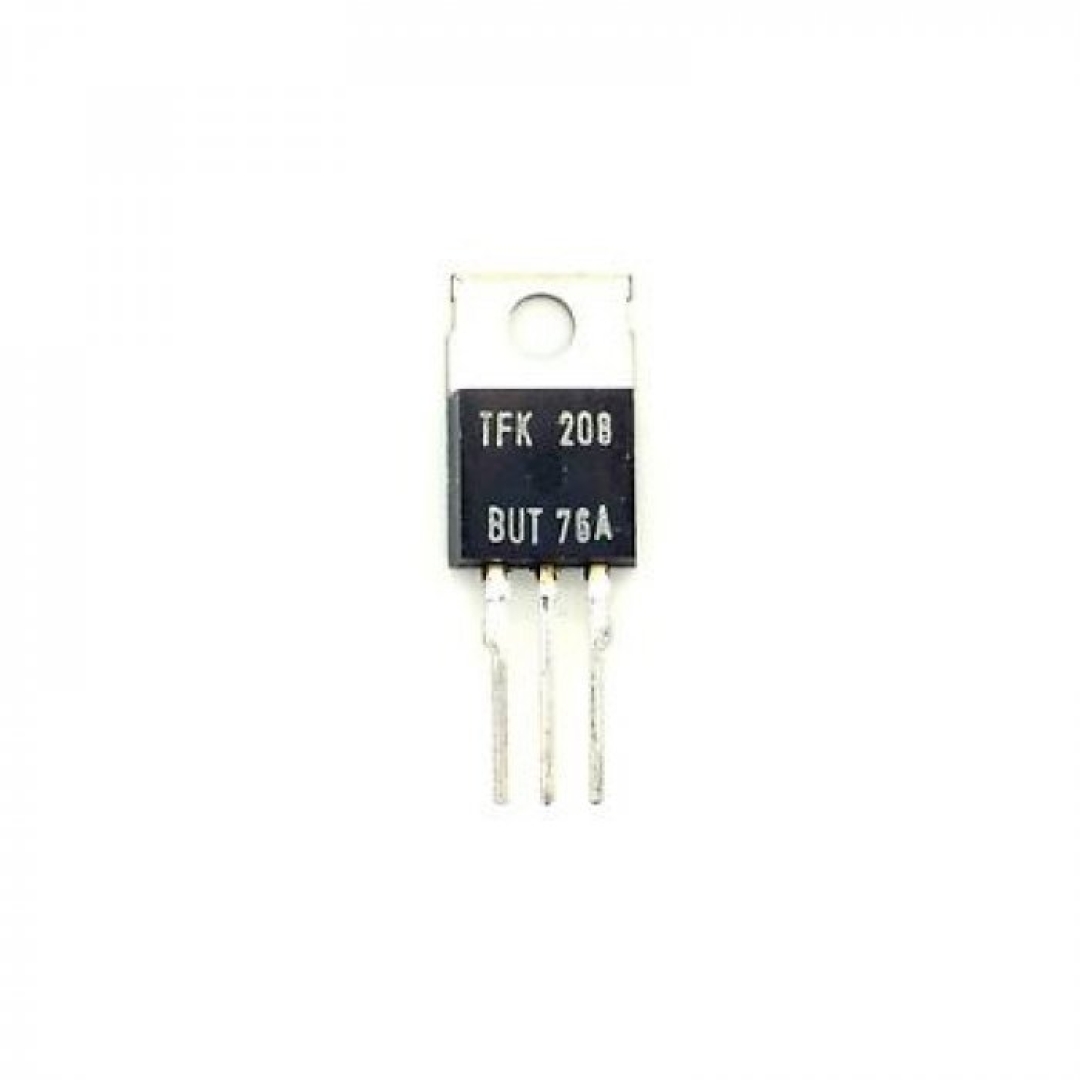

TYPE DESIGNATOR: BUT76A MATERIAL OF TRANSISTOR: SI POLARITY: NPN MAXIMUM COLLECTOR POWER DISSIPATION (PC): 110 W MAXIMUM COLLECTOR-BASE VOLTAGE |VCB|: 1000 V MAXIMUM COLLECTOR-EMITTER VOLTAGE |VCE|: 450 V MAXIMUM COLLECTOR CURRENT |IC MAX|: 12 A MAX. OPERATING JUNCTION TEMPERATURE (TJ): 150 °C TRANSITION FREQUENCY (FT): 7 MHZ COLLECTOR CAPACITANCE (CC): 150 PF FORWARD CURRENT TRANSFER RATIO (HFE), MIN: 3.2 NOISE FIGURE, DB: - PACKAGE: TO220 BUT76A TRANSISTOR POTENCIA NPN FONTE CHAVEADA TAGS DE BUT76A: BUT76A, BUT76, TELEFUNKEN, BUV56A, BUV66A, BUT12AF, ON SEMICONDUCTOR
