Especificações Técnicas

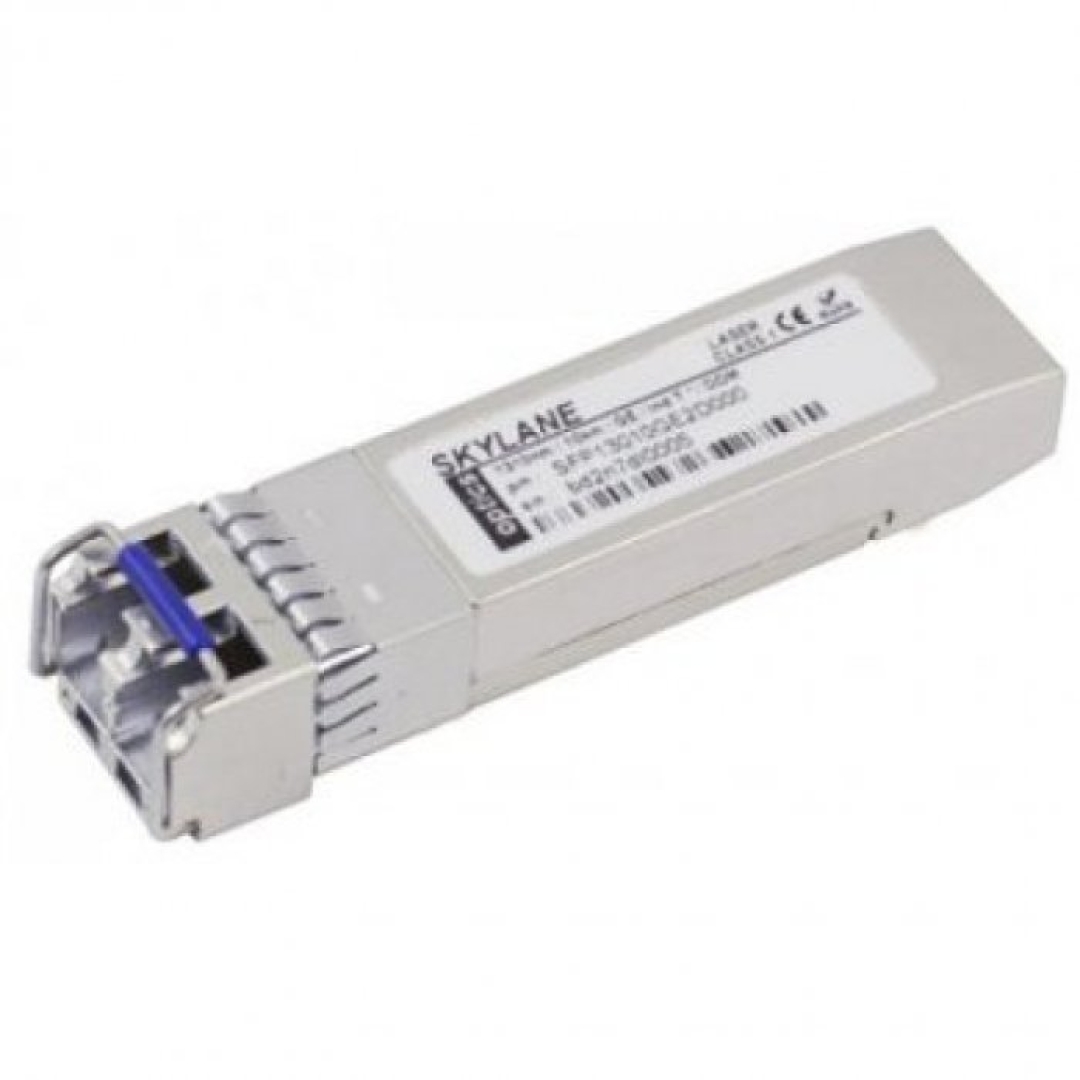

SPP1301010XD IS A HIGH PERFORMANCE TRANSCEIVER MODULE FOR UP TO 10× GIGABIT ETHERNET DATA LINKS OVER A SINGLE MODE FIBRE PAIR. THE MAXIMUM REACH1 IS 10 KM, WITH 6.2 DB END OF LIFE (EOL) POWER BUDGET. THE TRANSMITTER IS A 1310 NM DFB LASER, THE RECEIVER IS A PIN PHOTODIODE. THIS TRANSCEIVER MODULE IS COMPLIANT WITH THE SMALL FORM-FACTOR PLUGGABLE (SFP+) MULTISOURCE AGREEMENT (MSA) AND HOT PLUGGABLE. ALWAYS CONTACT SKYLANE OPTICS® COMMERCIAL AGENTS FOR COMPATIBILITY WITH DIFFERENT EQUIPMENT PLATFORMS.   • SFP+ MULTI-SOURCE AGREEMENT COMPLIANT (SFF-8431) • HOT PLUGGABLE SFP+ FOOTPRINT • SERIAL ID ALITY SUPPORTED ACCORDING TO (SFF-8472) • CLASS 1 LASER SAFETY STANDARD IEC 60825 COMPLIANT • DUAL LC CONNECTOR • 1310 NM DFB TRANSMITTER • 10 KM POINT-TO-POINT TRANSMISSION ON SINGLE MODE FIBRE • OPERATING TEMPERATURE RANGE 0°C TO 70°C OR -40°C TO 85°C • LOW POWER DISSIPATION ( • DIGITAL DIAGNOSTICS MONITORING (DDM)   OPTICAL INTERFACE   P/N SPP1301010XD WAVELENGTH [NM] 1310 OPTICAL OUTPUT POWER2 [DBM] -8.2 TO 0.5 RECEIVER SENSITIVITY3 [DBM] = -14.4 DISPERSION PENALTY [DB] 3.2 RECEIVER OVERLOAD4 [DBM] 0 POWER BUDGET2 [DB] = 6.2 SPP13010100D911 SKYLANE TRANSCEPTOR SFP+ DUPLA FIBRA 1310NM TAGS DE SPP13010100D911: SPP13010100D911, GBIC SPP13010100D911, MINI-GBIC SPP13010100D911, TRANSCEIVER SPP13010100D911, TRANSCEIVER SKYLANE SPP13010100D911, SKYLANE SPP13010100D911, SKYLANE LC, X710-DA2, INTEL X710DA2, SKYLANE OPTICS
