Especificações Técnicas

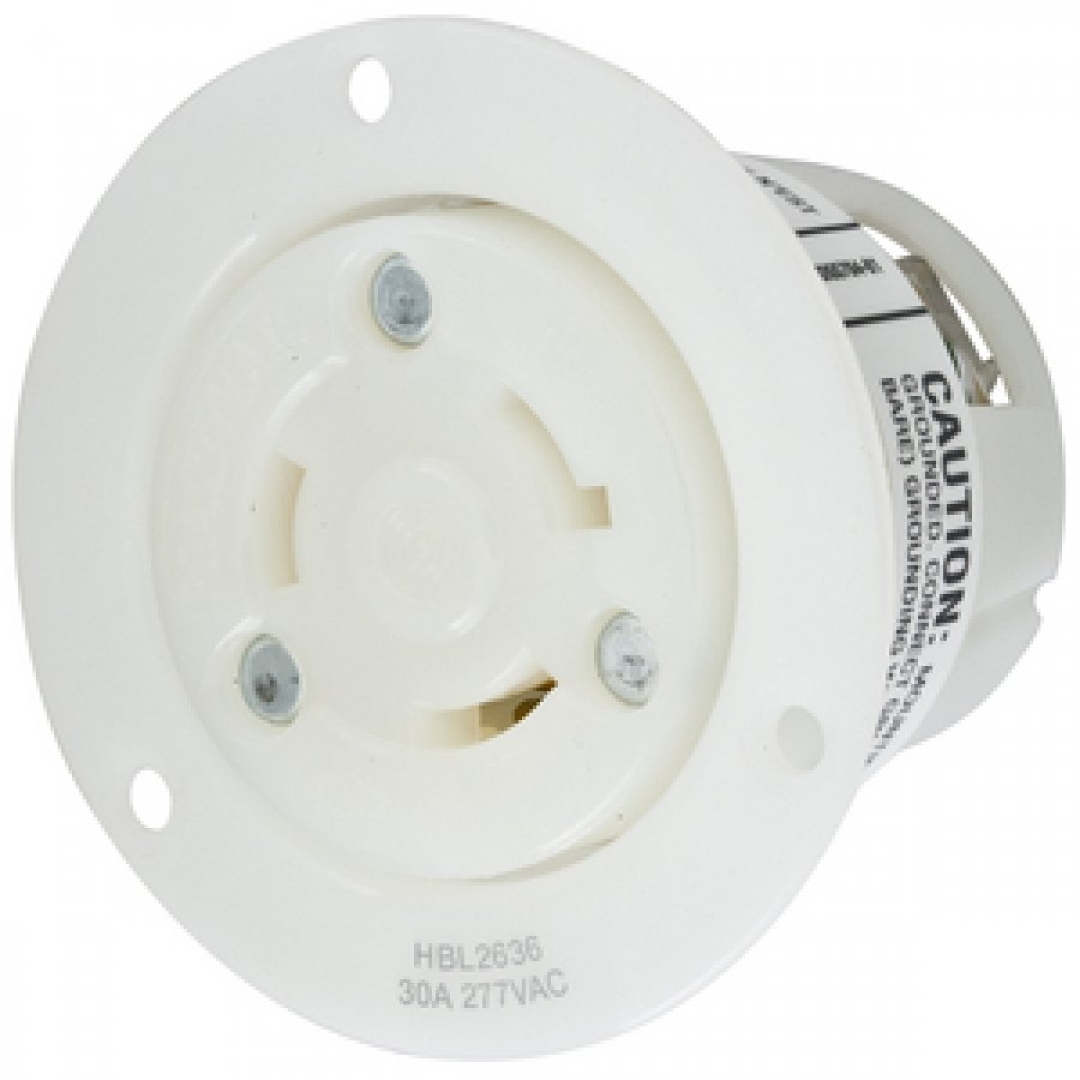

PRODUCT DETAILS GENERAL APPLICATION HEAVY DUTY INDUSTRIAL ENVIRONMENTAL CONDITIONS INDOOR DRY UNLESS PROTECTED BY ADDITIONAL MEANS HORSEPOWER - MAXIMUM 3 ITEM TYPE 30A GROUNDING INSULGRIP® FLANGED RECEPTACLE MATERIAL NYLON MATERIAL - MOUNTING HARDWARE SCREW MOUNTING NUMBER OF POLES 2-POLE OEM BRAND NAME HUBBELL WIRING DEVICE-KELLEMS OPERATING TEMPERATURE MAXIMUM CONTINUOUS 75°C AND MINIMUM -40°C WITHOUT IMPACT PERFORMANCE ELECTRICAL - CURRENT INTERRUPTING - CERTIFIED FOR CURRENT INTERRUPTING AT FULL RATED CURRENT ELECTRICAL - DIELECTRIC VOLTAGE - WITHSTANDS 2,000V MINIMUM ENVIRONMENTAL - FLAMMABILITY - V2 OR BETTER PER UL94/CSA 22.2 NO.0.17 ENVIRONMENTAL - MOISTURE RESISTANCE - IP20 SUITABILITY ENVIRONMENTAL - OPERATING TEMPERATURES - MAXIMUM CONTINUOUS 75°C, MINIMUM -40°C (W/O IMPACT) MECHANICAL - TERMINAL ACCOMMODATION - #16 AWG - #8 AWG SOLID OR STRANDED COPPER WIRE ONLY. MECHANICAL - TERMINAL IDENTIFICATION - TERMINALS IDENTIFIED IN ACCORDANCE WITH UL 498 TYPE FLANGED RECEPTACLE UPC 783585038995 DIMENSIONS DISPLAY SIZE STANDARD SIZED PRODUCT HEIGHT 2.09 IN LENGTH 2.88 IN WEIGHT 0.25 LB WIDTH 2.88 IN ELECTRICAL RATINGS AMPERAGE RATING 30 A CONNECTIVITY BACK WIRED SCREW TERMINALS CURRENT / AMPERAGE RATING 30 A CURRENT RATING 30 A DIELECTRIC STRENGTH WITHSTANDS 2,000V MINIMUM PHASE SINGLE PHASE VOLTAGE RATING 277 VAC VOLTAGE RATING DESCRIPTION 277 VAC WATTAGE 8310 W CONDUCTOR RELATED NUMBER OF WIRES 3-WIRE WIRE SIZE #16 AWG TO #8 AWG CERTIFICATIONS AND COMPLIANCE INDUSTRY STANDARD(S) CERTIFIED TO CSA C22.2 NO.42 FED.SPEC. W-C-596 LISTED TO UL 498 NEMA RATING L7-30R HBL2636 TOMADA HUBBELL NEMA L7-30R 30A 277V AC TAGS DE HBL2636: HBL2636, TOMADA NEMA, TOMADA POLARIZADA APC, HUBBELL HBL2636, HUBBELL HBL 2636 30A 277V, TOMADA NEMA HUBBELL, TOMADA L7-30R, TOMADA 277V AC 30A L7-30R

Informações Adicionais
