Especificações Técnicas

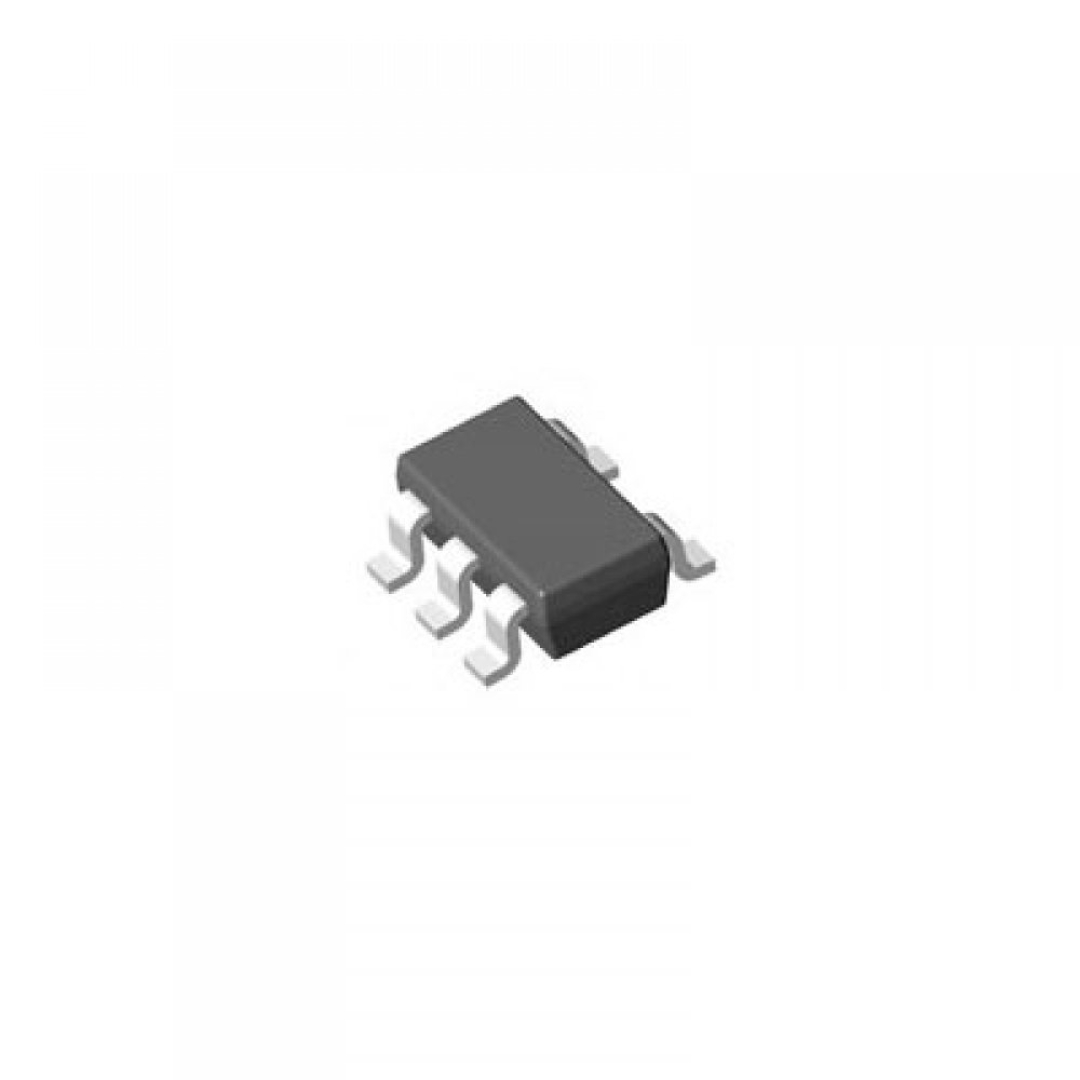

THE NC7SZ86 IS A SINGLE TWO-INPUT EXCLUSIVE-OR GATE FROM ON SEMICONDUCTOR-S ULTRA-HIGH SPEED (UHS) SERIES OF TINYLOGIC®. THE DEVICE IS FABRICATED WITH ADVANCED CMOS TECHNOLOGY TO ACHIEVE ULTRA-HIGH SPEED WITH HIGH OUTPUT DRIVE MAINTAINING LOW STATIC POWER DISSIPATION OVER A BROAD VCC OPERATING RANGE. THE DEVICE IS SPECIFIED TO OPERATE OVER THE 1.65V TO 5.5V VCC OPERATING RANGE. THE INPUTS AND OUTPUT ARE HIGH IMPEDANCE WHEN VCC IS 0V. INPUTS TOLERATE VOLTAGES UP TO 6V, INDEPENDENT OF VCC OPERATING VOLTAGE.     FEATURES - SPACE SAVING SOT23 OR SC70 5-LEAD PACKAGE - ULTRA HIGH SPEED; TPD 2.9 NS TYP INTO 50 PF AT 5V VCC - HIGH OUTPUT DRIVE; ± 24 MA AT 3V VCC - BROAD VCC OPERATING RANGE; 1.8V TO 5.5V - MATCHES THE PERFORMANCE OF LCX WHEN OPERATED AT 3.3V - POWER DOWN HIGH IMPEDANCE INPUTS/OUTPUT - OVERVOLTAGE TOLERANT INPUTS FACILITATE 5V TO 3V TRANSLATION - PATENTED NOISE/EMI REDUCTION CIRCUITRY IMPLEMENTED 7Z86 TINYLOGIC UHS 2 INPUT EXCLUSIVE OR GATE SOT23-5 MAIORES DETALHES DE 7Z86 NO SITE DO FABRICANTE: HTTPS://WWW.ONSEMI.COM/PRODUCTS/TIMING-LOGIC-MEMORY/STANDARD-LOGIC/LOGIC-GATES/N TAGS DE 7Z86: NC7SZ86, 7Z02B, 7Z04F, 7Z258, 7Z26D, 7Z32B, 7Z66, 7Z86, 7S00, NC7SZ86M5X, Z86, CI 5 PINOS Z86, CI 5 PINOS 7Z86, NC7SZ86P5

Informações Adicionais
