Especificações Técnicas

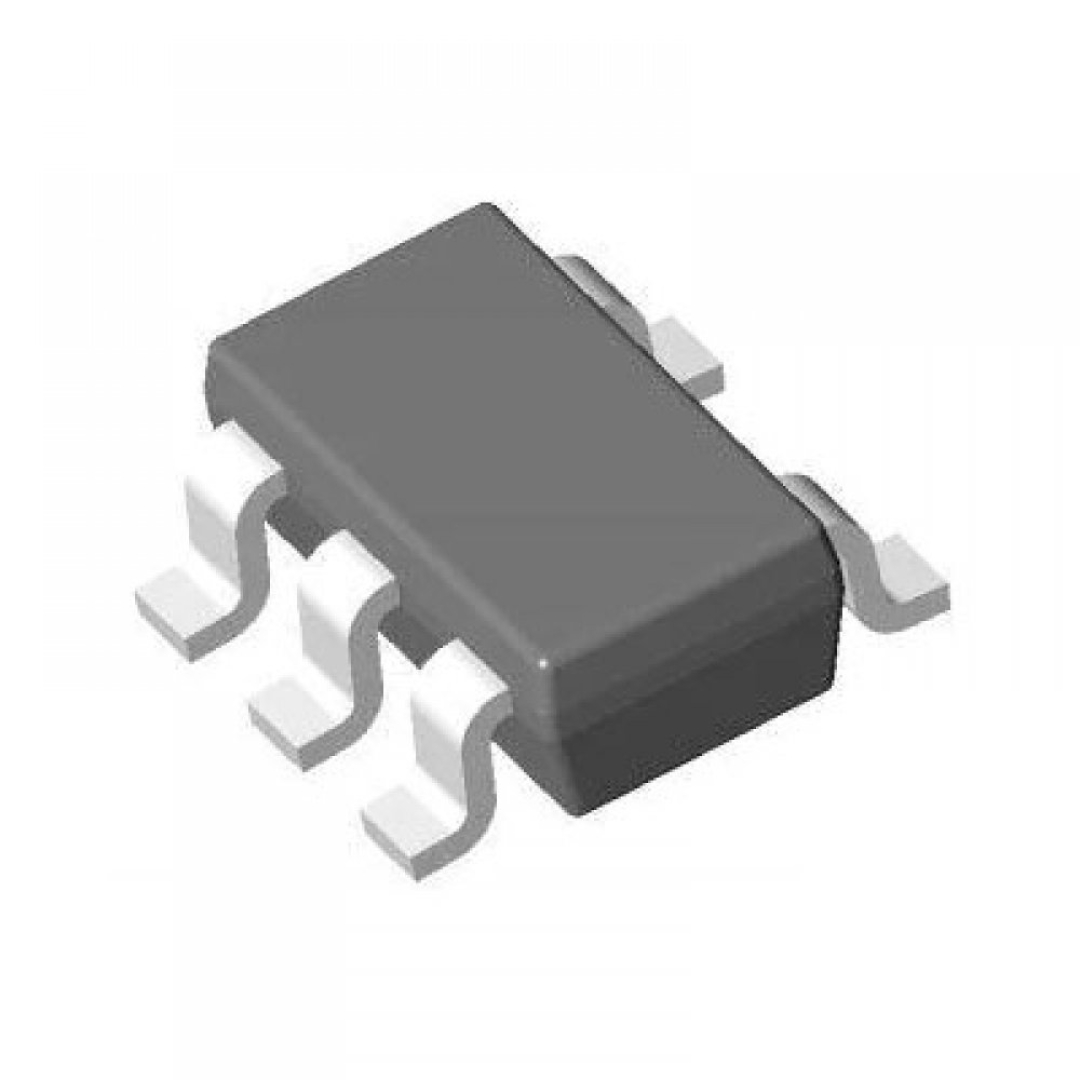

OUTROS NUMEROS DE PEÇA PARA ESTE COMPONENTE: NC7ST08, T08 DESCRIPTION THE NC7ST08 IS A SINGLE 2 INPUT HIGH PERFORMANCE CMOS AND GATE, WITH TTL-COMPATIBLE INPUTS. ADVANCED SILICON GATE CMOS FABRICATION ASSURES HIGH SPEED AND LOW POWER CIRCUIT OPERATION. ESD PROTECTION DIODES INHERENTLY GUARD BOTH INPUTS AND OUTPUT WITH RESPECT TO THE VCC AND GND RAILS. HIGH GAIN CIRCUITRY OFFERS HIGH NOISE IMMUNITY AND REDUCED SENSITIVITY TO INPUT EDGE RATE. THE TTL-COMPATIBLE INPUTS FACILITATE TTL TO NMOS / CMOS INTERFACING. DEVICE PERFORMANCE IS SIMILAR TO MM74HCT BUT WITH 1/2 THE OUTPUT CURRENT DRIVE OF HC / HCT.   FEATURES - SPACE SAVING SOT23-5, SC-74A AND SC-88A 5-LEAD PACKAGE - ULTRA SMALL MICROPAK- LEADLESS PACKAGE - HIGH SPEED: TPD = 6 NS (TYP), VCC = 5 V, CL = 15 PF, TA = 25°C - LOW QUIESCENT POWER: ICC - BALANCED OUTPUT DRIVE: 2 MA IOL, -2 MA IOH - TTL-COMPATIBLE INPUTS - THESE DEVICES ARE PB-FREE, HALOGEN FREE/BFR FREE AND ARE ROHS COMPLIANT     MANUFACTURER: ONSEMI PRODUCT CATEGORY: LOGIC GATES     PRODUCT: SINGLE-FUNCTION GATE LOGIC FUNCTION: AND LOGIC FAMILY: NC7ST NUMBER OF GATES: 1 GATE NUMBER OF INPUT LINES: 2 INPUT NUMBER OF OUTPUT LINES: 1 OUTPUT HIGH LEVEL OUTPUT CURRENT: - 2 MA LOW LEVEL OUTPUT CURRENT: 2 MA PROPAGATION DELAY TIME: 27 NS SUPPLY VOLTAGE - MAX: 5.5 V SUPPLY VOLTAGE - MIN: 4.5 V MINIMUM OPERATING TEMPERATURE: - 40 C MAXIMUM OPERATING TEMPERATURE: 85 C MOUNTING STYLE: SMD/SMT PACKAGE / CASE: SC-70 PACKAGING: REEL BRAND: ONSEMI / FAIRCHILD FUNCTION: GATE HEIGHT: 1 MM LENGTH: 2 MM LOGIC TYPE: 2 INPUT AND OPERATING SUPPLY VOLTAGE: 5V PRODUCT TYPE: LOGIC GATES SERIES: NC7ST08 NC7ST08P5X TINYLOGIC HST 2 INPUT AND GATE SOT23-5 MAIORES DETALHES DE NC7ST08P5X NO SITE DO FABRICANTE: HTTPS://WWW.ONSEMI.COM/PDF/DATASHEET/NC7ST08-D.PDF TAGS DE NC7ST08P5X: NC7ST08P5X, NC7ST08, NC7ST08P, IC AND GATE, CI PORTA AND, PORTA AND, MM74HCT, NC7ST, PORTA LOGICA AND, IC T08, CI T08, CI MARCAÇAO T08, CI MARK T08, IC MARK T08, CI 5 TERMINAIS T08

Informações Adicionais
