Especificações Técnicas

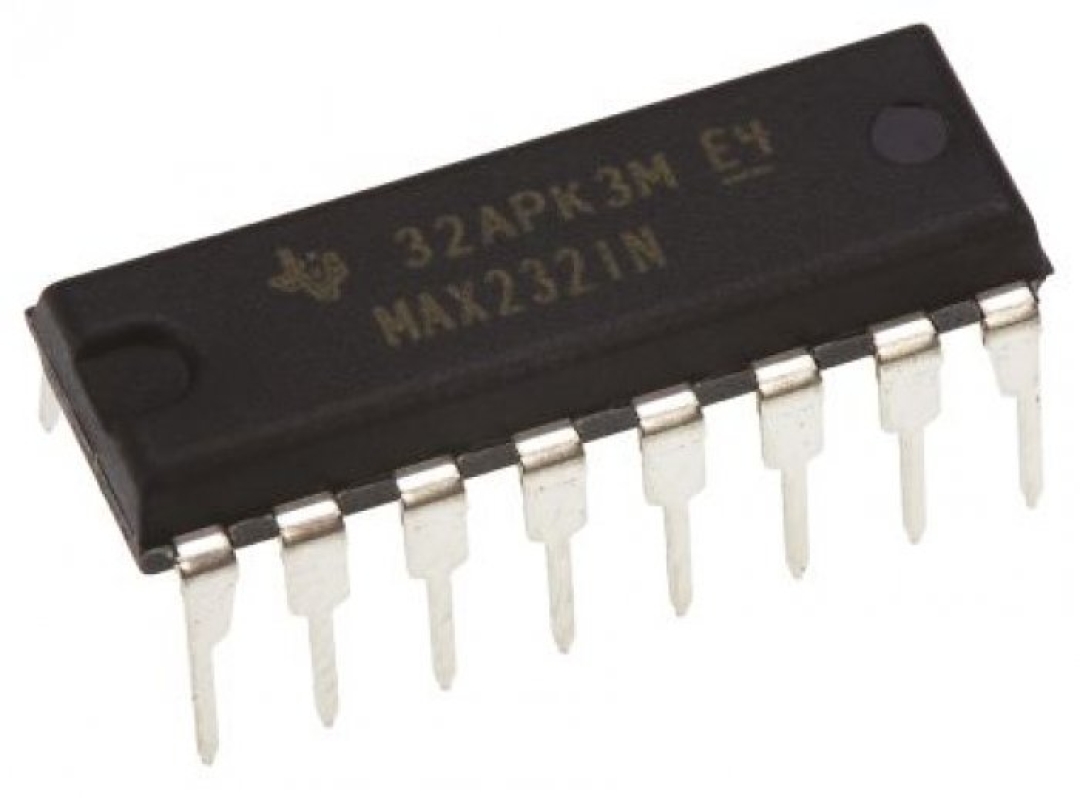

RS-232 LINE TRANSCEIVERS, DUAL, TEXAS INSTRUMENTS A RANGE OF RS-232 LINE TRANSCEIVERS WHICH MEET OR EXCEED THE REQUIREMENTS OF THE TIA/EIA-232-F AND ITU V.28 STANDARDS. THESE DEVICES GENERALLY INCLUDE ESD PROTECTION OF UP TO ±15 KV (HUMAN-BODY MODEL), ±8 KV (CONTACT DISCHARGE) AND MOST INCORPORATE CHARGE PUMP CIRCUITRY TO ALLOW OPERATION FROM SINGLE 3 V TO 5.5 V SUPPLIES. DUAL TRANSCEIVERS EACH CONTAIN TWO LINE DRIVERS AND TWO LINE RECEIVERS AND ARE AVAILABLE WITH OPERATING SPEEDS OF UP TO 1 MBPS.   FUNCTION: TRANSCEIVER   DATA RATE: 120 KB/S   NUMBER OF DRIVERS: 2 DRIVER   NUMBER OF RECEIVERS: 2 RECEIVER   DUPLEX: FULL DUPLEX   SUPPLY VOLTAGE - MAX: 5.5 V   OPERATING SUPPLY VOLTAGE: 5 V   SUPPLY VOLTAGE - MIN: 4.5 V   OPERATING SUPPLY CURRENT: 10 MA   MAXIMUM OPERATING TEMPERATURE: 85 C   MINIMUM OPERATING TEMPERATURE: - 40 C   MOUNTING STYLE: THROUGH HOLE   PACKAGE / CASE: PDIP-16   PACKAGING: TUBE         BRAND: TEXAS INSTRUMENTS MAX232IN TEXAS INSTRUMENTS RS232 DRIVER DUAL FULL DUPLEX MAIORES DETALHES DE MAX232IN NO SITE DO FABRICANTE: HTTP://WWW.TI.COM/LIT/DS/SYMLINK/MAX232.PDF TAGS DE MAX232IN: 16-PIN PDIP, MAX232IN, MAX232, DRIVER RS232, MAXIM232
