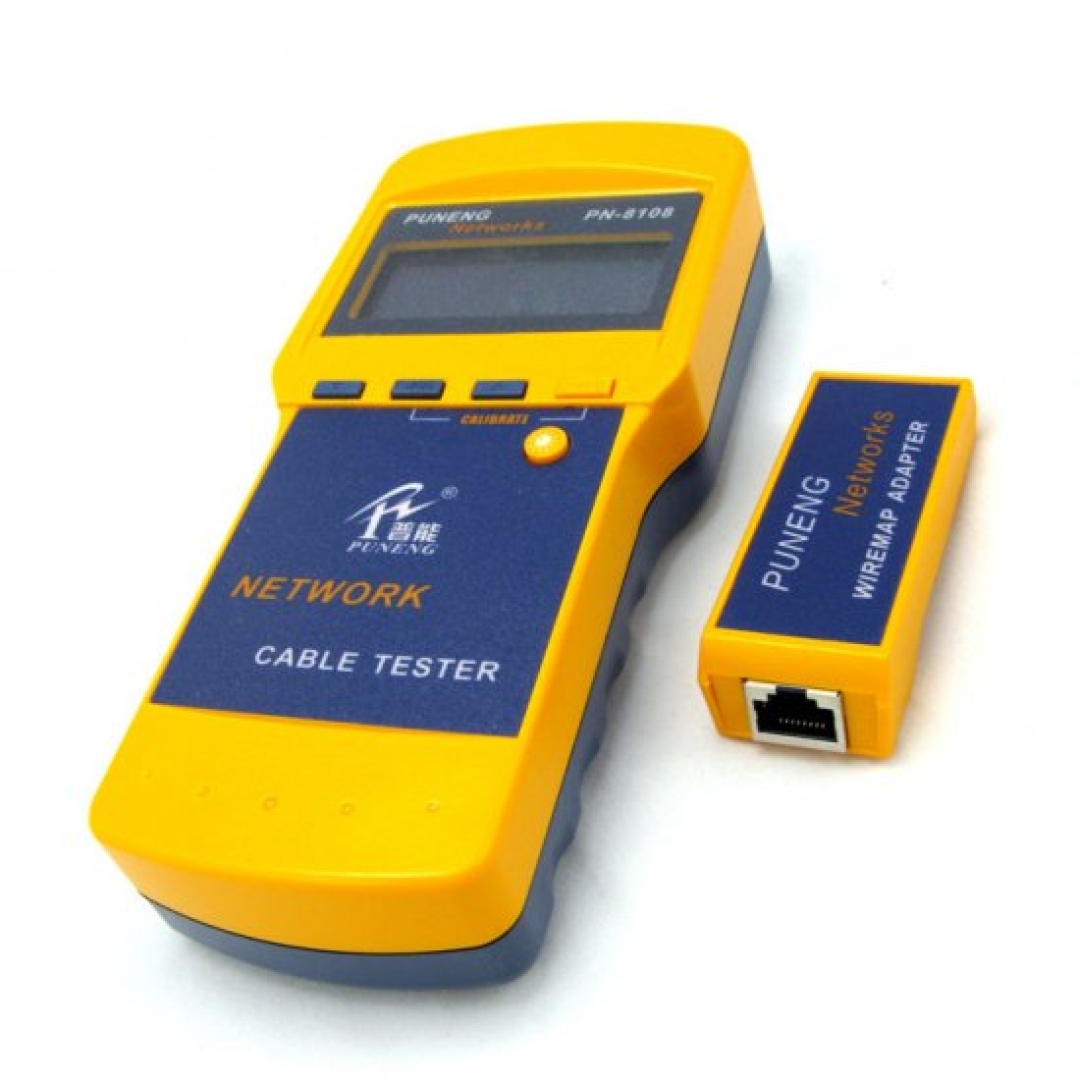

A NETWORK CABLE TESTER CAN IDENTIFY IF THE WIRES ARE PAIRED CORRECTLY. IT CAN ALSO SHOW IF THERE IS A BREAK IN THE INSULATION, A SITUATION WHICH ALLOWS CROSSTALK BETWEEN TWO WIRES THAT SHOULD NOT BE CONNECTED. THE TESTER CAN ALSO TELL WHETHER THE CABLE HAS THE PROPER LEVEL OF RESISTANCE. GENERALLY SPEAKING, A NETWORK CABLE TESTER IS A DEVICE THAT TEST FOR DIFFERENT TYPES OF FAULTS IN CABLES LIKE CONTINUITY, DISLOCATION, OPEN CIRCUIT, SHORT CIRCUIT, CABLE PAIRING FAULTS, OR INDICATIONS LIKE SHIELDING INDICATION, STRAIGHT CABLE/ CROSS OVER CABLE INDICATION, ETC. THE PN-8108 MULTI-FUNCTION NETWORK CABLE TESTER IS VERY EASY TO OPERATE FOR PREVENT AND SOLVE CABLE INSTALLATION PROBLEM. IT CAN WIDELY BE USED FOR A NUMBER OF APPLICATIONS SUCH AS CABLE CONNECTION SEQUENCE, LENGTH, USER JUMPER AND CABLE CONNECTION CONTINUITY AND DETERMINE ANY OPEN CIRCUIT, SHORT CIRCUIT, JUMPER OR CROSS-TALK INTERFERENCE. TECHNICAL SPECIFICATION OVERALL DIMENSION: 180 X 80 X 40 MM POWER SUPPLY: 4X 1.5V AA BATTERIES WITH POWER CONSUMPTION 16 MA DISPLAY: SPECIAL 4 X 16 CHARACTER BIG SCREEN LCD LATTICE (VALID VISUAL FIELD 61.6 X 25.2 MM) TYPE OF TEST CABLE: STP/ UTP TWIN TWISTED CABLE, COAXIAL CABLE, TELEPHONE LINE TEST PORT: TESTER RJ45 MASTER PORT (M), TESTER LOOPBACK RJ45 PORT (L), FAR-END RECOGNIZER RJ45 (R). THE EXTRA BNC AND RJ11 CONVERTERS ARE USED TO MEASURE AND CHECK THE CONTINUITY OF COAXIAL CABLE AND TELEPHONE LINE. LENGTH MEASUREMENT OF TWIN TWISTED CABLE: SCOPE: 1350 M (31200 FT) CALIBRATION ACCURACY: 3% (+/-0.5M OR +/- 1.5FT) (CALIBRATING CALBE > 5M) SHIPMENT ACCURACY: 5% (+/-0.5M OR +/- 1.5FT). (AMP&T CLASS 5 CABLE) DISPLAY: METERS OR FOOT. LENGTH CALIBRATION: USER CAN SET CALIBRATION FACTOR BY HIMSELF WITH A GIVEN LENGTH CABLE. THE LENGTH OF CALIBRATING CABLE IS MORE THAN 5M. WIRE SEQUENCE AND LOCATING CABLE ERROR: CHECK ERRORS SUCH AS OPEN CIRCUIT, SHORT CIRCUIT, REVERSE CONNECTION, CROSS-OVER OR CROSS-TALK INTERFERENCE. LOCATING CABLE: 8 FAR-END PASSIVE TEST JACK AUTOMATIC TIME-DELAY SHUT OFF TIME: THE TESTER DOES NOT OPERATE FOR 30 MINUTES. PACKAGE INCLUDE: 1 X CABLE TESTER 1 X REMOTE 1 X USER MANUAL PN-8108 PUNENG TESTADOR DE CABOS DE REDE CAT5E/CAT6E TAGS DE PN-8108: PN-F, PITS-8108, KIT LOCALIZADOR, NF388, MEASURE CABLE LENGTH, SC8108, PN-8108A, PN8108A, PN8108, NF-8208, LAN PHONE TESTER WIRE TRACKER, MULTIFUNCTION NETWORK CABLE, INNCT-PN-8108, PN 8108, PN8108, PN-8108, SC8108, SC-8108, SC 8108, SC8108 A, SC8108-A, SC8108A, TESTADOR DE REDE, NETWORKIN TESTER, LAN TEST, NETWORK TOOL, LAN TOOL, FERRAMENTAS DE REDE, FERRAMENTAS PARA REDE, TESTADORES DE REDE, LAN TESTER, PUNENG
