Especificações Técnicas

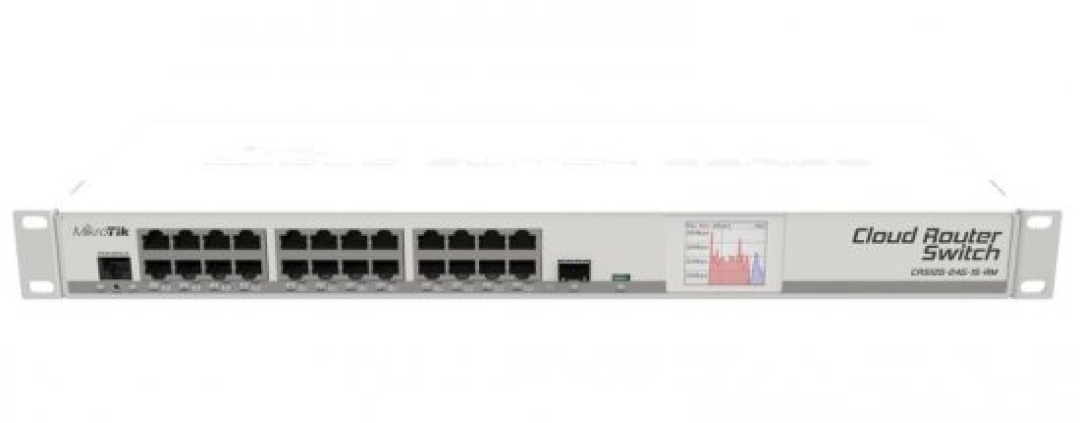

CLOUD ROUTER SWITCH IS OUR NEW SMART SWITCH SERIES. IT COMBINES THE BEST FEATURES OF A FULLY AL ROUTER AND A LAYER 3 SWITCH, IS POWERED BY THE FAMILIAR ROUTEROS. ALL THE SPECIFIC SWITCH CONFIGURATION OPTIONS ARE AVAILABLE IN A SPECIAL SWITCH MENU, BUT IF YOU WANT, PORTS CAN BE REMOVED FROM THE SWITCH CONFIGURATION, AND USED FOR ROUTING PURPOSES. CHOOSE PORTS FOR WIRE SPEED SWITCHING, OR FOR ROUTING PURPOSES. PERFECT SOHO GATEWAY ROUTER, SWITCH, ALL IN ONE BOX: ETHERNET, FIBER, OR 4G (WITH OPTIONAL USB MODEM) GATEWAY CONNECTION TO INTERNET ROUTEROS GATEWAY/FIREWALL/VPN ROUTER WITH PASSIVE COOLING UP TO TWENTY-FIVE GIGABIT SWITCH PORTS (1XSFP AND 24XRJ45) SPECIFICATIONS: DETAILS PRODUCT CODE CRS125-24G-1S-RM CPU NOMINAL FREQUENCY 600 MHZ SFP DDMI YES CPU CORE COUNT 1 ARCHITECTURE MIPS-BE SIZE OF RAM 128 MB 10/100 ETHERNET PORTS 0 10/100/1000 ETHERNET PORTS 24 MINIPCI SLOTS 0 MINIPCI-E SLOTS 0 NUMBER OF USB PORTS 1 POWER JACK 1 SUPPORTED INPUT VOLTAGE 8 V 28 V POE OUT NO POE IN YES VOLTAGE MONITOR YES CPU TEMPERATURE MONITOR NO PCB TEMPERATURE MONITOR YES DIMENSIONS 443X142X44MM OPERATING SYSTEM ROUTEROS OPERATING TEMPERATURE RANGE -35C TO 65C TESTED LICENSE LEVEL 5 ANTENNA GAIN DBI NO CURRENT MONITOR NO CPU AR9344-DC3A-R MAX POWER CONSUMPTION 15W SFP PORTS 1 SFP PORTS 0 USB SLOT TYPE MICROUSB TYPE AB NUMBER OF CHAINS 0 SERIAL PORT RJ45 SWITCHING RESULTS: CRS125-24G-1S-RM MODE CONFIGURATION 64 BYTE 512 BYTE 1518 BYTE KPPS MBPS KPPS MBPS KPPS MBPS SWITCHING NON BLOCKING LAYER 2 THROUGHPUT 37,202.4 19,047.6 5,874.1 24,060.2 2,031.9 24,674.9 SWITCHING NON BLOCKING LAYER 2 CAPACITY 37,202.4 38,095.2 5,874.1 48,120.3 2,031.9 49,349.8 SWITCHING NON BLOCKING LAYER 1 THROUGHPUT 37,202.4 25,000.0 5,874.1 25,000.0 2,031.9 25,000.0 SWITCHING NON BLOCKING LAYER 1 CAPACITY 37,202.4 50,000.0 5,874.1 50,000.0 2,031.9 50,000.0 PERFORMANCE TEST RESULTS: CRS125-24G-1S-RM AR9344 1G ALL PORT TEST MODE CONFIGURATION 1518 BYTE 512 BYTE 64 BYTE KPPS MBPS KPPS MBPS KPPS MBPS BRIDGING NONE (FAST PATH) 81.0 983.7 232.0 950.3 269.6 138.0 BRIDGING 25 BRIDGE FILTER RULES 81.0 983.7 86.0 352.3 87.6 44.9 ROUTING NONE (FAST PATH) 81.0 983.7 210.0 860.2 226.9 116.2 ROUTING 25 SIMPLE QUEUES 81.0 983.7 103.9 425.6 106.6 54.6 ROUTING 25 IP FILTER RULES 56.8 689.8 59.6 244.1 60.5 31.0 CRS125-24G-1S-RM SWITCH ROUTER MIKROTIK 24 PORTAS GIGABIT TAGS DE CRS125-24G-1S-RM: SWITCH MIKROTIK 24 PORTAS, MIKROTIK SWITCH 24 PORTAS, SOHO GATEWAY 600MHZ, CRS125-24G-1S-RM, CRS125 24G1SRM, SÉRIE CRS 125, 24 PORTAS 10/100MBPS VLAN, MIKROTIK CLOUD ROUTER SWITCH CRS125, CRS125 24G 1S RM

Informações Adicionais
