Especificações Técnicas

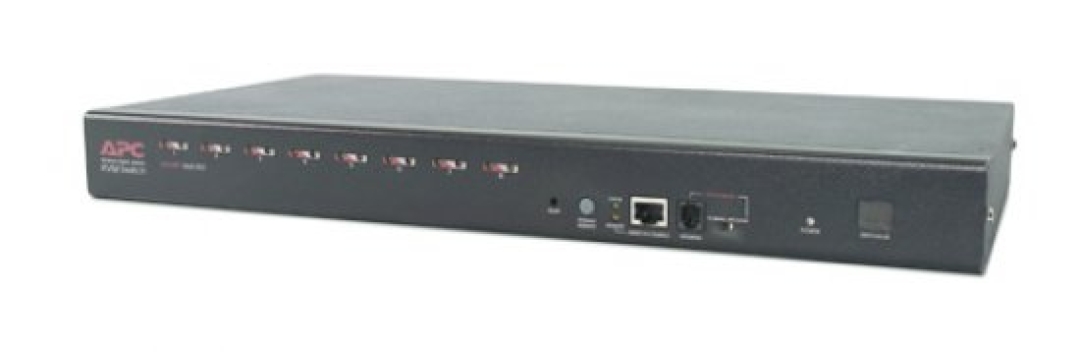

  GENERAL INFORMATION PRODUCT TYPE : ANALOG KVM SWITCH MANUFACTURER PART NUMBER : AP5201 MANUFACTURER WEBSITE ADDRESS : WWW.APC.COM MARKETING INFORMATION : THE KVM SWITCH CAN CONNECT UP TO 32 SWITCHES TO PROVIDE DIRECT CONTROL OF 16 COMPUTERS OR CONTROLOF UP TO 512 COMPUTERS THROUGH SERIAL CONNECTIONS, USING ONLY ONE KEYBOARD, MONITOR, AND MOUSE.AUTOMATIC SCANNING FEATURE, CASCADING CAPABILITIES, HOT PLUGGABLE OPERATION, KEEP ALIVE , MICROSOFT INTELLIMOUSE SUPPORT, OCCUPIES 1U OF RACK SPACE, ON-SCREEN DISPLAY (OSD) CAPABILITY, PC MOUSE/KEYBOARD/VIDEO SUPPORT, POWDER COAT PAINT FINISH, STATUS INDICATOR LEDS MANUFACTURER : AMERICAN POWER CONVERSION CORP PRODUCT NAME : 8 PORT MULTI-PLATFORM ANALOG KVM SWITCH BRAND NAME : APC TECHNICAL INFORMATION NUMBER OF COMPUTERS : 8 GRAPHICS RESOLUTION : 1920 X 1440 SCAN INTERVALS : 1 TO 255 SECONDS NUMBER OF USERS : 1 X LOCAL USER VIDEO SIGNALS : VGA SVGA MULTISYNC INTERFACES/PORTS COMPUTER PORTS : 8 X SPDB-15 FEMALE OTHER PORTS : 1 X RJ-45 NETWORK 1 X RJ-11 FLASH-UPGRADE 1 X 25-PIN DB-25 FEMALE DAISY-CHAIN OUT 1 X 25-PIN DB-25 MALE DAISY-CHAIN IN USER/CONSOLE PORTS : 1 X 15-PIN HD-15 FEMALE VGA/SVGA 1 X MINI-DIN (PS/2) FEMALE KEYBOARD 1 X MINI-DIN (PS/2) FEMALE MOUSE POWER DESCRIPTION INPUT VOLTAGE : 100 V AC TO 240 V AC 9 V DC FREQUENCY : 50 HZ OR 60 HZ POWER CONSUMPTION : 8 W MAXIMUM ENVIRONMENTAL CONDITIONS HUMIDITY : 0 TO 80% RELATIVE HUMIDITY TEMPERATURE : 32 °F (0.0 °C) TO 122 °F (50.0 °C) OPERATING -4 °F (-20.0 °C) TO 140 °F (60.0 °C) STORAGE PHYSICAL CHARACTERISTICS DIMENSIONS : 1.75 HEIGHT X 17 WIDTH X 8.25 DEPTH SHIPPING DIMENSIONS : 5 HEIGHT X 20 WIDTH X 13 DEPTH SHIPPING WEIGHT : 11 LB WEIGHT : 10 LB COLOR : BLACK FORM FACTOR : 1U 19 RACK-MOUNTABLE MISCELLANEOUS ADDITIONAL INFORMATION : THE KEEP-ALIVE FEATURE ASSURES ALL THE KEYBOARD AND MOUSE CONNECTIONS WORK PROPERLY IF THE KVM SWITCH LOSES POWER TEMPORARILY. AUTO-SENSING OF KVM STATION POSITIONS FOR SERIALLY-CONNECTED INSTALLATIONS, WHICH ARE INDICATED ON THE FRONT PANEL LED. PORT NAMES AUTOMATICALLY RECONFIGURE WHEN THE STATION SEQUENCE IS CHANGED. NO SOFTWARE IS REQUIRED; SELECT A COMPUTER BY USING THE ON-SCREEN DISPLAY (OSD) MENU OR HOT KEY COMBINATION. AUTOSCAN OFFERS MONITORING OF CONNECTED COMPUTERS. PACKAGE CONTENTS : 1 X KVM SWITCH AP5201 (8 PORT) 1 X CONFIGURATION CABLE 1 X L5-15 TO IEC POWER CABLE 2 X BRACKETS FOR A 19-INCH ENCLOSURE 1 X INSTALLATION MANUAL 1 X KVM SWITCH UTILITY CD 1 X WARRANTY CARD COMPATIBILITY : MICROSOFT INTELLIMOUSE MICROSOFT INTELLIMOUSE EXPLORER LOGITECH FIRSTMOUSE PLATFORM SUPPORT : PC CERTIFICATIONS E STANDARDS : FCC PART 15 CLASS A ICES CLASS A: CANADIAN ICES-003 VCCI CLASS A AS/NZS 3548 (C-TICK) CLASS A ICES-003 IEC 60950 UL 60950 SYSTEM REQUIREMENTS : CONSOLE: VGA, SVGA, OR MULTISYNC MONITOR CAPABLE OF THE HIGHEST RESOLUTION THAT YOU PLAN TO USE ON ANY COMPUTER IN THE INSTALLATION PS/2-STYLE MOUSE PS/2-STYLE KEYBOARD COMPUTER: VGA, SVGA OR MULTISYNC CARD 6-PIN MINI-DIN (PS/2 STYLE) MOUSE PORT (THE KVM SWITCH DOES NOT SUPPORT SERIAL MICE. YOU CANNOT USE SERIAL-TO-PS/2 ADAPTERS WITH THE CABLES) KEYBOARD PORT: 6-PIN MINI-DIN (PS/2 STYLE) KEYBOARD PORT WITH 5VDC ON PIN 4 AND GROUND ON PIN 3 5-PIN DIN (AT STYLE) KEYBOARD PORT WITH 5VDC ON PIN 5 AND GROUND ON PIN 4 IF YOUR COMPUTER USES AN AT-STYLE KEYBOARD SOCKET, PURCHASE A PS/2-TO-AT KEYBOARD ADAPTER TO PLUG THE CABLE INTO THE KEYBOARD PORT ON THE COMPUTER WARRANTY PARTS WARRANTY/LABOR : 2 YEAR STANDARD WARRANTY : 2 YEAR AP5201 SWITCH KVM APC 8 PORTAS MULTI-PLATAFORMA MAIORES DETALHES DE AP5201 NO SITE DO FABRICANTE: HTTP://WWW.APC.COM/RESOURCE/INCLUDE/TECHSPEC_INDEX.CFM?BASE_SKU=AP5201 TAGS DE AP5201: AP5717, AP5015, AP5017, KVM-440, AP5201, 41000, AR3100, KVM LCD, KVM DE VÍDEO, KVM DE VIDEO, VIDEO KVM, KVM VIDEO, KVM VÍDEO, AP5250, AP5253, LCD KVM, KVM LCD, SWITCH
