Especificações Técnicas

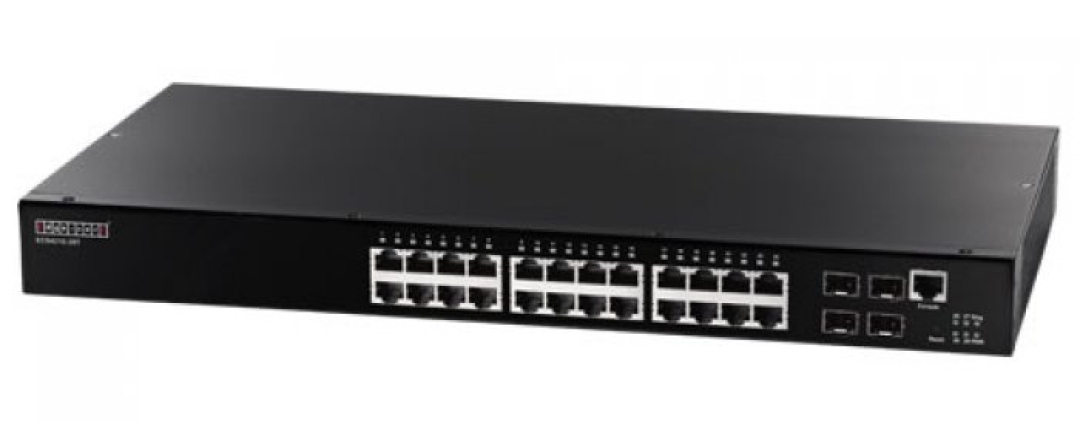

THE ECS2100 SERIES CAN BE DEPLOYED IN DIFFERENT TARGET NETWORK TOPOLOGIES, FROM SMALL TO LARGE. BESIDES POWERFUL SOFTWARE FEATURES, THE SWITCHES PROVIDE A COMPLETE SOLUTION.    THE ECS2100 SERIES SUPPORTS 10/100/1000BASE-T PORTS, WITH EACH SWITCH SUPPORTING 2 OR 4 GIGABIT SFP PORTS.    THE ECS2100 SUPPORTS L3 STATIC ROUTING. THE ECS2100 INCLUDES GREEN-SAVING TECHNOLOGIES (IEEE 802.3AZ AND GREEN-ETHERNET). USING THE ENERGY EFFICIENT ETHERNET STANDARD, THE SWITCH AUTOMATICALLY DECREASES POWER USAGE WHEN NETWORK TRAFFIC IS LOW.   SPECIFICATIONS   GENERAL    DEVICE TYPE:  SWITCH 28 PORTS SMART    ENCLOSURE TYPE:  RACK-MOUNTABLE 1U    SUBTYPE:  GIGABIT ETHERNET    PORTS:  24 X 10/100/1000 4 X GIGABIT SFP    PERFORMANCE:  SWITCHING CAPACITY: 56 GBPS ¦ FORWARDING PERFORMANCE: 41.7 MPPS    CAPACITY:  VLAN GROUPS: 4000    MAC ADDRESS TABLE SIZE:  8K ENTRIES    JUMBO FRAME SUPPORT:  10KB    ROUTING PROTOCOL:  STATIC IP ROUTING    REMOTE MANAGEMENT PROTOCOL:  SNMP, TELNET, HTTP, TFTP, SSH-2    FEATURES:  IGMP SNOOPING, DIFFSERV SUPPORT, WEIGHTED ROUND ROBIN (WRR) QUEUING, MAC ADDRESS FILTERING, IPV6 SUPPORT, FIRMWARE UPGRADABLE, ACCESS CONTROL LIST (ACL) SUPPORT, QUALITY OF SERVICE (QOS), JUMBO FRAMES SUPPORT, IPV4 SUPPORT, LINK AGGREGATION CONTROL PROTOCOL (LACP), CLASS OF SERVICE (COS), STRICT PRIORITY (SP), DIFFSERV CODE POINT (DSCP) SUPPORT, IP    COMPLIANT STANDARDS:  IEEE 802.1Q, IEEE 802.3AD (LACP), IEEE 802.3AZ    RAM:  256 MB    FLASH MEMORY:  32 MB   EXPANSION / CONNECTIVITY    INTERFACES:  24 X 1000BASE-T RJ-45 ¦ 4 X 1000BASE-X SFP UPLINK ¦ 1 X CONSOLE RJ-45 MANAGEMENT   POWER    POWER DEVICE:  INTERNAL POWER SUPPLY    VOLTAGE REQUIRED:  AC 120/230 V (50/60 HZ)    POWER CONSUMPTION OPERATIONAL:  20 WATT   MISCELLANEOUS    MTBF:  563,826 HOURS   DIMENSIONS E WEIGHT    WIDTH:  17.3 IN    DEPTH:  8.7 IN    HEIGHT:  1.7 IN    WEIGHT:  4.85 LBS   ENVIRONMENTAL PARAMETERS    MIN OPERATING TEMPERATURE:  32 °F    MAX OPERATING TEMPERATURE:  122 °F    HUMIDITY RANGE OPERATING:  10 90% (NON-CONDENSING)    MIN STORAGE TEMPERATURE:  -40 °F    MAX STORAGE TEMPERATURE:  158 °F    HUMIDITY RANGE STORAGE:  10 90% (NON-CONDENSING) ECS2100-28T SWITCH COMUTADOR EDGE-CORE 24 PORTAS TAGS DE ECS2100-28T: SWITCH 28 PORTAS GIGABIT, SWITCH 24 PORTAS POE, SWITCH SFP, SWITCH EDGE, SWITCH EDGECORE, ECS2100-28T, ECS2100, ECS2100 28T, SFP, SMC/EDGE-CORE, ECS2100-28T, SWITCH 24 PORTAS, SWITCH 4 PORTAS GIGABIT, ECS2100-28T
