Especificações Técnicas

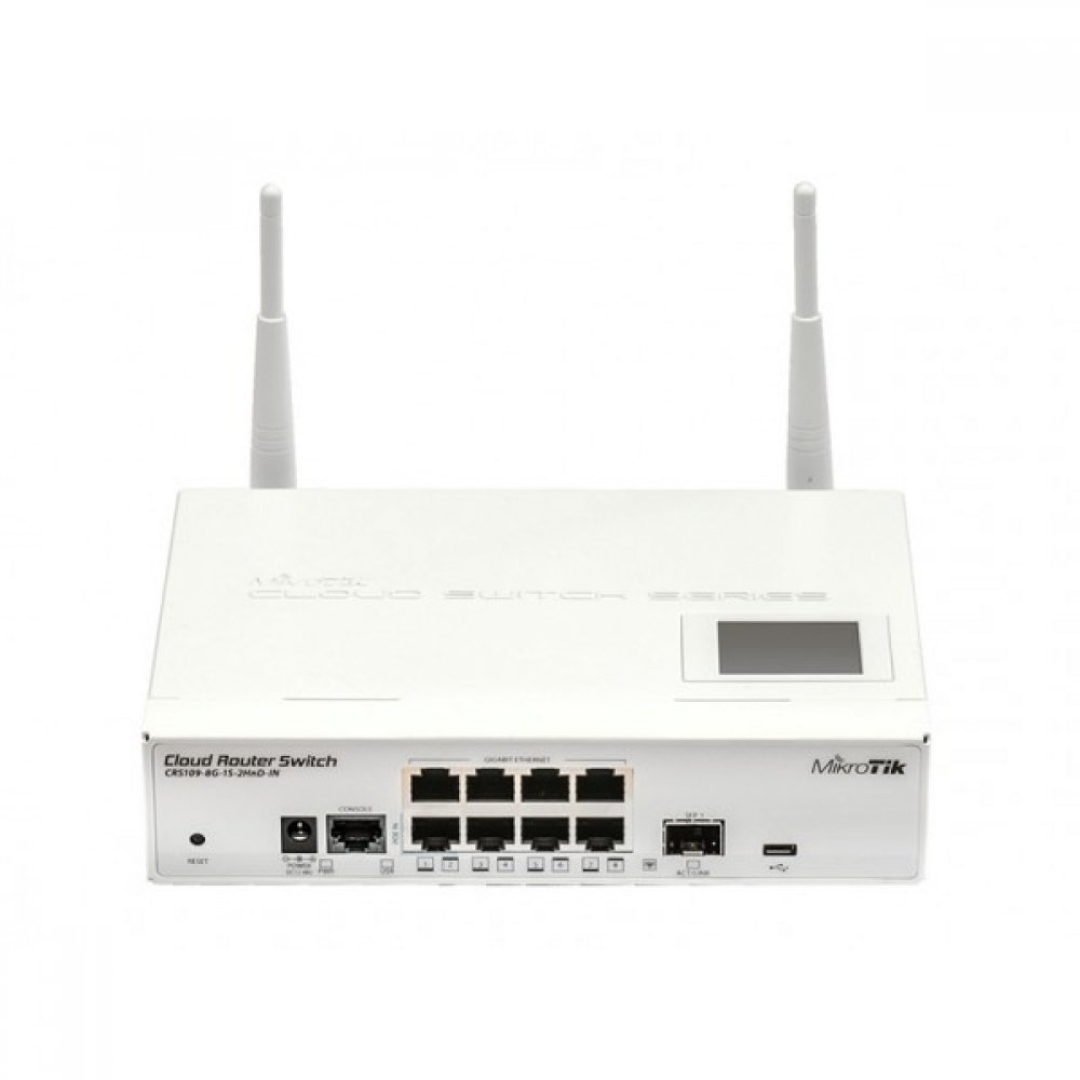

 CLOUD ROUTER SWITCH 109-8G-1S-2HND-IN IS NEW SMALL SIZE LOW COST MEMBER OF OUR CRS SERIES. IT COMES WITH EIGHT GIGABIT ETHERNET PORTS AND HIGH POWER 1000MW 2.4GHZ WIRELESS. PRODUCT SUPPORTS 10-57V AND IS 802.3AF/AT COMPLIANT!    OUR CRS SERIES COMBINES THE BEST FEATURES OF A FULLY AL ROUTER AND A LAYER 3 SWITCH, IS POWERED BY THE FAMILIAR ROUTEROS. ALL THE SPECIFIC SWITCH CONFIGURATION OPTIONS ARE AVAILABLE IN A SPECIAL SWITCH MENU, BUT IF YOU WANT, PORTS CAN BE REMOVED FROM THE SWITCH CONFIGURATION, AND USED FOR ROUTING PURPOSES.   SPECIFICATIONS:   PRODUCT CODE CRS109-8G-1S-2HND-IN SFP DDMI YES CPU NOMINAL FREQUENCY 600 MHZ CPU CORE COUNT 1 SIZE OF RAM 128 MB 10/100 ETHERNET PORTS NONE 10/100/1000 ETHERNET PORTS 8 MINIPCI SLOTS 0 MINIPCI-E SLOTS 0 WIRELESS CHIP MODEL AR9344-DC3A-R WIRELESS STANDARDS 802.11B/G/N NUMBER OF USB PORTS 1 POWER JACK 1 802.3AF SUPPORT YES POE OUT NO POE IN YES SUPPORTED INPUT VOLTAGE 8 V 57 V VOLTAGE MONITOR YES PCB TEMPERATURE MONITOR YES CPU TEMPERATURE MONITOR NO DIMENSIONS 200X145X45MM OPERATING SYSTEM ROUTEROS OPERATING TEMPERATURE RANGE -35C TO 65C TESTED LICENSE LEVEL 5 ANTENNA GAIN DBI 2.5 CURRENT MONITOR YES CPU AR9344-DC3A-R MAX POWER CONSUMPTION 13 W SFP PORTS 1 SFP PORTS NONE USB SLOT TYPE MICROUSB TYPE AB NUMBER OF CHAINS 2 SERIAL PORT RJ45   SPECIFICATIONS WIRELESS:   2.4 GHZ TX RX 1MBIT/S 29 -97 11MBIT/S 28 -90 6MBIT/S 30 -96 54MBIT/S 25 -76 MCS0 30 -96 MCS7 23 -7 CRS109-8G-1S-2HND-IN MIKROTIK SWITCH CLOUD WIRELESS 8 PORTAS TAGS DE CRS109-8G-1S-2HND-IN: ROTEADOR WIRELESS, SWITCH SEM FIO, SWITCH WIRELESS, SWITCH 8 PORTA GIGABIT, GIGABIT POTÊNCIA 1000MW, CRS109-8G-1S-2HND-IN, CRS1098G1S2HNDIN, CRS109 8G1S2HNDIN, CLOUD MIKROTIK WIRELESS, SWITCH CLOUD MIKROTIK

Informações Adicionais
