Especificações Técnicas

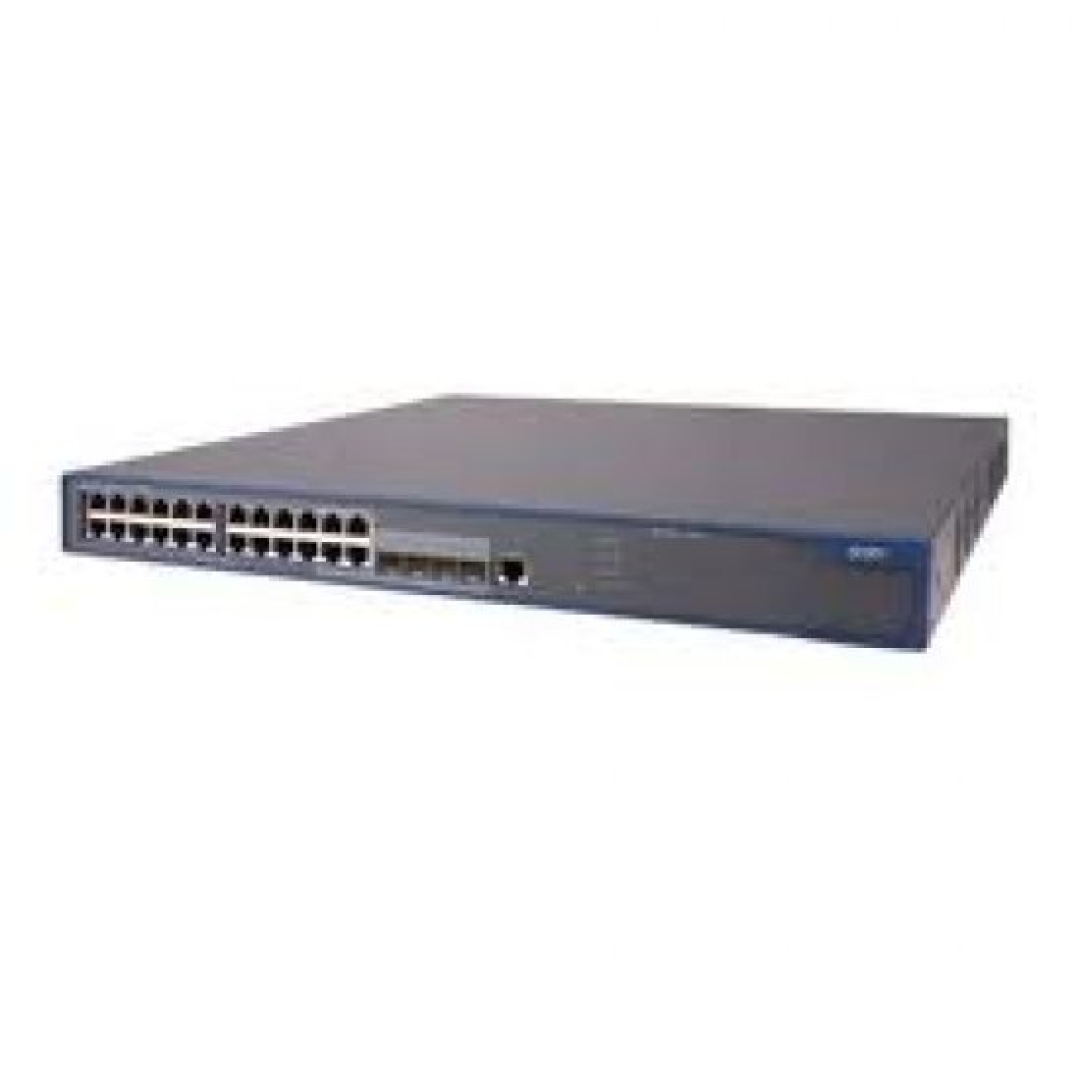

GENERAL DEVICE TYPE: SWITCH ENCLOSURE TYPE: EXTERNAL, 1U WIDTH: 17.3 IN DEPTH: 16.5 IN HEIGHT: 1.7 IN WEIGHT: 15.4 LBS LOCALIZATION: UNITED STATES NETWORKING PORTS QTY: 24 X ETHERNET 10BASE-T, ETHERNET 100BASE-TX, ETHERNET 1000BASE-T DATA TRANSFER RATE: 1 GBPS DATA LINK PROTOCOL: ETHERNET, FAST ETHERNET, GIGABIT ETHERNET ROUTING PROTOCOL: STATIC IP ROUTING REMOTE MANAGEMENT PROTOCOL: SNMP 1, SNMP 2, RMON, SNMP 3, HTTPS CONNECTIVITY TECHNOLOGY: WIRED COMMUNICATION MODE: HALF-DUPLEX, FULL-DUPLEX SWITCHING PROTOCOL: ETHERNET MAC ADDRESS TABLE SIZE: 8K ENTRIES STATUS INDICATORS: PORT STATUS, PORT TRANSMISSION SPEED, PORT DUPLEX MODE, POWER, ACTIVE FEATURES: FLOW CONTROL, LAYER 3 SWITCHING, LAYER 2 SWITCHING, DHCP SUPPORT, AUTO-NEGOTIATION, ARP SUPPORT, VLAN SUPPORT, IGMP SNOOPING, WEIGHTED ROUND ROBIN (WRR) QUEUING, STORE AND FORWARD, QUALITY OF SERVICE COMPLIANT STANDARDS: IEEE 802.3, IEEE 802.3U, IEEE 802.3Z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AF, IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.1W, IEEE 802.1X EXPANSION / CONNECTIVITY EXPANSION SLOTS TOTAL (FREE): 4 ( 4 ) X SFP (MINI-GBIC) INTERFACES: 24 X NETWORK / POWER, ETHERNET 10BASE-T/100BASE-TX/1000BASE-T, RJ-45 MISCELLANEOUS CABLES INCLUDED: 1 X SERIAL CABLE RACK MOUNTING KIT: INCLUDED COMPLIANT STANDARDS: CISPR 22 CLASS A, EN 61000-3-2, VCCI CLASS A ITE, EN 61000-3-3, EN55024, CSA 22.2 NO. 950, EN55022 CLASS A, ICES-003 CLASS A, UL 60950-1, IEC 60950-1, EN 60950-1 POWER POWER OVER ETHERNET (POE): YES POWER DEVICE: POWER SUPPLY, INTERNAL SOFTWARE / SYSTEM REQUIREMENTS SOFTWARE INCLUDED: DRIVERS & UTILITIES MANUFACTURER WARRANTY SERVICE & SUPPORT: 3 YEARS WARRANTY SERVICE & SUPPORT DETAILS: LIMITED WARRANTY, REPLACEMENT, 3 YEARS, RESPONSE TIME: NEXT BUSINESS DAY ENVIRONMENTAL PARAMETERS MIN OPERATING TEMPERATURE: 32 °F MAX OPERATING TEMPERATURE: 104 °F HUMIDITY RANGE OPERATING: 10, 95% 3CRBSG28HPWR93 SWITCH 3COM BASELINE PLUS SWITCH 2928 TAGS DE 3CRBSG28HPWR93: SWITCH
