Especificações Técnicas

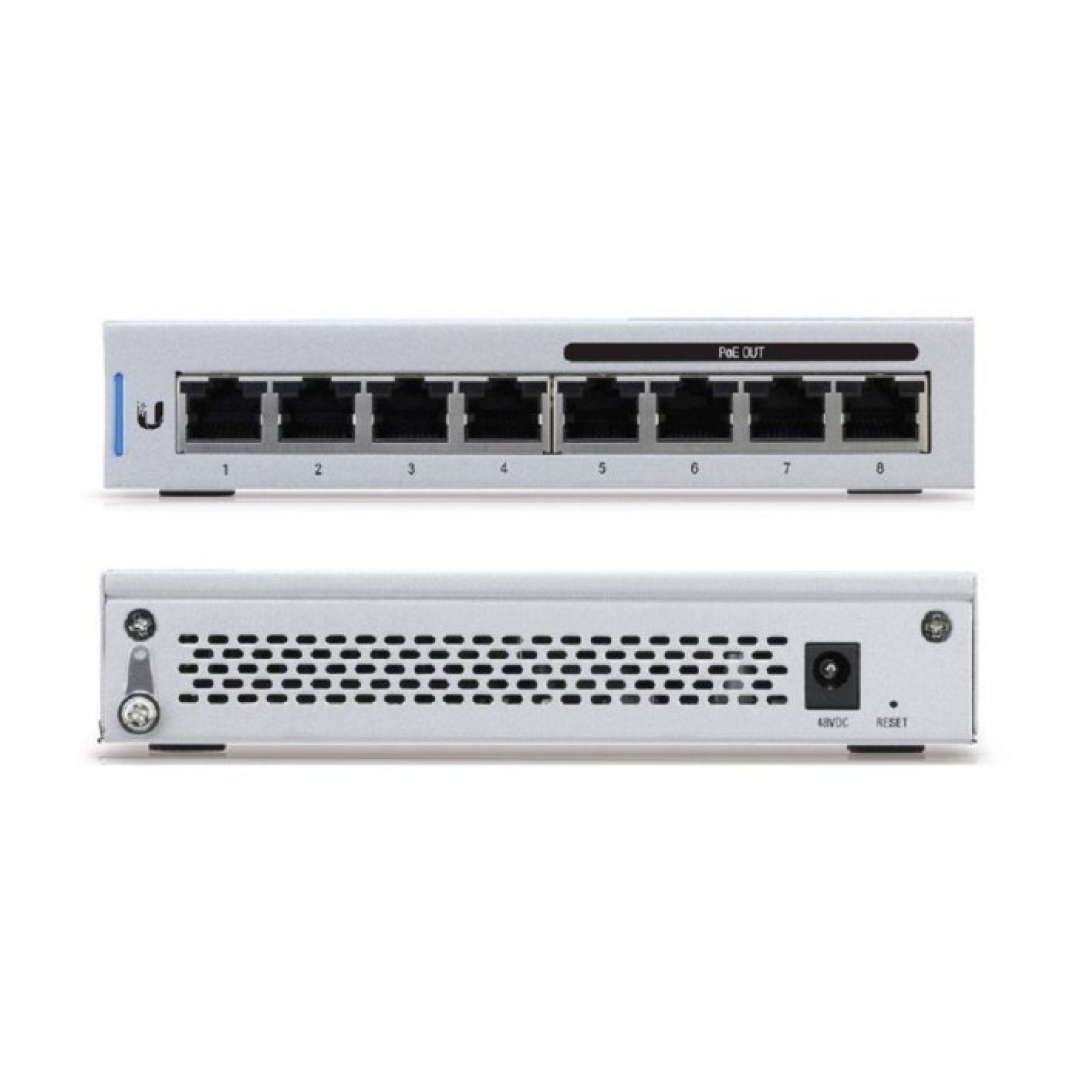

DESCRIÇÃO.   MODELO: US-8-60W-BR   (8) GIGABIT RJ45 PORTS (4) AUTO-SENSING IEEE 802.3AF POE PORTS NON-BLOCKING THROUGHPUT: 8 GBPS SWITCHING CAPACITY: 16 GBPS FORWARDING RATE: 11.9 MPPS MAXIMUM POWER CONSUMPTION: 12W AVAILABLE IN SINGLE-PACK AND 5-PACK DIMENSÕES 148,0 X 99,5 X 30,7 MM ENCLOSURE CHARACTERISTICS SGCC STEEL. TOTAL NON-BLOCKING THROUGHPUT 8 GBPS SWITCHING CAPACITY 16 GBPS FORWARDING RATE 11.9 MPPS MAX. POWER CONSUMPTION 12W (EXCLUDING POE OUTPUT) MAX. POE WATTAGE PER PORT 15.4W POWER METHOD 48VDC, MAX. 2A SUPPORTED VOLTAGE RANGE 57VDC TO 44VDC POWER SUPPLY EXTERNAL AC/DC ADAPTER, 48V, 1.25A LEDS POE (PORT 8), SPEED/LINK/ACTIVITY (ALL PORTS) NETWORKING INTERFACES (8) 10/100/1000 MBPS RJ45 PORTS POE INTERFACES (4) PORTS 5, 6, 7, 8; IEEE802.3AF ESD/EMP PROTECTION AIR: ± 24 KV, CONTACT: ± 24 KV OPERATING TEMPERATURE -5 TO 45° C (23 TO 113° F) OPERATING HUMIDITY 5 TO 95% NONCONDENSING SHOCK AND VIBRATION ETSI300-019-1.4 STANDARD CERTIFICATIONS CE, FCC, IC US-8-60W-BR UBIQUITI SWITCH 8 PORTAS POE 60W GIGABIT TAGS DE US-8-60W-BR: US860W, SWITCH 8 PORTAS, HUB 8 PORTAS, SWITCH POE, SWITCH 8 PORTAS GIGABIT, GIGABIT POE, HUB 8 PORTAS 60W, 8 PORTAS POE, HUB 8 PORTAS, US-8-60W-BR, US-8-60W-BR, SWITCH 8 PORTAS POE, SWITCH GIGABIT POE, POE60W, POE 60W, US-8-60W-BR
