Especificações Técnicas

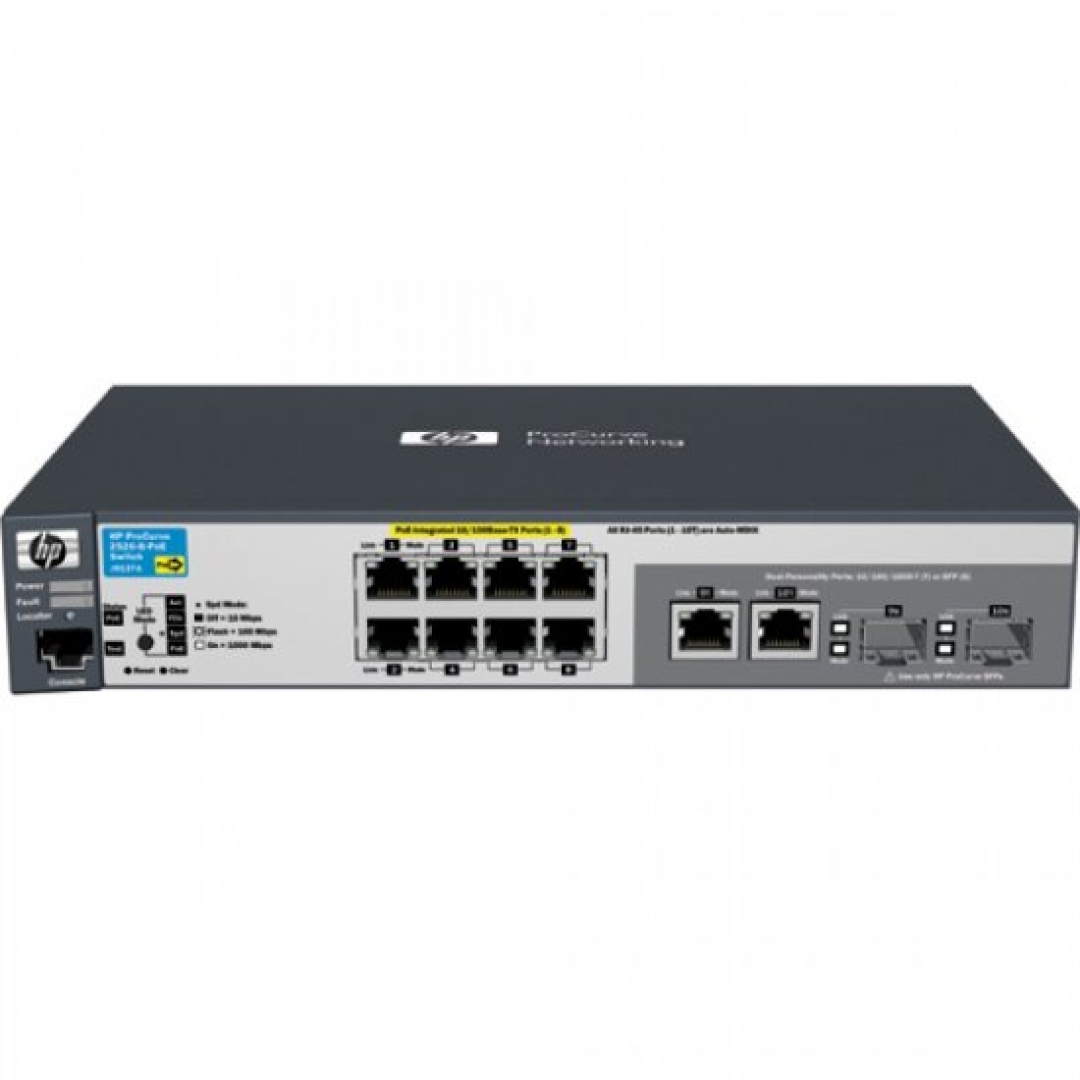

TECHNICAL SPECIFICATIONS PORTS 8 RJ-45 AUTOSENSING 10/100 POE PORTS(IEEE 802.3 TYPE 10BASE-T, IEEE 802.3U TYPE 100BASE-TX, IEEE 802.3AF POE), MEDIA TYPE: AUTO-MDIX, DUPLEX: HALF OR FULL; 2 DUAL-PERSONALITY PORTS, EACH PORT CAN BE USED AS EITHER AN RJ-45 10/100/1000 PORT (IEEE 802.3 TYPE 10BASE-T; IEEE 802.3U TYPE 100BASE-TX; IEEE 802.3AB 1000BASE-T GIGABIT ETHERNET) OR AS A SFP SLOT (FOR USE WITH SFP TRANSCEIVERS); 1 RJ-45 SERIAL CONSOLE PORT MOUNTING MOUNTS IN AN EIA-STANDARD 19-INCH TELCO RACK OR EQUIPMENT CABINET (RACK-MOUNTING KIT AVAILABLE); HORIZONTAL SURFACE MOUNTING; WALL MOUNTING MEMORY AND PROCESSOR PROCESSOR : FREESCALE POWERPC 8313 @ 266 MHZ, 32 MB FLASH, PACKET BUFFER SIZE: 384 KB DYNAMICALLY ALLOCATED, 128 MB DDR2 SDRAM LATENCY 100 MB LATENCY: < 1.9 µS (LIFO 64-BYTE PACKETS); 1000 MB LATENCY: < 1.5 µS (LIFO 64-BYTE PACKETS) THROUGHPUT 4.1 MILLION PPS MANAGEMENT FEATURES HP PCM+; HP PCM; COMMAND-LINE INTERFACE; WEB BROWSER; CONFIGURATION MENU; OUT-OF-BAND MANAGEMENT (SERIAL RS-232C); IEEE 802.3 ETHERNET MIB; REPEATER MIB; ETHERNET INTERFACE MIB SWITCHING CAPACITY 5.6 GBPS POWER AND OPERATING REQUIREMENTS POWER CONSUMPTION 85.5 W (MAXIMUM) INPUT VOLTAGE 100-240 VAC INPUT OPERATING CURRENT 1.5 A INPUT FREQUENCY 50/60 HZ SAFETY CUL (CSA 22.2 NO. 60950); CE LABELED; UL 60950-1; UL LISTED; CAN/CSA 22.2 NO. 60950; EN 60825; AS/NZS 60950; IEC 60950-1; EN 60950-1 ELECTROMAGNETIC COMPATIBILITY FCC PART 15 CLASS A; VCCI CLASS A; EN 55022 CLASS A; CISPR 22 CLASS A; ICES-003 (CANADA); AS/NZS CISPR 22; IEC/EN 61000-3-2; IEC/EN 61000-3-3; IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11 OPERATING TEMPERATURE RANGE 0 TO 45°C OPERATING HUMIDITY RANGE 15 TO 95% @ 104°F (40°C) (NONCONDENSING) OPERATING ALTITUDE UP TO 3 KM ACOUSTIC PRESSURE EMISSIONS POWER: 0 DB, PRESSURE: 0 DB HEAT DISSIPATION 87 BTU/HR (91.79 KJ/HR) WEIGHT NOTE (METRIC) INCLUDING POWER ADAPTER AND POWER CORD J9137A SWITCH HP 2520 8X GIGABIT RJ45 POE MAIORES DETALHES DE J9137A NO SITE DO FABRICANTE: HTTP://H17007.WWW1.HP.COM/US/EN/PRODUCTS/SWITCHES/HP_2520_SWITCH_SERIES/INDEX.AS TAGS DE J9137A: J9137A, SWITCH GIGA 8 PORTAS, SWITCH 10/100/1000 8 PORTAS, 250 SERIES, POE, SWITCH POE, POWER OVER ETHERNET, HEWLETT PACKARD
