Especificações Técnicas

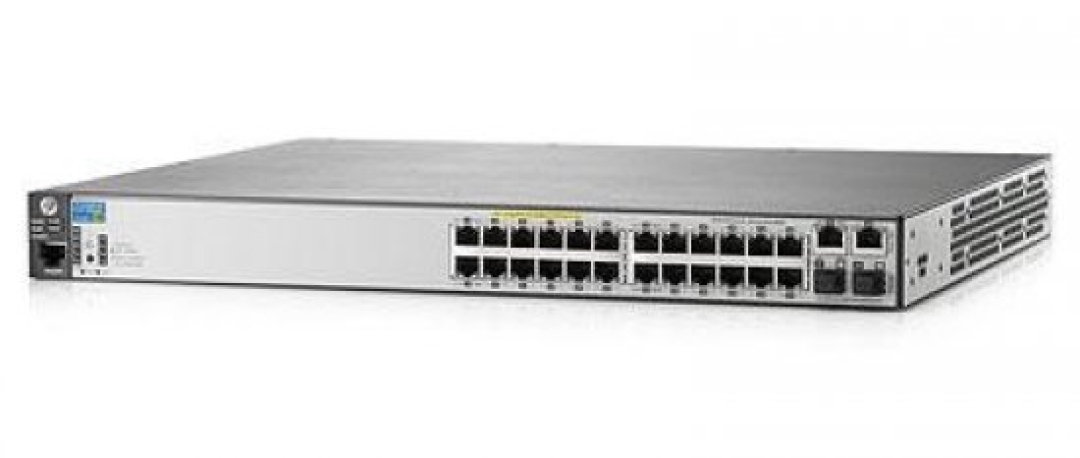

TECHNICAL SPECIFICATIONS PORTS   24 RJ-45 AUTOSENSING 10/100 POE+ PORTS(IEEE 802.3 TYPE 10BASE-T, IEEE 802.3U TYPE 100BASE-TX, IEEE 802.3AT POE+), MEDIA TYPE: AUTO-MDIX, DUPLEX: HALF OR FULL; 1 RJ-45 SERIAL CONSOLE PORT; 2 AUTOSENSING 10/100/1000 PORTS(IEEE 802.3 TYPE 10BASE-T, IEEE 802.3U TYPE 100BASE-TX, IEEE 802.3AB TYPE 1000BASE-T), DUPLEX: 10BASE-T/100BASE-TX: HALF OR FULL; 1000BASE-T: FULL ONLY; 2 OPEN MINI-GBIC (SFP) SLOTS   MOUNTING   MOUNTS IN AN EIA-STANDARD 19 IN. TELCO RACK OR EQUIPMENT CABINET (HARDWARE INCLUDED); HORIZONTAL SURFACE MOUNTING ONLY   MEMORY AND PROCESSOR   PROCESSOR : POWER PC FREESCALE 8313 @ 400 MHZ, 512 MB FLASH, PACKET BUFFER SIZE: 1 MB, 512 MB SDRAM, 4 MB FLASH ROM   LATENCY   100 MB LATENCY: < 8.3 µS (LIFO); 1000 MB LATENCY: < 2.9 µS (LIFO)   THROUGHPUT   UP TO 9.5 MILLION PPS   ROUTING/SWITCHING CAPACITY   12.8 GBPS   MANAGEMENT FEATURES   COMMAND-LINE INTERFACE; WEB BROWSER; TELNET   CONNECTIVITY AND COMMUNICATIONS GENERAL PROTOCOLS   IEEE 802.1D MAC BRIDGES; IEEE 802.1P PRIORITY; IEEE 802.1Q VLANS; IEEE 802.1S MULTIPLE SPANNING TREES; IEEE 802.1V VLAN CLASSIFICATION BY PROTOCOL AND PORT; IEEE 802.1W RAPID RECONFIGURATION OF SPANNING TREE; IEEE 802.3AD LINK AGGREGATION CONTROL PROTOCOL (LACP); IEEE 802.3X FLOW CONTROL; RFC 768 UDP; RFC 783 TFTP PROTOCOL (REVISION 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 TIME PROTOCOL; RFC 951 BOOTP; RFC 1058 RIPV1; RFC 1350 TFTP PROTOCOL (REVISION 2); RFC 2030 SIMPLE NETWORK TIME PROTOCOL (SNTP) V4; RFC 2131 DHCP; RFC 2453 RIPV2; RFC 3046 DHCP RELAY AGENT INFORMATION OPTION   NETWORK MANAGEMENT   IEEE 802.1AB LINK LAYER DISCOVERY PROTOCOL (LLDP); RFC 2819 FOUR GROUPS OF RMON: 1 (STATISTICS), 2 (HISTORY), 3 (ALARM) AND 9 (EVENTS); RFC 3176 SFLOW; ANSI/TIA-1057 LLDP MEDIA ENDPOINT DISCOVERY (LLDP-MED); SNMPV1/V2C/V3; XRMON   POWER AND OPERATING REQUIREMENTS POWER CONSUMPTION   39.5 W (MAXIMUM)   INPUT VOLTAGE   100-127/200-240 VAC   INPUT FREQUENCY   50/60 HZ   SAFETY   EN 60950/IEC 60950; CAN/CSA 22.2 NO. 60950; EN 60825; UL 60950   ELECTROMAGNETIC COMPATIBILITY   FCC CLASS A; VCCI CLASS A; EN 55022/CISPR 22 CLASS A   OPERATING TEMPERATURE RANGE   0 TO 55°C   OPERATING HUMIDITY RANGE   15 TO 95% @ 104°F (40°C) (NONCONDENSING)   OPERATING ALTITUDE   UP TO 3 KM   ACOUSTIC PRESSURE EMISSIONS   POWER: 34.0 DB, PRESSURE: 29.7 DB   HEAT DISSIPATION   270 BTU/HR (284.85 KJ/HR)   IMMUNITY STANDARD   EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3   DIMENSIONS AND WEIGHT MINIMUM DIMENSIONS (W X D X H)   44.3 X 36.83 X 4.39 CM   WEIGHT   4.84 KG   WEIGHT NOTE (METRIC)   FULLY LOADED J9625A SWITCH HP 24 PORTAS 10/100 POE 2620-24 TAGS DE J9625A: J9625A, SWITCH HP 2620-24-POE, SWITCH HP POE, 24 PORTAS POE, HP 2620-24, HEWLETT PACKARD

Informações Adicionais
