Especificações Técnicas

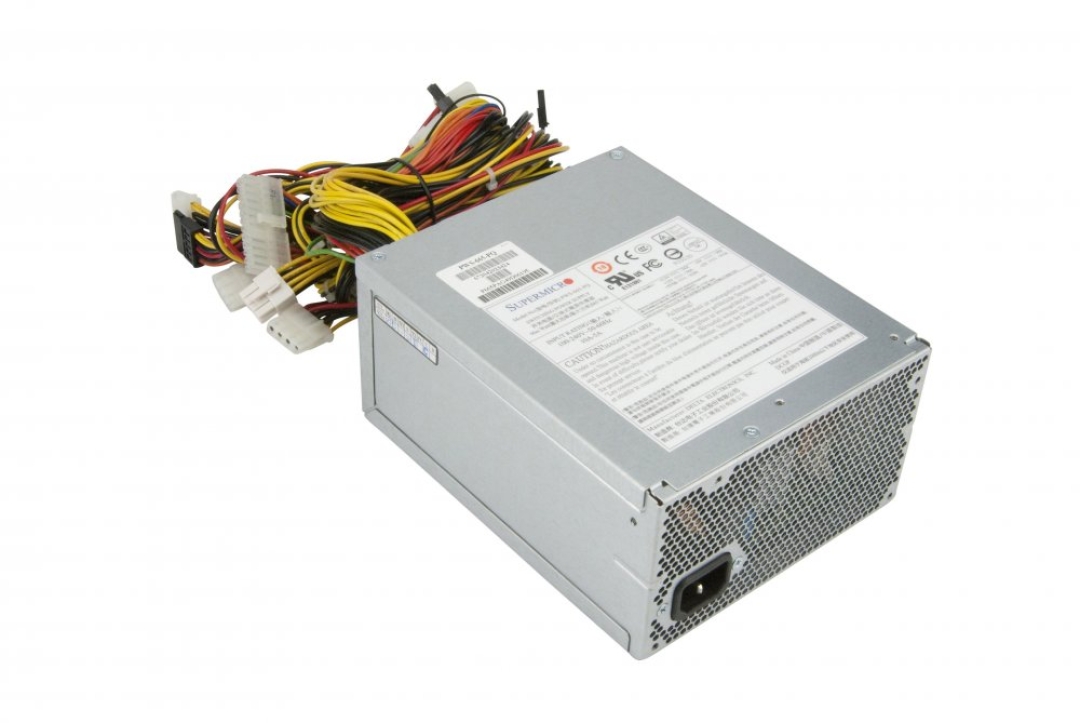

THE SUPERMICRO PWS-665-PQ IS AN 80 PLUS LEVEL POWER SUPPLY CAPABLE OF CONTINUOUSLY SUPPLYING 665W OUTPUT POWER AT 89% EFFICIENCY. ENJOY THE SIMPLICITY OF ACTIVE POWER FACTOR CORRECTION (PFC) AND AUTOMATICALLY CORRECT AC INPUT FOR A FULL RANGE OF VOLTAGES AND A QUIET FAN TO KEEP IT COOL UNDER HEAVY LOADS. THIS POWER SUPPLY IS DESIGNED TO NOT ONLY PROVIDE YOU RELIABLE POWER TO YOUR DESKTOP OR WORKSTATION BUT ALSO PROTECTS IT FROM OVER VOLTAGE, OVER CURRENT AND SHORT CIRCUITING VIA PROTECTIVE CIRCUITRY EMBEDDED INTO THE UNIT. ALL MATERIALS CONTAINED COMPLY WITH ROHS REQUIREMENTS AND IS CERTIFIED BY SUPERMICRO.     FONTE ATX SUPERMICRO PWS-665-PQ 665W 80PLUS BRONZE   ESPECIFICAÇOES:   COMPATIVEL COM CHASSIS SUPERCHASSIS CSE-743T-665B E CSE-733TQ-665B POTÊNCIA: 665W DIMENSOES: (W X L X H): 150 X 185 X 86 MM CARACTERISTICAS DE ENTRADA: VOLTAGEM NOMINAL: 100-240VAC / 10 - 5A FREQUÊNCIA: 50-60HZ FATOR DE POTÊNCIA : 0.99 CARACTERISTICAS DE SAIDA: 80 PLUS BRONZE RIPPLE E RUIDO: 3.3V/ 5V/ 5VSB: 50MV / 12V/-12V: 120MV TEMPERATURA AMBIENTE: OPERATING: 0 TO 50 °C / NON-OPERATING: -10 TO 70 °C CABOS:  24PIN ATX - 340 MM 4PIN 12V - 380 MM 8PIN 12V - 320 MM 8PIN 12V - 380 MM 2X 4PIN PERIPHERAL FDD - 370 150 150 MM 2X 4PIN PERIPHERAL - 510 100 MM 2X SATA 2X PERIPHERAL FDD - 500 150 150 150 150 MM 6 2PIN PCIE - 500 MM 6 2PIN PCIE - 500 MM 6PIN PCIE - 500 MM 6PIN PCIE - 500 MM PWS-665-PQ SUPERMICRO 665W MULTI-OUTPUT PS2/ATX PSU 80PLUS BR MAIORES DETALHES DE PWS-665-PQ NO SITE DO FABRICANTE: HTTPS://STORE.SUPERMICRO.COM/665W-ATX-PWS-665-PQ.HTML TAGS DE PWS-665-PQ: PWS-665-PQ, PWS665PQ, PWS-665, PWS665, SUPERMICRO 665W MULTI OUTPUT PS2/ATX POWER SUPPLY, SUPERCHASSIS 743T-665B, SUPERCHASSIS 733TQ-665B, SUPERCHASSIS 743T665B, SUPERCHASSIS 733TQ665B, FONTE WORKSTATION, FONTE PARA SERVIDOR, FONTE DE SERVIDOR, FONTE SUPERMICRO, FONTE SERVIDOR TORRE SUPERMICRO, FONTE 4U, FOTNE ATX SERVIDOR, FONTE ATX 8 PINOS, FONTE COM CONECTOR DE 8 PINOS, FONTE SERVER EPS 12V, CSE-743T-665B, CSE-733TQ-665B
