Especificações Técnicas

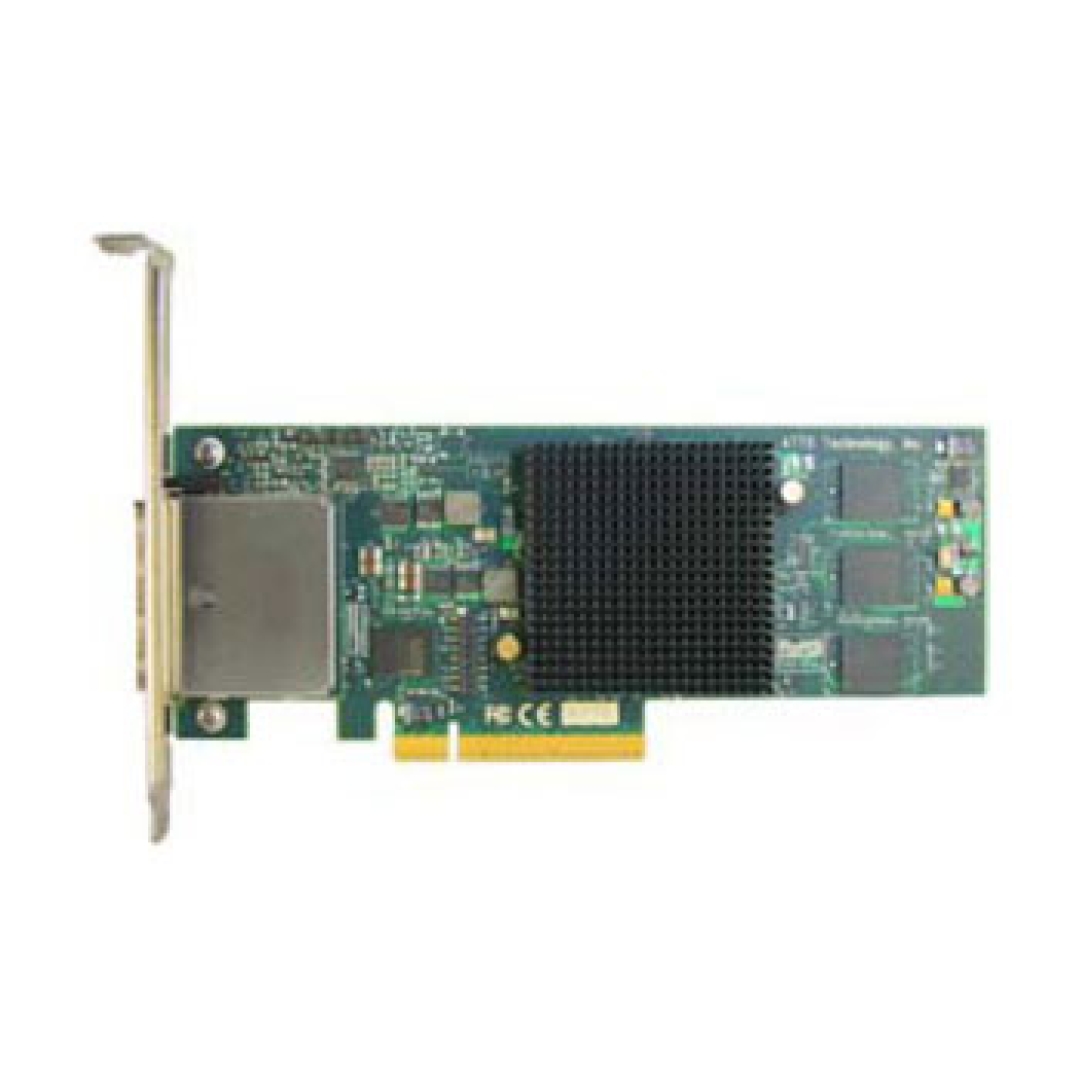

GENERAL INFORMATION PRODUCT TYPE :SAS RAID CONTROLLERMANUFACTURER PART NUMBER :44E8825MANUFACTURER WEBSITE ADDRESS :WWW.IBM.COM/BR/PT/MARKETING INFORMATION :SERVERAID MR10M 8-CHANNEL SAS RAID CONTROLLER IS A HIGH-PERFORMANCE PCIE RAID CONTROLLER FOR EXTERNAL DIRECT ATTACHED STORAGE RAID 0, 1, 10, 5, 50, 6, AND 60. THIS SMALL FORM FACTOR (MD2) ADAPTER WITH BATTERY BACKED DDR2 CACHE (BBU) UTILIZES AN LSI 1078 CONTROLLER WITH AN X8 PCI EXPRESS HOST INTERFACE AND EIGHT EXTERNAL SAS/SATA II 3 GB/S PORTS. MANUFACTURER :IBM CORPORATIONPRODUCT MODEL :MR10MPRODUCT NAME :SERVERAID MR10M 8-CHANNEL SAS RAID CONTROLLERPRODUCT LINE :SERVERAIDBRAND NAME :IBM TECHNICAL INFORMATION HOST INTERFACE :PCI EXPRESS X8DATA TRANSFER RATE :300MBPS PLATFORM SUPPORT :PCRAID LEVELS :0 1 10 5 50 6 60 MEMORY STANDARD MEMORY :256MB ECC DDR2 INTERFACES/PORTS PORTS :2 X 26-PIN SFF-8088 MINI SAS 300 - SERIAL ATTACHED SCSI EXTERNAL PHYSICAL CHARACTERISTICS DIMENSIONS :2.7" HEIGHT X 6.7" WIDTH X 0.7" THICKNESSWEIGHT :0.38 LB FORM FACTOR :HALF-LENGTH LOW-PROFILE PLUG-IN CARD MISCELLANEOUS COMPATIBILITY :IBM SYSTEM X SERVERS BLADECENTER SERVERS XSERIES SERVERS WARRANTY STANDARD WARRANTY :1 YEAR LIMITED 44E8825 IBM SERVERAID-MR10M SAS/SATA MAIORES DETALHES DE 44E8825 NO SITE DO FABRICANTE: HTTP://WWW-01.IBM.COM/COMMON/SSI/REP_CA/9/897/ENUS108-529/ENUS108-529.PDF TAGS DE 44E8825: 44E8825, CONTROLADORAS RAID, RAID SAS/SATA, IBM, CONTROLADORA RAID, CONTROLADORA SAS, CONTROLADORA SATA, CONTROLADORA DE BACKUP, PLACA CONTROLADORA

Informações Adicionais
