Especificações Técnicas

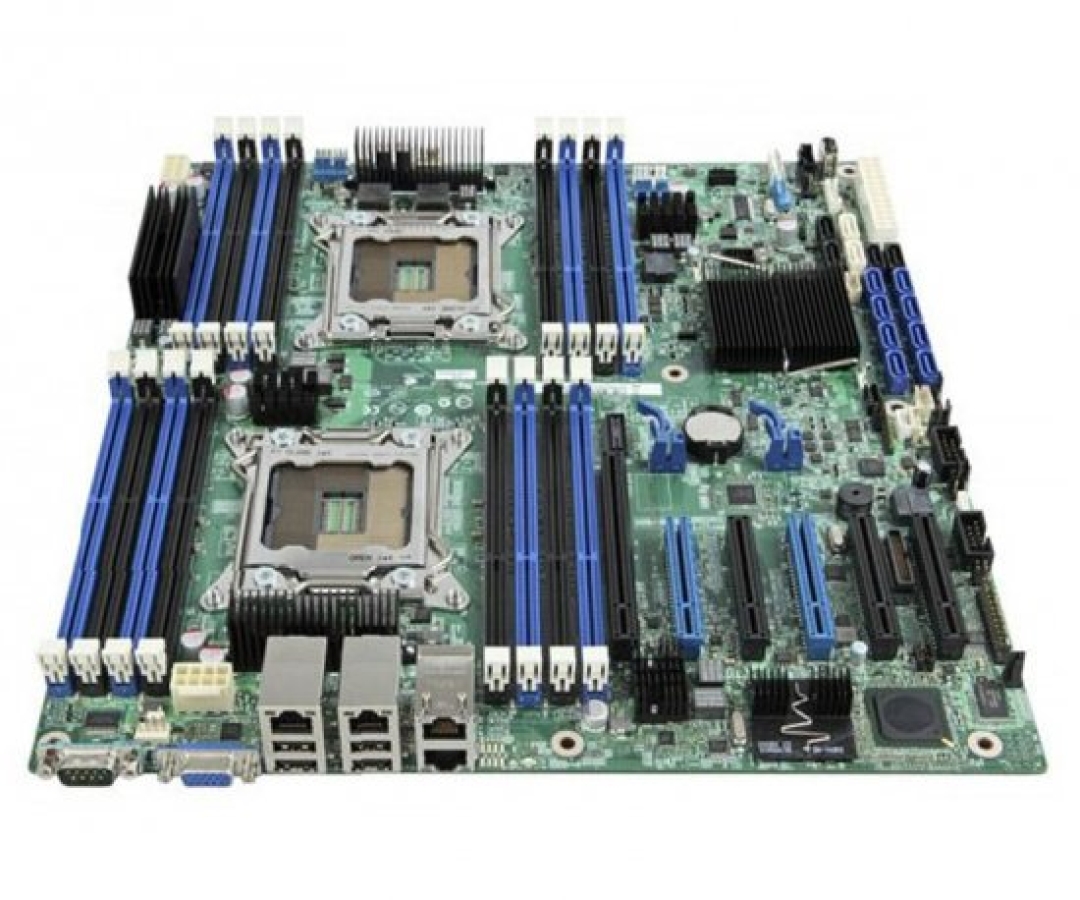

ESSENTIALS • STATUS: LAUNCHED • LAUNCH DATE: Q112 • EXPECTED DISCONTINUANCE: Q117 • LIMITED 3-YEAR WARRANTY: YES • EXTENDED WARRANTY AVAILABLE FOR PURCHASE (SELECT COUNTRIES): YES • ON-SITE REPAIR AVAILABLE FOR PURCHASE (SELECT COUNTRIES): YES, WHEN INTEGRATED WITH INTEL CHASSIS. • Nº OF QPI LINKS: 2 • BOARD FORM FACTOR: SSI EEB 12" X 13" • CHASSIS FORM FACTOR: PEDESTAL • SOCKET: SOCKET R • INTEGRATED SYSTEMS AVAILABLE: YES • INTEGRATED BMC WITH IPMI IPMI: 2.0 • RACK-FRIENDLY BOARD: YES • EMBEDDED OPTIONS AVAILABLE: YES • SUPPLEMENTAL SKU: NO • MAX TDP: 135 W • INCLUDED ITEMS: INTEL® SERVER BOARD S2600CP4 SUPPORTING 16 DIMMS AVAILABLE IN A 10-PACK, 5-PACK, OR INTEGRATED IN A SYSTEM. THE 5-PACK ALSO INCLUDES: (5) I/O SHIELD, (5) DVD, (5) QUICK START GUIDE • DESCRIPTION: INTEL® SERVER BOARD S2600CP4, MAINSTREAM SERVER BOARD SUPPORTING TWO E5-2600 CPUS AND 16 DIMMS WITH FOUR 1GB ETHERNET PORTS.SIX X8 ELECTRICAL PCIE GEN3 IO SLOTS. UP TO 8 SCU PORTS PLUS 2 SATA 6GB PORTS AND 4 SATA 3GB PORTS WITH STORAGE ACTIVATION KEY.  • TARGET MARKET: SMALL AND MEDIUM BUSINESS MEMORY SPECIFICATIONS • MAX MEMORY SIZE (DEPENDENT ON MEMORY TYPE): 512 GB • MEMORY TYPES: DDR3 ECC UDIMM 1600, RDIMM 1600, LRDIMM 1333 • Nº OF MEMORY CHANNELS: 8 • MAX MEMORY BANDWIDTH: 819 GB/S • PHYSICAL ADDRESS EXTENSIONS: 46-BIT • Nº OF DIMMS: 16 • ECC MEMORY SUPPORTED: YES GRAPHICS SPECIFICATIONS • INTEGRATED GRAPHICS: YES • GRAPHICS OUTPUT: 15-PIN VGA • INTEL® CLEAR VIDEO TECHNOLOGY: NO • DUAL DISPLAY CAPABLE: NO • DISCRETE GRAPHICS: SUPPORTED EXPANSION OPTIONS • PCI EXPRESS REVISION: 3 • PCIE X8 GEN 3: 5 • PCIE X16 GEN 3: 1 • INTEL® IO EXPANSION MODULE PCIE X8 GEN 3: 0 • INTEL® INTERNAL IO EXPANSION MODULE PCIE X8 GEN 3: 0 I/O SPECIFICATIONS • USB REVISION: USB 2.0 • Nº OF USB PORTS: 5 • USB 2.0 CONFIGURATION (BACK + INTERNAL): 4 • Nº OF SATA PORTS: 14 • Nº OF ESATA PORTS: 0 • RAID CONFIGURATION: UP TO SW RAID 5 (LSI + RSTE) • Nº OF SERIAL PORTS: 2 • Nº OF LAN PORTS: 4 • INTEGRATED LAN: 4X 1GBE • EMBEDDED USB (EUSB) SOLID STATE DRIVE OPTION: YES • INTEGRATED SAS PORTS: 8 PACKAGE SPECIFICATIONS • MAX CPU CONFIGURATION: 2 • ENERGY STAR: YES • LOW HALOGEN OPTIONS AVAILABLE: SEE MDDS ADVANCED TECHNOLOGIES • INTEL® TRUSTED EXECUTION TECHNOLOGY: YES • AES NEW INSTRUCTIONS: YES • INTEL® VPRO TECHNOLOGY: NO • INTEL® ACTIVE MANAGEMENT TECHNOLOGY: NO • INTEL® AMT VERSION: FALSE • INTEL® REMOTE WAKE TECHNOLOGY: NO • INTEL® REMOTE PC ASSIST TECHNOLOGY: NO • INTEL® REMOTE MANAGEMENT MODULE SUPPORT: TRUE • INTEL® INTELLIGENT POWER NODE MANAGER: YES • INTEL® CIRA TECHNOLOGY: NO • INTEL® ANTI-THEFT TECHNOLOGY: NO • TPM: YES • INTEL® TPM VERSION INTEL®: TPM VERSION 1.2 • INTEL® QUICK RESUME TECHNOLOGY: NO • INTEL® QUIET SYSTEM TECHNOLOGY: NO • INTEL® HD AUDIO TECHNOLOGY: NO • INTEL® AC97 TECHNOLOGY: NO • INTEL® MATRIX STORAGE TECHNOLOGY: YES • INTEL® FAST MEMORY ACCESS: YES • INTEL® FLEX MEMORY ACCESS: YES • INTEL® I/O ACCELERATION TECHNOLOGY: TRUE DBS2600CP4 SERVER BOARD INTEL DUAL XEON E5 2600 MAIORES DETALHES DE DBS2600CP4 NO SITE DO FABRICANTE: HTTP://ARK.INTEL.COM/PRODUCTS/56334/INTEL-SERVER-BOARD-S2600CP4 TAGS DE DBS2600CP4: DBS2600CP4, S2600CP4, SERVER BOARD, MOTHERBOARD SERVER, PLACA MAE SERVER, SERVER BOARDS, PLACAS MAE, INTEL, E5 2600M, INTEL E5 2600, E5-2600, PLACA MAE SERVIDOR, PLACA MAE PARA SERVIDOR, PLACA SERVIDOR
