Especificações Técnicas

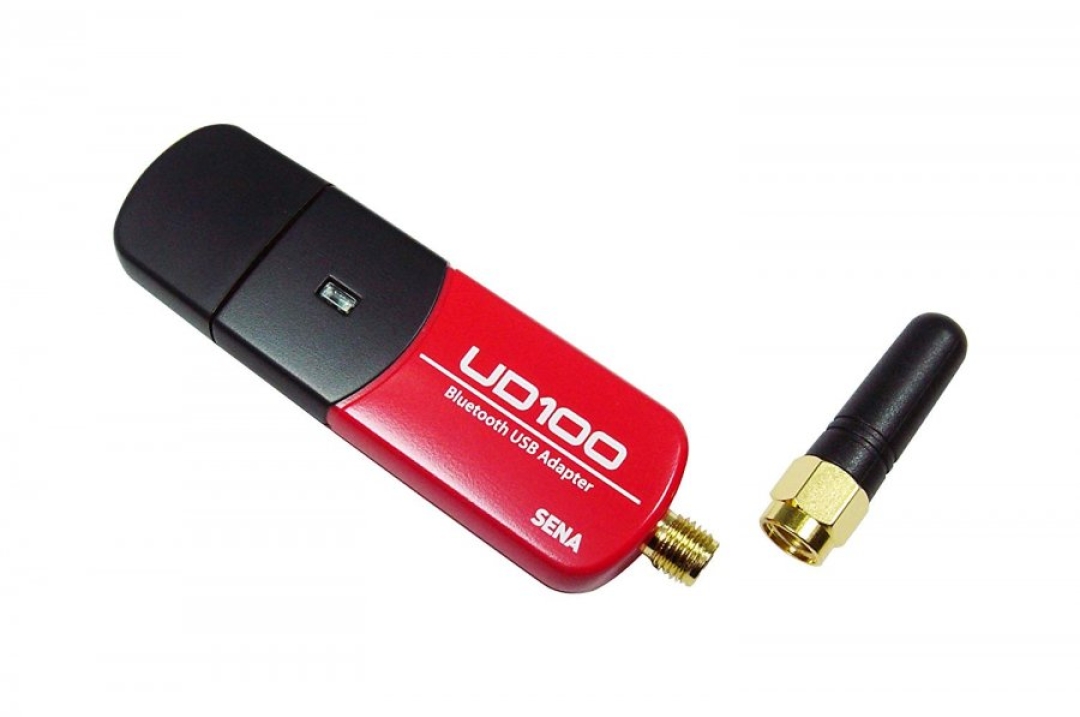

 THE PARANI-UD100-G03 IS A CLASS 1 TYPE BLUETOOTH USB ADAPTER THAT SUPPORTS 300 METERS OF WIRELESS TRANSMISSION DISTANCE BY DEFAULT. THE WORKING DISTANCE CAN BE FURTHER EXTENDED UP TO 1000 METERS USING AN OPTIONAL REPLACEMENT ANTENNA. THANKS TO ITS LONGER COMMUNICATION DISTANCE THAN OTHER REGULAR BLUETOOTH USB ADAPTERS, IT IS SUITABLE FOR INDUSTRIAL OR SPECIAL APPLICATIONS. PARANI-UD100-G03 IS COMPATIBLE WITH VARIOUS SENA BLUETOOTH DEVICES. SPECIFICATIONS: STANDARDS BLUETOOTH 2.0 EDR CLASS 1 USB 2.0 MAX TRANSFER RATE : 3 MBPS (EDR) FREQUENCY RANGE : 2.402 ~ 2.480GHZ TRANSMIT OUTPUT POWER : 19DBM ( 6DBM EDR) E.I.R.P RECEIVE SENSITIVITY BASIC 1MBPS : -88 DBM EDR 2MBPS : -87DBM EDR 3MBPS : -82DBM ANTENNA CONNECTOR : RP-SMA ANTENNA GAIN DEFAULT STUB ANTENNA : 1 DBI OPTIONAL DIPOLE ANTENNAS : 3 DBI E 5 DBI OPTIONAL PATCH ANTENNA : 9 DBI WORKING DISTANCE(IN OPEN FIELD) STUB ANTENNA - STUB ANTENNA: 300 M DIPOLE (3 DBI) - DIPOLE (3 DBI) : 400 M DIPOLE (5 DBI) - DIPOLE (5 DBI): 600 M PATCH ANTENNA - PATCH ANTENNA: 1 KM WORKING DISTANCE CAN VARY DEPENDING ON INSTALL ENVIRONMENT BLUETOOTH STACK SOFTWARE : TOSHIBA COMPUTER OS SUPPORT WINDOWS 2000/XP/VISTA (32/64BIT) LINUX (3RD PARTY DRIVER REQUIRED) MAC OS X (MAC OS X DRIVER REQUIRED) SIZE : 72(L) X 22(W) X 10(H) MM OPERATING TEMPERATURE : -20 ~ 70°C STORAGE TEMPERATURE : -40 ~ 85°C HUMIDITY : 90% NON-CONDENSING REGULATORY APPROVALS : FCC, CE, TELEC, KCC, BLUETOOTH SIG FEATURES: BLUETOOTH 2.0 EDR CLASS 1 WORKING DISTANCE 300M, UP TO 1000M USING OPTIONAL ANTENNA USB 2.0 INTERFACE BLUETOOTH DRIVER CD (TOSHIBA DRIVER) OPTIONAL ACCESSORIES SAT-G01R : 1 DBI STUB ANTENNA - RP-SMA PLUG RIGHT-HAND THREAD DAT-G01R : 3 DBI DIPOLE ANTENNA - RP-SMA PLUG RIGHT-HAND THREAD DAT5-G01R : 5 DBI DIPOLE ANTENNA - RP-SMA PLUG RIGHT-HAND THREAD PAT-G01R : 9DBI PATCH ANTENNA WITH RP-SMA PLUG RIGHT HAND  THREAD DEFAULT CABLE.  (SMA JACK RIGHT HAND THREAD W/O DEFAULT CABLE) SEC-G01R : 15CM EXTENSION CABLE  ( FOR SAT-G01R / DAT-G01R / DAT5-G01R ) - RFC-G01R : 1M EXTENSION CABLE ( FOR PAT-G01R ) PARANI-UD100-G03 SENA PARANI TRANSMISSOR BLUETOOTH 4.0 USB TAGS DE PARANI-UD100-G03: SAT-G01R, DAT-G01R, DAT5-G01R, PAT-G01R, SEC-G01R, RFC-G01R, PARANI-UD100-G03, PARANI-UD100, BLUETOOTH LONG RANGE, BLUETOOTH DE LONGA DISTANCIA, RECEPTOR BLUETOOTH, UD100-G04, PARANI-UD100, BLUETOOTH USB ADAPTER UD100, PARANI UD100, UD100-G03, PAT-G01R, CONVERSOR SERIAL SEM FIO, BLUETOOTH USB ADAPTER, BLUETOOTH LONG RANGE, BLUETOOTH DE LONGO ALCANCE, RFC-G01R, DAT5-G01RDAT-G01R, SENA INDUSTRIAL, S7A-IW04, 8154A-IW04
