Especificações Técnicas

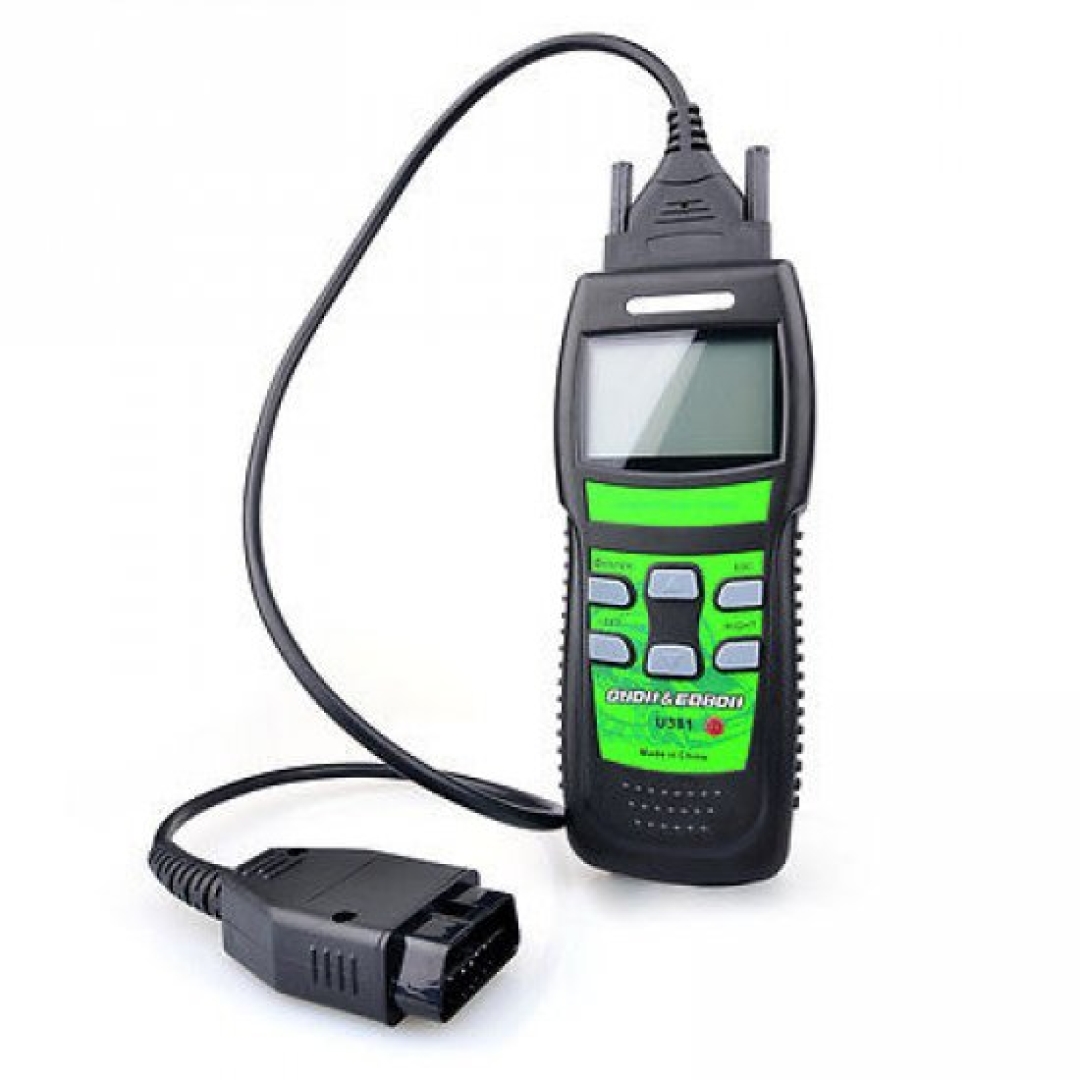

DESCRIPTION PRODUCT NAME: U381 OBDII/EOBDII MEMO SCANNER (LIVE DATA) PRODUCT MODEL NUMBER: U381 NET WEIGHT: 0.8KG 1.1 TOOL DESCRIPTION 1.LCD DISPLAY, 128X64 PIXEL DISPLAY WITH CONTRAST ADJUSTMENT, BACKLIT 2.ENTER KEY SELECTS DISPLAYED 3.EXIT KEY GO BACK TO THE PREVIOUS SCREENS 4.UP/DOWN ARROWS-MOVES THE SELECTION POINTER AND SCROLLS UP OR DOWN. 5.LEFT/RIGHT ARROWS-SELECT RESPONSES AND MOVES CURSOR. 6.OBDII CONNECTOR CABLE, CONNECT CAR AND THE SCAN TOOL 7.BATTERY COMPARTMENT 1.2 PRODUCT SPECIFICATIONS DISPLAY-BACKLIT LCD,128X64 PIXEL DISPLAY. OPERATING TEMPERATURE0 TO 50 INTERNAL POWER9V CELL EXTERNAL POWER: 10.0 TO 15.5 VOLS PROVIDED VIA VEHICLE BATTERY DIMENSIONS: 195MM LENGTH 81MM WIDTH 32MM HEIGHT OBDII CONNECTOR , 1500MM 1.3 PRODUCT FEATURES WORKS ON ALL 1996 AND NEWER CARS E LIGHT TRUCKS THAT ARE OBD II COMPLIANT (INCLUDING THE VPW, PWM, ISO, KWP 2000. READS AND CLEARS GENERIC AND MANUFACTURER SPECIFIC DIAGNOSTIC TROUBLE CODES (DTCS) TROUBLE CODES DISPLAY ON THE LCD, NEEDNT THE CODE BOOK. SCANNING LIVE DATA READING FREEZE FRAME DATA TESTING I/M READING STATUS READING VEHICLE INFO RESCANNING DATA VEHICLE COVERAGE: GM 96 CURRENT YEAR (OBD-II) FORD 96 CURRENT YEAR (OBD-II) CHRYSLER 96 CURRENT YEAR (OBD-II) TOYOTA 96 CURRENT YEAR (OBD-II) HONDA 96 CURRENT YEAR (OBD-II) NISSAN 96 CURRENT YEAR (OBD-II) ALL OTHER ASIAN AND EUROPEAN 96 CURRENT YEAR (OBD-II) PACKAGE INCLUDES: 1PC X U381 OBD2 SCANNER 1PC X USERS MANUAL 1PC X USB UPDATE CABLE 1PC X DURABLE NYLON STORAGE CASE U381 SCANNER PARA DIAGNÓSTICO DE VEÍCULOS TAGS DE U381: U381, U581, OBDII, OBDII CONNECTOR, ODB2, U381, RASTER, SCANER DE CARRO, SCANNER DE CARRO, SCANNER PARA CARRO, SCANER PARA CARRO, SCANNER AUTOMOTIVO, RASTER SCAN, SCANNER RASTER, U581 OBD2 SCANNER, SCANNER PARA VEÍCULO, OEM

Informações Adicionais
