Especificações Técnicas

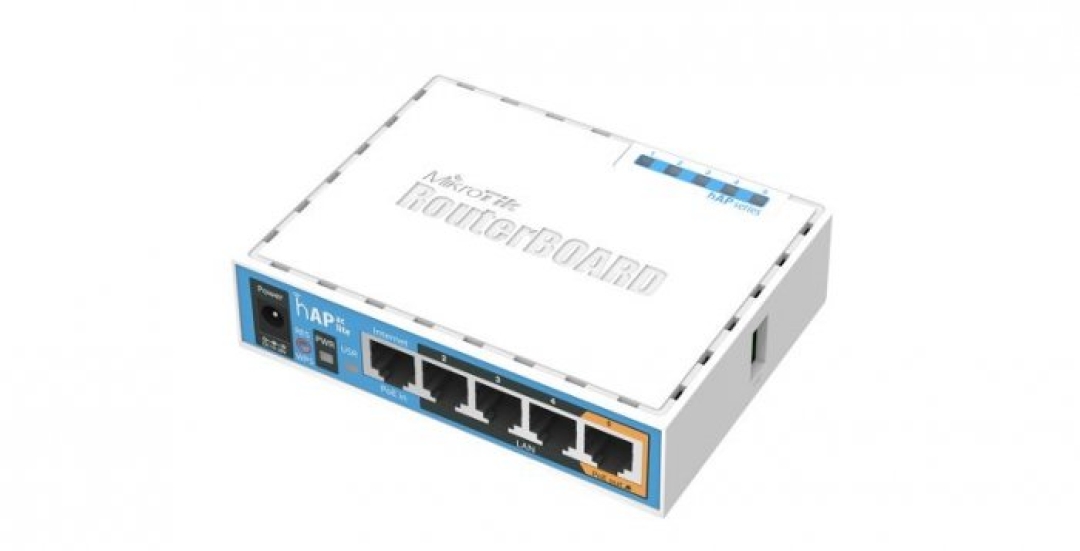

HAP AC LITE THE HAP AC LITE IS A DUAL-CONCURRENT ACCESS POINT, THAT PROVIDES WIFI COVERAGE FOR 2.4GHZ AND 5GHZ FREQUENCIES AT THE SAME TIME. UNIT IS EQUIPPED WITH A 650MHZ CPU, 64MB RAM, FIVE 10/100MBPS ETHERNET PORTS (POE OUTPUT ON PORT #5), DUAL-CHAIN 802.11B/G/N 2.4GHZ WIRELESS, SINGLE CHAIN 802.11AC 5GHZ WIRELESS, USB PORT FOR 3G/4G MODEM AND A ROUTEROS L4 LICENSE. WE HAVE TWO VERSIONS AVAILABLE - RB952UI-5AC2ND (INTERNATIONAL) AND RB952UI-5AC2ND-US (USA). RB952UI-5AC2ND-US (USA) IS FACTORY LOCKED FOR 2412-2462MHZ, 5170-5250MHZ AND 5725-5835MHZ FREQUENCIES. THIS LOCK CAN NOT BE REMOVED. RB952UI-5AC2ND (INTERNATIONAL) SUPPORTS 2412-2484MHZ AND 5150MHZ - 5875MHZ RANGE. PRODUCT SPECIFICATIONS DETAILS PRODUCT CODE RB952UI-5AC2ND CPU NOMINAL FREQUENCY 650 MHZ CPU CORE COUNT 1 SIZE OF RAM 64 MB 10/100 ETHERNET PORTS 5 WIRELESS CHIP MODEL QCA-9887 WIRELESS STANDARDS 802.11A/N/AC SECONDARY WIRELESS CHIP MODEL QCA9531 SECONDARY WIRELESS STANDARDS 802.11B/G/N NUMBER OF USB PORTS 1 POWER JACK 1 SUPPORTED INPUT VOLTAGE 10 V - 30 V POE IN YES POE OUT YES DIMENSIONS 113 X 89 X 28MM OPERATING SYSTEM ROUTEROS TESTED AMBIENT TEMPERATURE -30 70 C LICENSE LEVEL 4 ANTENNA GAIN 2 CPU QCA9531 MAX POWER CONSUMPTION 8W USB SLOT TYPE USB TYPE A USB POWER RESET YES NUMBER OF CHAINS 1 STORAGE TYPE FLASH STORAGE SIZE 16 MB SUGGESTED PRICE $49.95 WIRELESS SPECIFICATIONS 5 GHZ   TRANSMIT POWER (DBM) RECEIVE SENSITIVITY TRANSMIT POWER (MW) 6MBIT/S 23 -93 200 54MBIT/S 20 -75 100 MCS0 23 -93 200 MCS7 19 -71 79 MCS9 16 -63 40 2.4 GHZ   TRANSMIT POWER (DBM) RECEIVE SENSITIVITY TRANSMIT POWER (MW) 1MBIT/S 22 -96 158 11MBIT/S 22 -89 158 6MBIT/S 20 -93 100 54MBIT/S 18 -74 63 MCS0 20 -93 100 MCS7 16 -71 40 RB952UI-5AC2ND MIKROTIK ROUTERBOARD RB952UI HAP AC LITE TAGS DE RB952UI-5AC2ND: RB952UI-5AC2ND, MIKROTIK RB952UI-5AC2ND, ROUTERBOARD RB952UI-5AC2ND, ROUTERBOARD RB952UI, MIKROTIK RB952UI, MIKROTIK HAP AC
