Especificações Técnicas

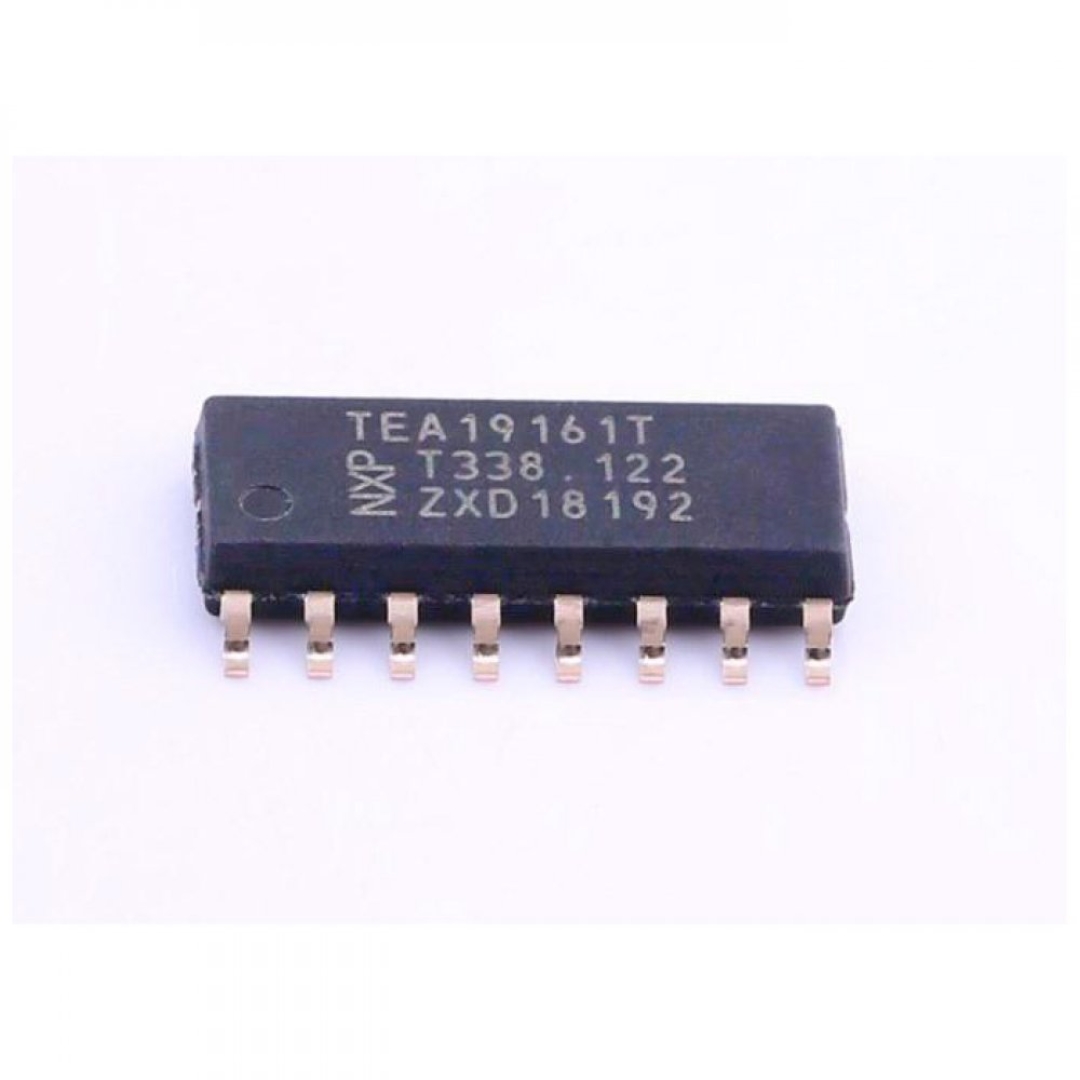

THE TEA19161T AND TEA19162T ARE COMBINED CONTROLLER ICS FOR RESONANT TOPOLOGIES INCLUDING PFC. THEY PROVIDE HIGH EFFICIENCY AT ALL POWER LEVELS. TOGETHER WITH THE TEA1995T DUAL LLC RESONANT SR CONTROLLER, A COST-EFFECTIVE RESONANT POWER SUPPLY CAN BE BUILT. THIS POWER SUPPLY MEETS THE EFFICIENCY REGULATIONS OF ENERGY STAR, THE DEPARTMENT OF ENERGY (DOE), THE ECO-DESIGN DIRECTIVE OF THE EUROPEAN UNION, THE EUROPEAN CODE OF CONDUCT, AND OTHER GUIDELINES. RESONANT TOPOLOGIES SHOW EXCELLENT EFFICIENCIES AT HIGH-POWER LEVELS, AT LOWER LEVELS ITS EFFICIENCY REDUCES BECAUSE OF THE RELATIVELY HIGH MAGNETIZING CURRENT AND SWITCHING LOSSES. THEREFORE, AT LOW-POWER LEVELS THE TEA19161T (LLC) SWITCHES TO A, NEWLY INTRODUCED, LOW-POWER MODE. THIS MODE OPERATES IN THE POWER REGION BETWEEN CONTINUOUS SWITCHING (ALSO CALLED HIGH-POWER MODE) AND BURST MODE. THE TEA19161T IS DESIGNED TO COOPERATE WITH THE TEA19162T POWER FACTOR CONTROL (PFC) CONTROLLER. TO ENSURE COMMUNICATIONS REGARDING START-UP AND PROTECTIONS, THE TEA19161T CONTAINS A DIGITAL CONTROL. THE DIGITAL CONTROL ALSO ENABLES A FAST LATCH RESET MECHANISM. TO MAXIMIZE THE OVERALL SYSTEM EFFICIENCY AT LOW OUTPUT POWER LEVELS, THE TEA19161T SETS THE TEA19162T TO OPERATE IN BURST MODE. USING THE TEA19161T/TEA19162T/TEA1995T COMBINATION, A HIGHLY EFFICIENT AND RELIABLE POWER SUPPLY, PROVIDING 90W TO 500W, CAN BE DESIGNED WITH A MINIMUM OF EXTERNAL COMPONENTS. THE SYSTEM PROVIDES A VERY LOW NO-LOAD INPUT POWER ( LESS FEATURES DISTINCTIVE FEATURES: COMPLETE ALITY AS A COMBINATION WITH TEA19162T INTEGRATED HIGH-VOLTAGE START-UP INTEGRATED HIGH-VOLTAGE LEVEL SHIFTER (LS) VERY FAST START-UP ( CONTINUOUSLY VSUPIC REGULATION VIA THE SUPHV PIN DURING START-UP AND PROTECTION, ALLOWING MINIMUM SUPIC CAPACITOR VALUES OPERATING FREQUENCIES ARE OUTSIDE THE AUDIBLE AREA AT ALL OPERATING MODES INTEGRATED SOFT START POWERGOOD MAXIMUM 500 KHZ HALF-BRIDGE SWITCHING FREQUENCY GREEN FEATURES: VERY HIGH EFFICIENCY FROM LOW LOAD TO HIGH LOAD COMPLIANT WITH ENERGY USING PRODUCT DIRECTIVE (EUP) LOT 6 EXCELLENT NO-LOAD INPUT POWER ( REGULATED LOW OPTO CURRENT, ENABLING LOW NO-LOAD POWER CONSUMPTION VERY LOW SUPPLY CURRENT DURING NON-SWITCHING STATE IN BURST MODE ADAPTIVE NON-OVERLAP TIME PROTECTION FEATURES: SUPPLY UNDERVOLTAGE PROTECTION (UVP) ADJUSTABLE LATCH OR RESTART FOR OVERPOWER PROTECTION (OPP) ON-CHIP OVERTEMPERATURE PROTECTION (OTP) CAPACITIVE MODE REGULATION (CMR) ACCURATE OVERVOLTAGE PROTECTION (OVP) MAXIMUM ON-TIME PROTECTION FOR LOW-SIDE AND HIGH-SIDE DRIVER OUTPUT OVERCURRENT PROTECTION (OCP)   TARGET APPLICATIONS DESKTOP AND ALL-IN-ONE PCS LCD TELEVISION NOTEBOOK ADAPTER PRINTERS GAMING CONSOLE POWER SUPPLIES TEA19161T RESONANT POWER SUPPLY CONTROL IC SOP-16 TAGS DE TEA19161T: TEA19162T, EA19162, 19162T, TEA19161T, TEA19161, 19161, SWITCHING CONTROLLERS RESONANT POWER SUPPLY CONTROL IC, PMIC - POWER MANAGEMENT ICS, DIGITAL CONTROLLER FOR HIGH-EFFICIENCY RESONANT POWER SUPPLY, TEA1995T DUAL LLC RESONANT SR CONTROLLER, TEA19162, CI PFC DE FONTE ATX, CI PARA PFC FONTE ATX, CI PFC, PFC IC

Informações Adicionais
