Especificações Técnicas

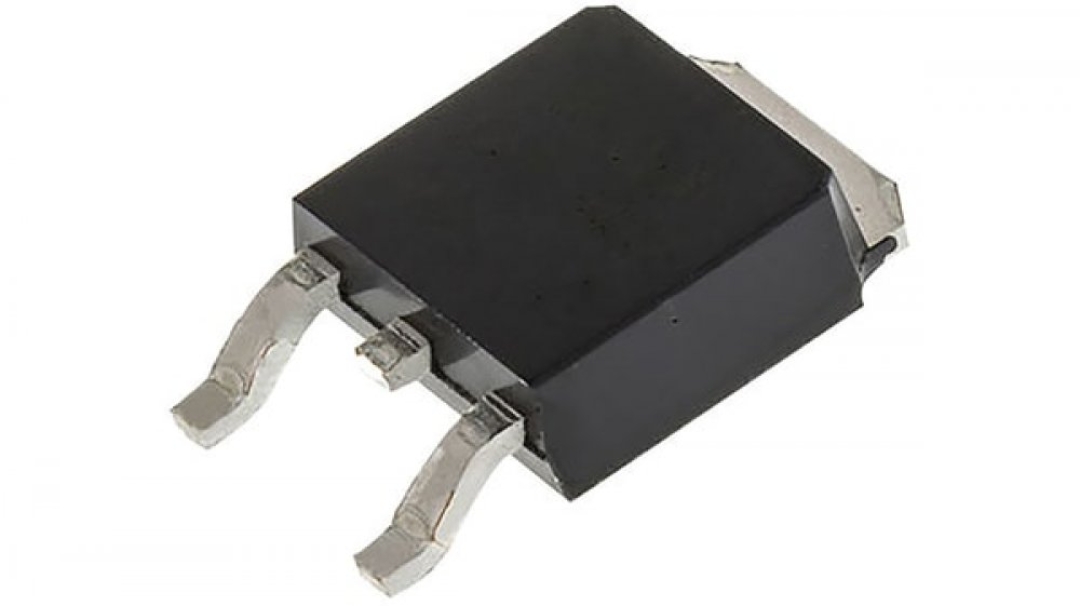

GENERAL DESCRIPTION AP1084 IS A LOW DROPOUT POSITIVE ADJUSTABLE OR FIXED-MODE REGULATOR WITH 5.0A OUTPUT CURRENT CAPABILITY. THE PRODUCT IS SPECIFICALLY DESIGNED TO PROVIDE WELL-REGULATED SUPPLY FOR LOW VOLTAGE IC APPLICATIONS SUCH AS HIGH-SPEED BUS TERMINATION AND LOW CURRENT 3.3V LOGIC SUPPLY. AP1084 IS ALSO WELL SUITED FOR OTHER APPLICATIONS SUCH AS VGA CARDS. AP1084 IS GUARANTEED TO HAVE LOWER THAN 1.4V DROPOUT AT FULL LOAD CURRENT MAKING IT IDEAL TO PROVIDE WELL-REGULATED OUTPUTS OF 1.25 TO 3.3V WITH 4.7 TO 12V INPUT SUPPLY. FEATURES - 1.4V MAXIMUM DROPOUT AT FULL LOAD CURRENT - BUILT-IN THERMAL SHUTDOWN - OUTPUT CURRENT LIMITING - ADJUSTABLE OUTPUT VOLTAGE OR FIXED 1.5V, 1.8V, 2.5V, 3.3V, 5.0V - FAST TRANSIENT RESPONSE - GOOD NOISE REJECTION - TO252-3L - LEAD FREE FINISH/ROHS COMPLIANT (NOTE 1) AP1084DG-13 REGULADOR AJUSTAVEL DE TENSAO 5A TO252-3L MAIORES DETALHES DE AP1084DG-13 NO SITE DO FABRICANTE: HTTP://ES.DATASHEETBANK.COM/DATASHEET-DOWNLOAD/736754/1/DIODES/AP1084DG-13 TAGS DE AP1084DG-13: G1084-33T43UF, G1084-33, G1084T43UF, G1084, G1084-33-TO252-3L, AP1084DG-13, AP1084DG-1, G1084-33, G1084, REGULADOR DE TENSAO AJUSTAVEL, REGULADOR DE TENSAO LINEAR IC POSITIVO AJUSTÁVEL 1 SAIDA 5A TO-252-3, REGULADOR DE 3V, REGULADOR DE 5V
