Especificações Técnicas

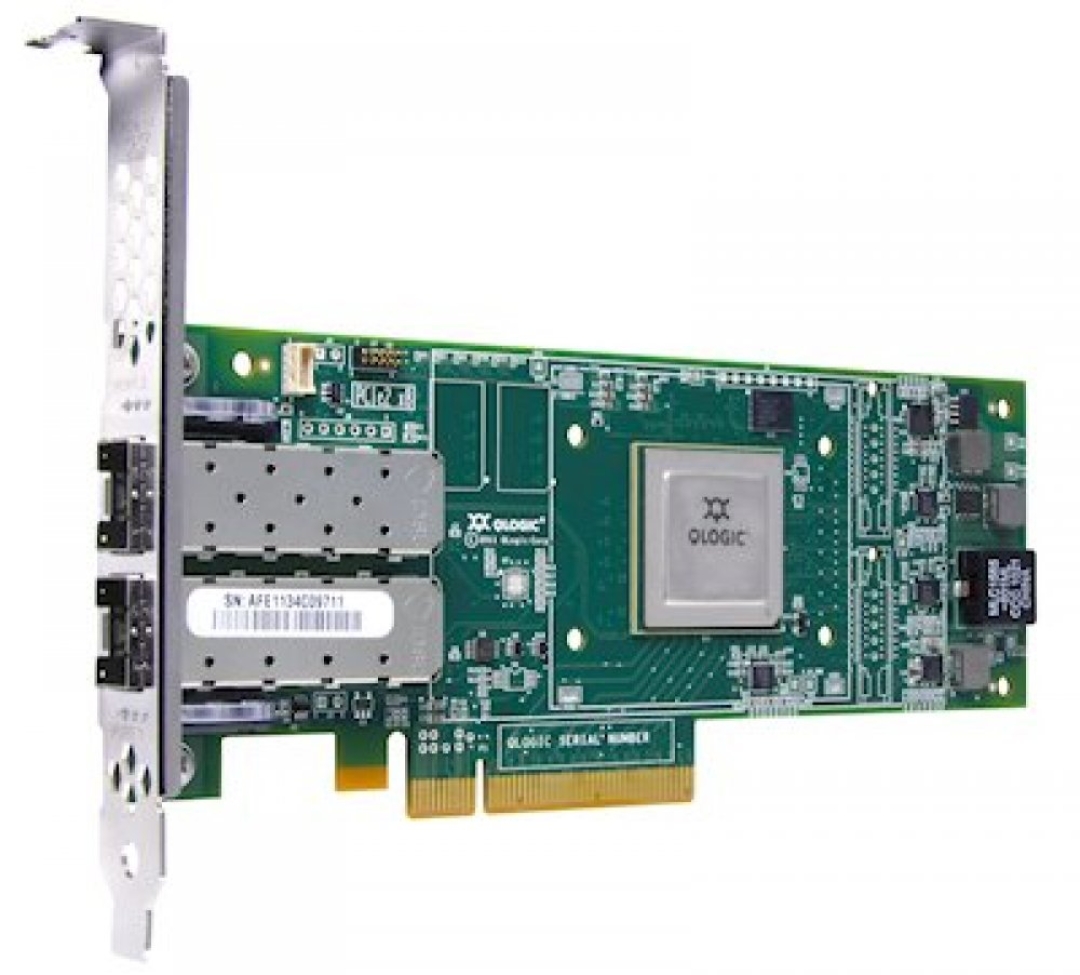

FEATURES THE QLOGIC 16GB FC SINGLE-PORT AND DUAL-PORT HBAS HAVE THE FOLLOWING FEATURES: PORT ARCHITECTURE THAT OFFERS INDEPENDENT ALITY ON EACH PORT -- INDEPENDENT CPU, ISOLATED MEMORY AND INDEPENDENT FIRMWARE IMAGE -- PROVIDES HIGHER RELIABILITY AND PREDICTABLE PERFORMANCE. SUPPORT FOR MESSAGE SIGNALED INTERRUPTS EXTENDED (MSI-X) IMPROVES HOST UTILIZATION AND ENHANCES APPLICATION PERFORMANCE. SUPPORT FOR 16 GB, 8 GB, AND 4 GB FC DEVICES. FULL HARDWARE OFFLOAD FOR FIBRE CHANNEL PROTOCOL. SUPPORT FOR PCIE 2.0 AND PCIE 3.0 HOST INTERFACES. COMPREHENSIVE VIRTUALIZATION CAPABILITIES WITH SUPPORT FOR N_PORT ID VIRTUALIZATION (NPIV) WITH 255 N_PORT IDS PER PORT. HOST-TO-FABRIC FIBRE CHANNEL SECURITY PROTOCOL (FC-SP) AUTHENTICATION. A COMMON DRIVER MODEL ALLOWS A SINGLE DRIVER TO SUPPORT ALL QLOGIC HBAS ON A GIVEN OPERATING SYSTEM. UNIVERSAL BOOT CAPABILITY ALLOWS THE APPROPRIATE BOOT ENVIRONMENT TO BE AUTOMATICALLY SELECTED FOR ANY GIVEN HARDWARE. BOOT FROM SAN CAPABILITY REDUCES THE SYSTEM MANAGEMENT COSTS AND INCREASES UPTIME. TECHNICAL SPECIFICATIONS THE QLOGIC 16GB FC SINGLE-PORT AND DUAL-PORT HBAS HAVE THE FOLLOWING SPECIFICATIONS: BASED ON THE QLOGIC QLE2660 (SINGLE PORT) AND QLE2662 (DUAL PORT) ADAPTERS HOST INTERFACE: PCI EXPRESS 2.0 X8 OR PCI EXPRESS 3.0 X4 (PHYSICAL CONNECTOR IS PCIE X8) SINGLE-PORT OR DUAL-PORT SFP BASED ADAPTERS SUPPORT FOR 16 GB, 8 GB AND 4 GB FC LINK SPEEDS, WHICH ARE AUTOMATICALLY NEGOTIATED DATA RATE: 14.025 GBPS (1600 MBPS), 8.5 GBPS (800 MBPS), AND 4.25 GBPS (400 MBPS) AUTOSENSING (PER PORT), WITH FULL DUPLEX PERFORMANCE: OVER 500,000 IOPS PER PORT (OVER 1,200,000 IOPS PER DUAL-PORT ADAPTER) THROUGHPUT: 3,200 MB PER PORT, FULL-DUPLEX 2048 CONCURRENT LOGINS 255 N_PORT IDS (NPIV) PER PORT INDUSTRY STANDARDS: CURRENT ANSI/IETF STANDARDS: FC-PI-4, FC-PI-5, FC-FS-2 WITH AMENDMENT 1, FC-AL-2 WITH AMENDMENTS 1 AND 2, FC-LS-2, FC-GS-6, FC-DA, FC-SP-2, FCP-4, FC-MJS, FC-SB-4, FC-SP, SPC-4, SBC-3, SSC-3, AND RFC4338 LEGACY ANSI/IETF STANDARDS: FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-FS, FC-AL, FC-GS-2/3/4/5, FCP, FCP-2, FC-SB-2, FC-FLA, FC-HBA, FC-PLDA, FC-TAPE, FC-MI, SPC-3, SBC-2, SSC-2, AND RFC2625 TOPOLOGY: POINT-TO-POINT AND SWITCHED FABRIC SUPPORTED MEDIA: 16 GBPS FIBRE CHANNEL LC SFP SHORT WAVE OPTICAL TRANSCEIVERS (850 NM), HOT-PLUGGABLE 00Y3341 IBM QLOGIC QLE2662 16GB FC DUAL PORT HBA MAIORES DETALHES DE 00Y3341 NO SITE DO FABRICANTE: HTTPS://LENOVOPRESS.COM/TIPS0954-QLOGIC-16GB-FC-HBA#OS-00Y3341 TAGS DE 00Y3341: 00Y3341, 00Y3342, 00Y3343, 00Y3344, QLE2662, X3250 M6 3943, X3250 M6 3633, X3550 M5 8869, X3650 M5 8871, X3850 X6, X3950 X6 6241, E7 V4, NX360 M5, 5465, E5-2600 V4, SD350, 5493, X3100 M5, 5457, X3250 M5, 5458, X3500 M5, 5464, X3550 M5, 5463, X3650 M5, 5462, X3850 X6, X3950 X6, 6241, E7 V3, NX360 M5, 5465, SERVERS XEON, SERVIDORES, XEON, 98Y7535, QLE2660

Informações Adicionais
