Especificações Técnicas

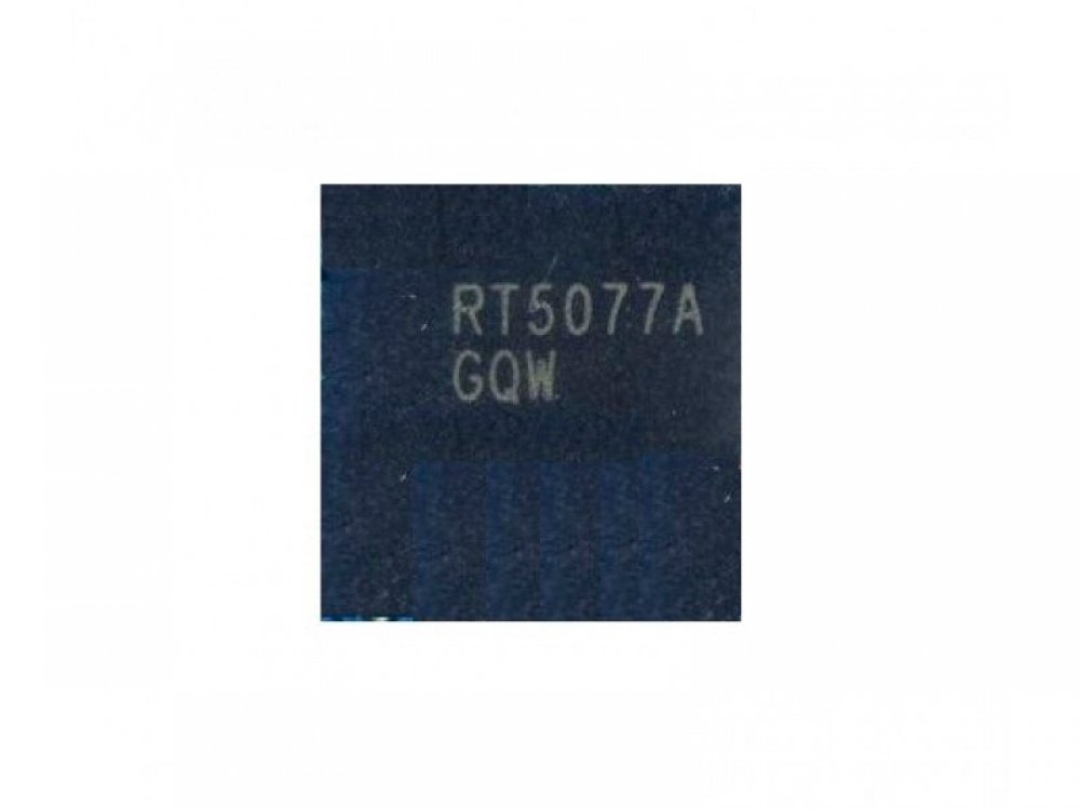

OUTROS NUMEROS DE PEÇA PARA ESTE COMPONENTE: RT5077AGQW THE RT5077A IS A HIGHLY-INTEGRATED MULTI-CHANNEL POWER MANAGEMENT SOLUTIONS TO MEET THE PERFORMANCE, EFFICIENCY AND FEATURE REQUIREMENTS FOR INTEL GLK PLATFORM. THIS DEVICE PROVIDES 2 STEP-DOWN CONTROLLERS, 4 STEP-DOWN CONVERTERS, 1 LDO AND 1 LOAD SWITCH IN ONE PACKAGE. APPLICATIONS CHROME BOOK AND TABLET COMPUTER FEATURES HIGHLY INTEGRATION : 2 CONTROLLERS, 4 CONVERTERS, 1 LDOS AND 1 SWITCHES I2C SLAVE CONTROLLER 1% REFERENCE ACCURACY INTERNAL SOFT-START TO REDUCE INRUSH CURRENT INTEGRATED SEQUENCING CONTROL FOR GEMINI LAKE PURE MLCC CAP STABLE OTP, UVP, OVP, OCP LOAD DISCHARGE FUNCTION SUPPORT S0IX STATE FOR WINDOWS CONNECTED STANDBY COST EFFECTIVE 52-LEAD WQFN PACKAGE   RT5077A STATUS ACTIVE VIN (MIN) (V) 5 VIN (MAX) (V) 23 NUMBER OF CHANNELS 8 NUMBER OF BUCK CONVERTERS 4 NUMBER OF BOOST CONVERTERS 0 NUMBER OF NEGATIVE OUTPUTS 0 NUMBER OF LED DRIVERS 0 NUMBER OF LDO REGULATORS 1 APPLICATION PC FEATURES ACOT CONTROL;ADJUSTABLE CURRENT LIMIT;BUILT-IN BOOTSTRAP SWITCH;COT CONTROL;CYCLE-BY-CYCLE CURRENT LIMIT;DIODE EMULATION MODE;ENABLE INPUT;FAST TRANSIENT RESPONSE;I2C;OCP;OVP;POWER GOOD;SCP;STABLE WITH CERAMIC CAPACITOR;UVP PACKAGE TYPE WQFN6X6-52 RT5077A POWER MANAGEMENT IC FOR INTEL GLK PLATFORM MAIORES DETALHES DE RT5077A NO SITE DO FABRICANTE: HTTPS://WWW.RICHTEK.COM/PRODUCTS/POWER%20MANAGEMENT%20IC/RT5077A?SC_LANG=EN&SPEC TAGS DE RT5077A: RT5077A, RT5077, RT5077AGQW

Informações Adicionais
