Especificações Técnicas

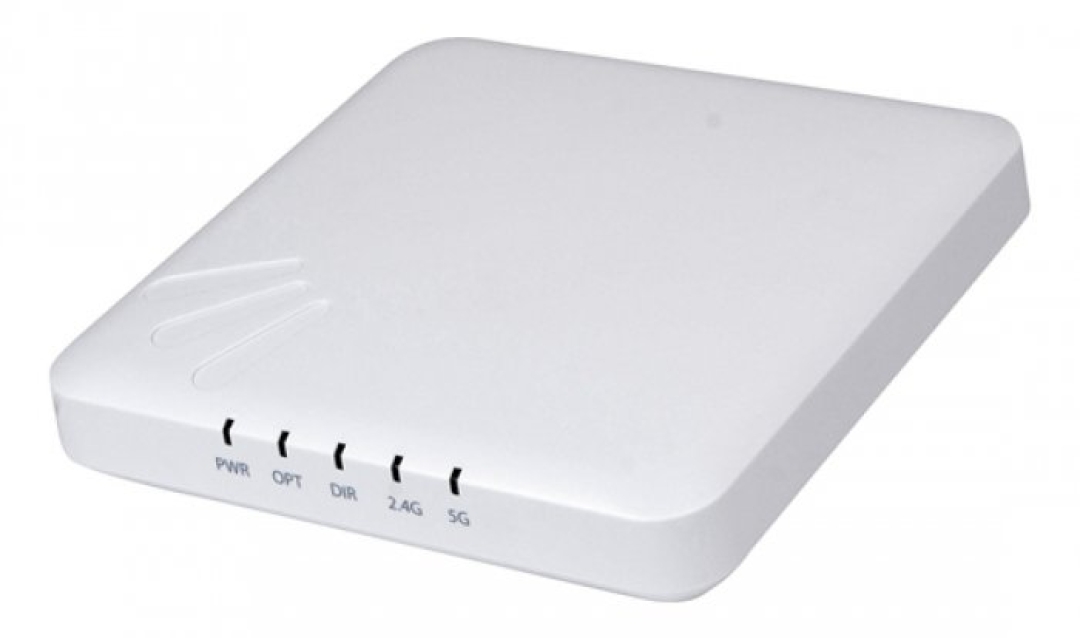

ZONEFLEX R300 SPECIFICATIONS   PHYSICAL CHARACTERISTICS POWER DC INPUT: 12 VDC 1.0A POWER OVER ETHERNET 802.3 AF PHYSICAL SIZE 13CM (L), 13CM (W), 2.8CM (H) 5.1 IN (L), 5.1 IN (W), 1.1 IN (H) WEIGHT 397 GRAMS (0.875 LBS.) ETHERNET PORTS 1 AUTO MDX, AUTO-SENSING 10/100/1000 MBPS, RJ-45, POE PORT LOCK OPTIONS HIDDEN LATCHING MECHANISM KENSINGTON LOCK HOLE T-BAR TORX ENVIRONMENTAL CONDITIONS OPERATING TEMPERATURE: 0°C - 40°C OPERATING HUMIDITY: 10% - 95% NON-CONDENSING POWER DRAW DC INPUT IDLE: 1.6W TYPICAL: 3.6W PEAK: 8.4W POWER OVER ETHERNET INPUT IDLE: 3.4W TYPICAL: 5.3W PEAK: 9.7W   PERFORMANCE AND CAPACITY MAX PHY RATE 300 MBPS / RADIO CONCURRENT STATIONS UP TO 256 CLIENTS PER AP SIMULTANEOUS VOIP CLIENTS UP TO 30   RF ANTENNA ADAPTIVE ANTENNA THAT PROVIDES UP TO 128 UNIQUE ANTENNA PATTERNS 64 PATTERNS PER BAND RF POWER OUTPUT (AGGREGATED) 26 DBM FOR 2.4GHZ- 24 DBM FOR 5GHZ- PHYSICAL ANTENNA GAIN UP TO 3 DBI PER SPATIAL STREAM BEAMFLEX1 SINR TX GAIN UP TO 4 DB INTERFERENCE MITIGATION UP TO 10 DB MINIMUM RX SENSITIVITY UP TO -101 DBM   MANAGEMENT DEPLOYMENT OPTIONS STANDALONE (INDIVIDUALLY MANAGED) MANAGED BY ZONEDIRECTOR ( 9.8.1 E ABOVE) MANAGED BY FLEXMASTER MANAGED BY SMARTCELL (2.5.1 901-R300-US02 RUCKUS ACCESS POINT ZONEFLEX R300 DUAL-BAND TAGS DE 901-R300-US02: 901-R300-US02, RUCKUS 901-R300-US02, ACCESS POINT 901-R300-US02, ACCESS POINT RUCKUS 901-R300-US02, ACCESS POINT RUCKUS R300, RUCKUS R300, RUCKUS R300 DUAL BAND, RUCKUS ACCESS POINT WIFI R300
