Especificações Técnicas

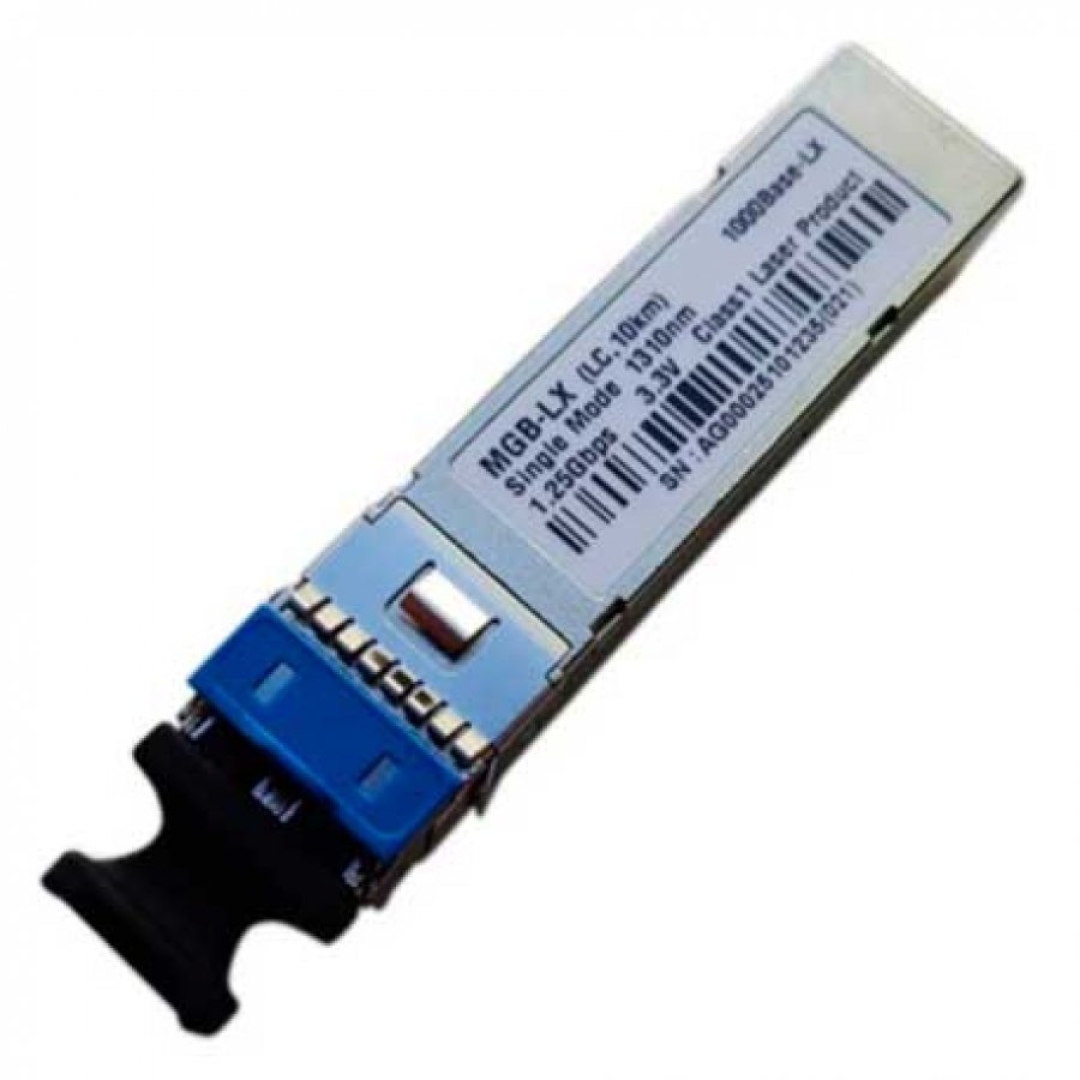

THE MGBLX BY PLANET TECHNOLOGY IS AN 1000MBPS GIGABIT ETHERNET SFP FIBER TRANSCEIVER. PACKAGE: SFP PHY TYPE: 1000BASELX FIBER TYPE: SINGLE MODE CONNECTOR: LC DDM: YES WAVELENGTH: 1310NM MAX. DISTANCE:  20KM OPERATING TEMPERATURE: 0 TO 60C TAA COMPLIANT MODULO MINI GBIC MONOMODO MGB LX SM 1000BLX MGBIC 10KM THE MGB FAMILY CONSISTS OF SMALL FORM FACTOR PLUGGABLE (SFP) TRANSCEIVER MODULES THAT ARE SPECIFICALLY DESIGNED FOR HIGH PERFORMANCE INTEGRATED DUPLEX DATA LINK OVER SINGLE MODE OPTICAL FIBER. THESE TRANSCEIVER MODULES ARE COMPLIANT WITH THE SFP MULTISOURCE AGREEMENT (MSA) AND HOT PLUGGABLE. THESE MODULES OFFER AN EASY WAY TO BE INSTALLED IN SFP MSA COMPLIANT PORTS AT ANY TIME WITHOUT THE INTERRUPTION OF THE HOST EQUIPMENTS OPERATION.   THE MGB FAMILY: SFP MINIGBIC GIGABIT ETHERNET MODULES CAN BE INSTALLED IN PLANET SWITCH PRODUCTS WITH SFP MINIGBIC INTERFACE. THE DEPLOYMENT DISTANCE CAN BE EXTENDED FROM 100 METERS (TP), 550 METERS (MULTIMODE, LC), UP TO 120 KILOMETERS (SINGLEMODE, LC).   TO FILL THE INCREASE DEMAND OF INDUSTRIAL ETHERNET FIBER SOLUTION, PLANET RELEASES THE MGBT SERIES 1000BASESX / LX TRANSCEIVERS THAT CAN OPERATE RELIABLY IN ELECTRICALLY HARSH, CLIMATICALLY DEMANDING, AND WIDE TEMPERATURE RANGE (40 TO 75) ENVIRONMENT. THE MGBT SERIES 1000BASESX / LX TRANSCEIVERS PROVIDE EASY AND FAST 1000BASESX / LX CONNECTION FOR PLANET WIDE TEMPERATURE INDUSTRIAL EQUIPMENTS. COMPLY WITH THE IEEE 802.3AB / 802.3Z GIGABIT ETHERNET STANDARD 1X 1000MBPS TP/ LC FIBER PORT INDUSTRY STANDARD SMALL FORM PLUGGABLE (SFP) PACKAGE (FOR MODEL MGBTSX / MGBTLX / MGBTL30 / MGBTL70) DUPLEX LC CONNECTOR DIFFERENTIAL PECL INPUTS AND OUTPUTS SINGLE POWER SUPPLY 3.3V TTL SIGNAL DETECT INDICATOR HOT PLUGGABLE CLASS 1 LASER PRODUCT COMPLIES WITH EN 608251 PLUG AND PLAY INSTALLATION 0 TO 50 DEGREE C OPERATION TEMPERATURE FOR MGBGT / MGBSX / MGBLX / MGBL30 / MGBL50 / MGBL70 / MGBL120 / MGBLA10 / MGBLB10 / MGBLA20 / MGBLB20 / MGBLA40 / MGBLB40 40 TO 75 DEGREE C OPERATION TEMPERATURE FOR MGBTSX / MGBTLX / MGBTL30 / MGBTL70   MGB-LX PLANET TRANSCEIVER SINGLE MODE GBIC 10KM LC MAIORES DETALHES DE MGB-LX NO SITE DO FABRICANTE: HTTP://WWW.PLANET.COM.TW/EN/PRODUCT/PRODUCT.PHP?ID=11027#SPEC TAGS DE MGB-LX: TRANSCEIVER DE 10KM, GBIC DE 10KM, TRANCEIVER 10KM, MINI GBIC 10KM, TRASCEIVER PARA GT802, MGB-LX, MGB, GT802, GT 802, 80X SERIES. GBIC PLANET, FIBRA PLANET, MGB-SERIES, TRANSCIVER PLANET 10KM, TRANSCEIVER GT802, PLANET TECHNOLOGY, SFP-PORT 1000BASE-LX MINI-GBIC MODULE - 10KM, TRASCEIVER MONOMODO 10KM, MONOMODO 20KM, MODULO MINI GBIC MONOMODO MGB LX SM 1000BLX MGBIC 10KM, IEEE 802.3Z
