Especificações Técnicas

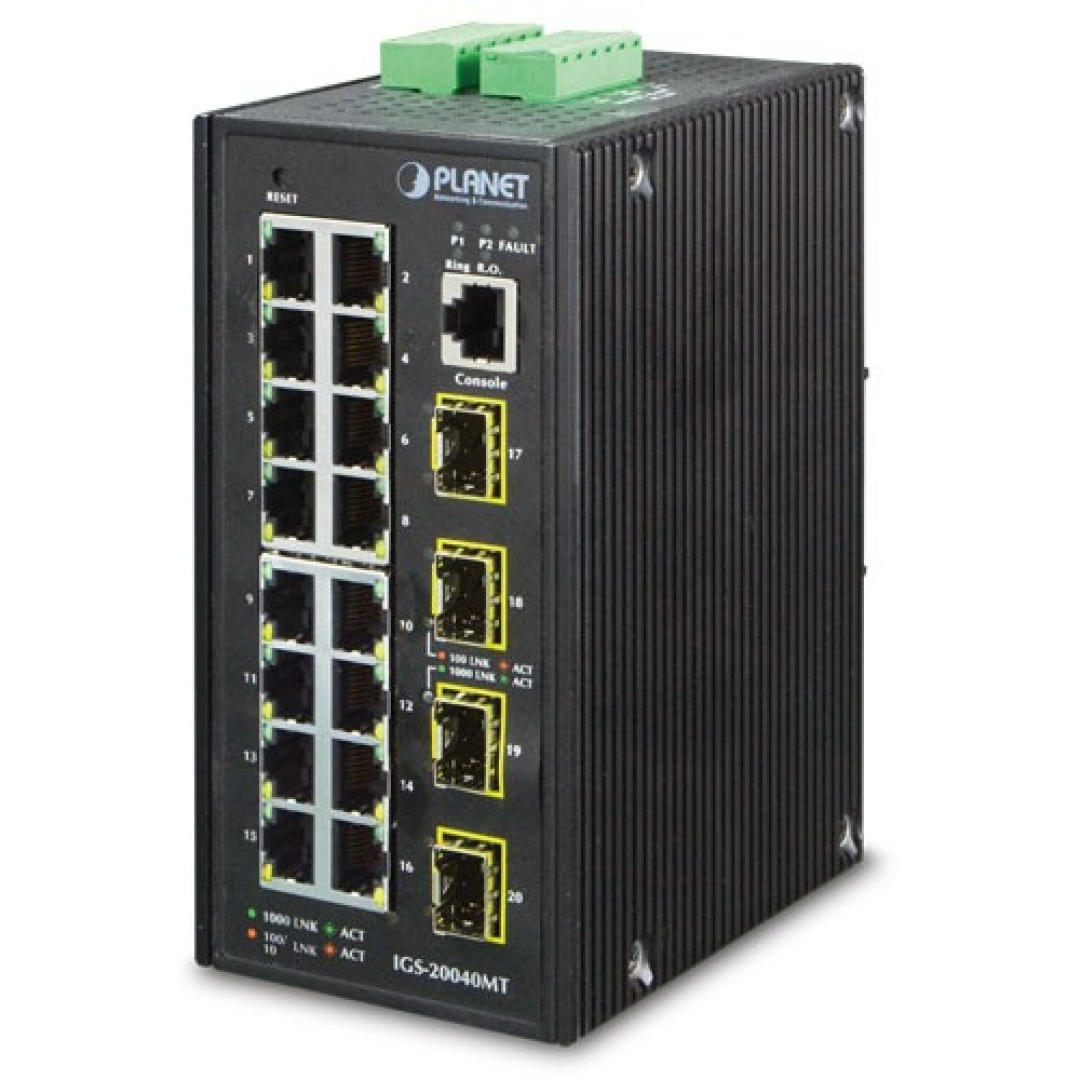

HARDWARE SPECIFICATIONS COPPER PORTS: 16 10/100/1000BASET RJ45 AUTOMDI/MDIX PORTS SFP/MINIGBIC SLOTS:  4 1000BASESX/LX/BX SFP INTERFACES (PORT17 TO PORT20) COMPATIBLE WITH 100BASEFX SFP CONSOLE: 1 X RJ45 SERIAL PORT (115200, 8, N, 1) SWITCH ARCHITECTURE: STOREANDFORWARD SWITCH FABRIC: 40GBPS/NONBLOCKING THROUGHPUT (PACKET PER SECOND): 25.6MPPS ADDRESS TABLE: 8K ENTRIES, AUTOMATIC SOURCE ADDRESS LEARNING AND AGING SHARED DATA BUFFER: 4MBITS FLOW CONTROL: IEEE 802.3X PAUSE FRAME FOR FULLDUPLEX BACK PRESSURE FOR HALFDUPLEX JUMBO FRAME: 9KBYTES RESET BUTTON: 5 SEC: FACTORY DEFAULT ESD PROTECTION: 6KV DC EFT PROTECTION: 6KV DC ENCLOSURE: IP30 ALUMINUM CASE INSTALLATION: DIN RAIL KIT AND WALLMOUNT KIT CONNECTOR: REMOVABLE 6PIN TERMINAL BLOCK FOR POWER INPUT PIN 1/2 FOR POWER 1; PIN 3/4 FOR FAULT ALARM; PIN 5/6 FOR POWER 2 REMOVABLE 6PIN TERMINAL BLOCK FOR DI/DO INTERFACE PIN 1/2 FOR DI 0 E DI 1; PIN 3/4 FOR DO 0 IGS-20040MT PLANET SWITCH INDUSTRIAL L2+ 16-PORT 10/100/1000T MAIORES DETALHES DE IGS-20040MT NO SITE DO FABRICANTE: HTTPS://PLANET.COM.BR/PRODUTOS/?Q=IGS-20040MT TAGS DE IGS-20040MT: , =IGS-20040MT
