Especificações Técnicas

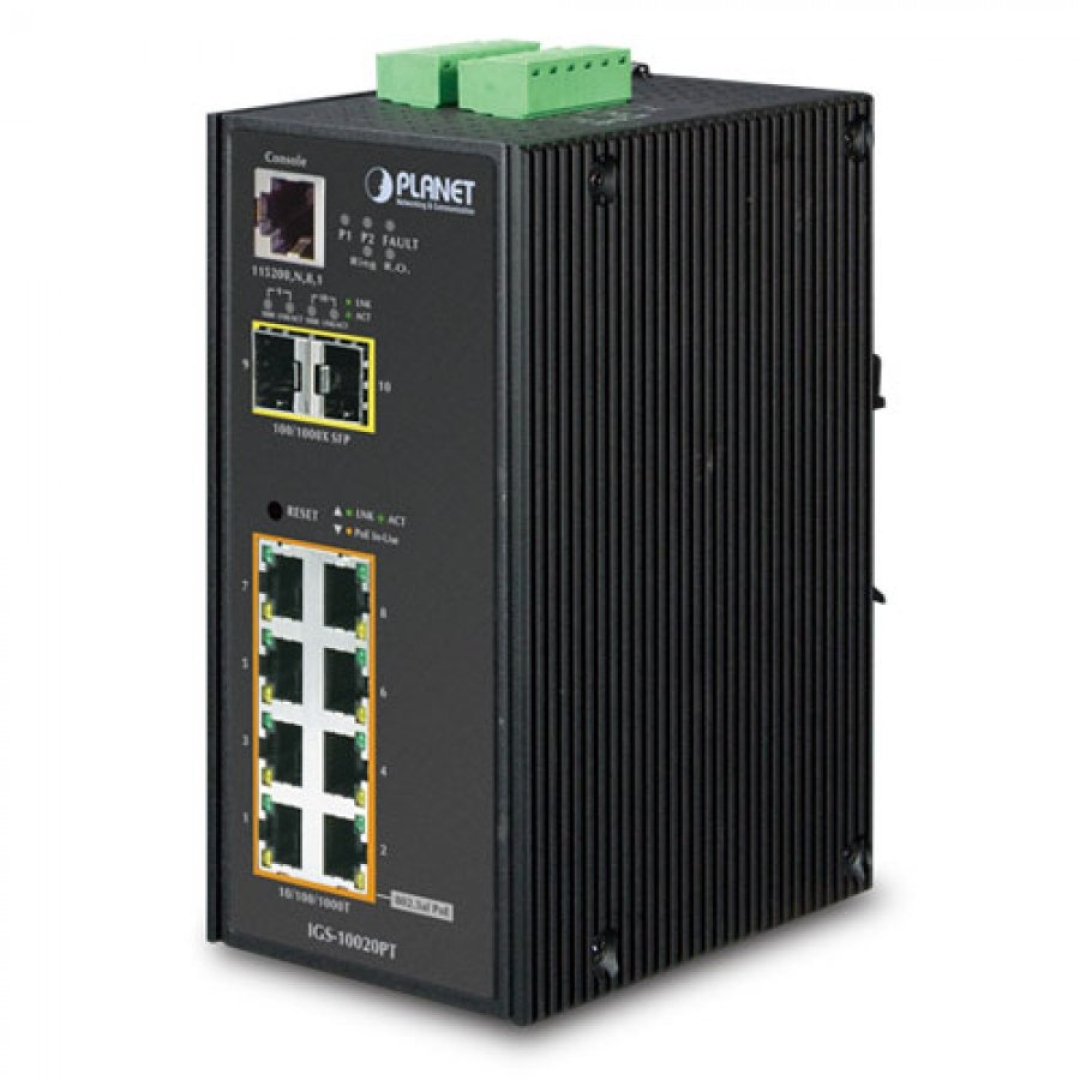

HARDWARE SPECIFICATIONS VERSION 3 COPPER PORTS 8 10/100/1000BASET RJ45 AUTOMDI/MDIX PORTS SFP/MINIGBIC SLOTS 2 1000BASESX/LX/BX SFP INTERFACES (PORT9 AND PORT10) COMPATIBLE WITH 100BASEFX SFP POE INJECTOR PORT 8 PORTS WITH 802.3AT/AF POE INJECTOR WITH PORT1 TO PORT8 CONSOLE 1 X RJ45TORS232 SERIAL PORT (115200, 8, N, 1) SWITCH ARCHITECTURE STOREANDFORWARD SWITCH FABRIC 20GBPS/NONBLOCKING THROUGHPUT (PACKET PER SECOND) 14.8MPPS@ 64BYTES PACKET ADDRESS TABLE 8K ENTRIES, AUTOMATIC SOURCE ADDRESS LEARNING AND AGING SHARED DATA BUFFER 4MBITS FLOW CONTROL IEEE 802.3X PAUSE FRAME FOR FULLDUPLEX BACK PRESSURE FOR HALFDUPLEX JUMBO FRAME 9KBYTES RESET BUTTON > 5 SEC: FACTORY DEFAULT ESD PROTECTION 6KV DC ENCLOSURE IP30 ALUMINUM CASE INSTALLATION DINRAIL KIT AND WALLMOUNT KIT CONNECTOR REMOVABLE 6PIN TERMINAL BLOCK FOR POWER INPUT PIN 1/2 FOR POWER 1, PIN 3/4 FOR FAULT ALARM, PIN 5/6 FOR POWER 2 REMOVABLE 6PIN TERMINAL BLOCK FOR DI/DO INTERFACE PIN 1/2 FOR DI 1 E 2, PIN 3/4 FOR DO 1 IGS-10020PT PLANET SWITCH INDUSTRIAL 8 PORTAS TAGS DE IGS-10020PT: IGS-10020PT, IGS 10020PT, IGS10020PT, IGS-10020PT IND.8P 10/1000 802.3AF POE+2, 8-PORT 10/100/1000T 802.3AF POE + 2-PORT 100/1000X SFP MANAGED SWITCH, PLANET TECHNOLOGY, =IGS-10020PT

Informações Adicionais
