Especificações Técnicas

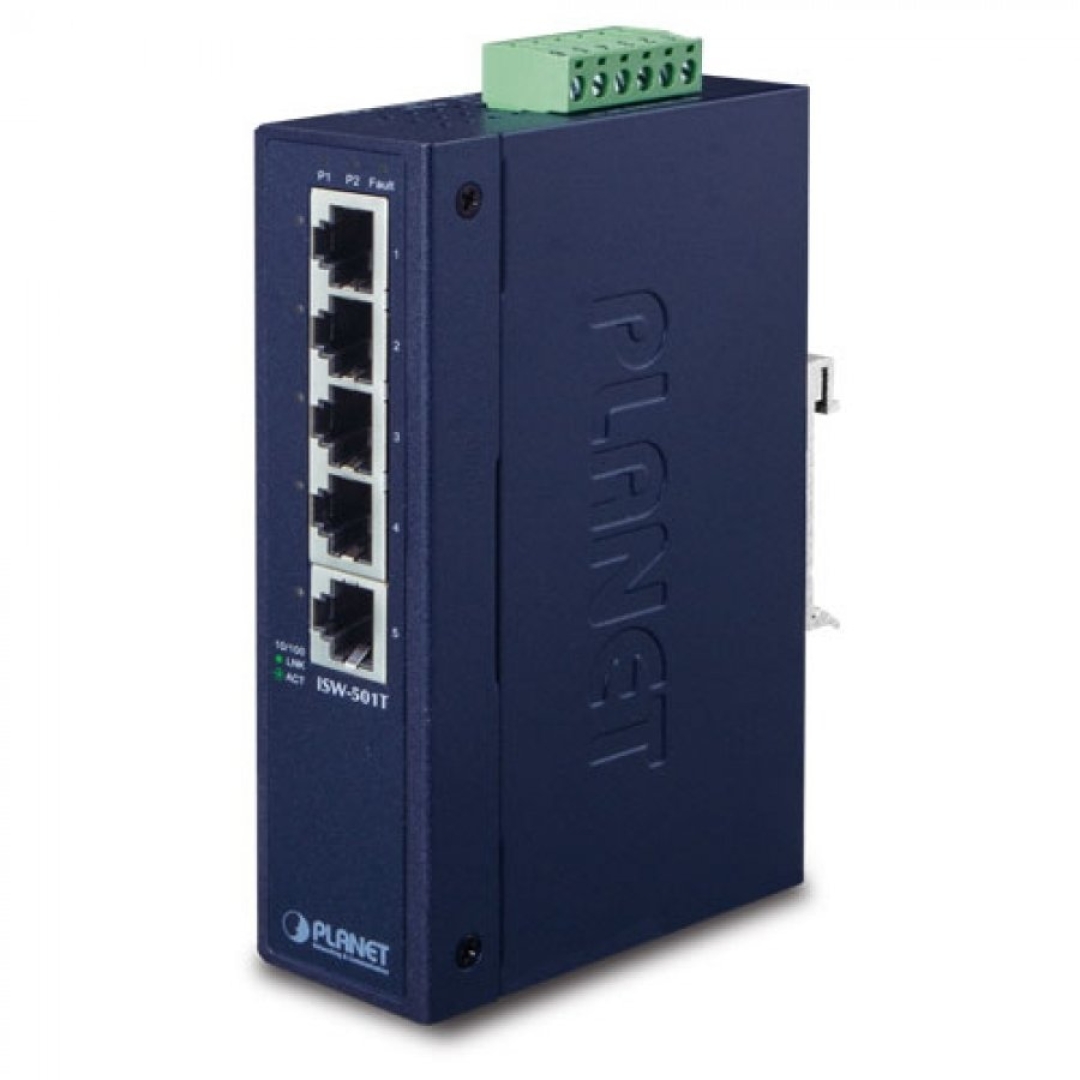

HARDWARE SPECIFICATIONS 10/100BASE-TX AUTO MDI/MDIX PORTS 5 LED INDICATORS 3 X LED FOR SYSTEM AND POWER: GREEN: DC POWER 1 GREEN: DC POWER 2 GREEN: POWER FAULT 1 X LED FOR EACH COPPER PORT GREEN: 10/100 LNK/ACT ENCLOSURE IP30-RATED METAL CASE DIMENSIONS (W X D X H) 135 X 87 X 32 MM WEIGHT 400G ESD PROTECTION 6KV DC EFT PROTECTION 6KV DC POWER REQUIREMENTS 12~48V DC, REDUNDANT POWER WITH POLARITY REVERSE PROTECTION , 24V AC POWER SUPPORT POWER CONSUMPTION/DISSIPATION 1.6 WATTS/5.4BTU INSTALLATION DIN RAIL KIT AND WALL-MOUNT EAR ALARM PROVIDES ONE RELAY OUTPUT FOR POWER FAILURE ALARM RELAY CURRENT CARRY ABILITY: 3A @ DC 30V CONNECTOR REMOVABLE 6-PIN TERMINAL BLOCK PIN 1/2 FOR POWER 1; PIN 3/4 FOR FAULT ALARM; PIN 5/6 FOR POWER 2 SWITCH SPECIFICATIONS SWITCH PROCESSING SCHEME STORE-AND-FORWARD ADDRESS TABLE 1K BUFFER MEMORY EMBEDDED 448K BITS PACKET BUFFER FLOW CONTROL BACK PRESSURE FOR HALF DUPLEX, IEEE 802.3X PAUSE FRAME FOR FULL DUPLEX SWITCH FABRIC 1GBPS THROUGHPUT (PACKET PER SECOND) 0.74MPPS NETWORK CABLES 10BASE-T: 2-PAIR UTP CAT. 3, 4, 5, UP TO 100 METERS 100BASE-TX: 2-PAIR UTP CAT. 5, 5E UP TO 100 METERS STANDARDS CONFORMANCE STANDARDS COMPLIANCE IEEE 802.3 ETHERNET IEEE 802.3U FAST ETHERNET IEEE 802.3X FULL DUPLEX FLOW CONTROL IEEE 802.3AZ ENERGY EFFICIENT ETHERNET TEMPERATURE OPERATING: -40~75 DEGREES C STORAGE: -40~75 DEGREES C HUMIDITY OPERATING: 5% TO 95%, STORAGE: 5% TO 95% (NON-CONDENSING) REGULATORY COMPLIANCE FCC PART 15 CLASS A, CE STABILITY TESTING IEC60068-2-32 (FREE FALL) IEC60068-2-27 (SHOCK-PROOF) IEC60068-2-6 (VIBRATION-PROOF) ORDERING INFORMATION ISW-501T 5-PORT 10/100TX INDUSTRIAL FAST ETHERNET SWITCH (-40~75 DEGREES C OPERATING TEMPERATURE) =ISW-501T PLANET SWITCH INDUSTRIAL 5 PORTAS 10/100TX TAGS DE =ISW-501T: ISW-501T, SWITCH PLANET ISW-501T, SWITCH PLANET INDUSTRIAL, SWITCH INDUSTRIAL, SWITCH INDUSTRIAL 5 PORTAS, SWITCH PLANET, SWITCH ISW501T, ISW501T, SWITCH INDUSTRIAL 10/100, ISW-501T

Informações Adicionais
