Especificações Técnicas

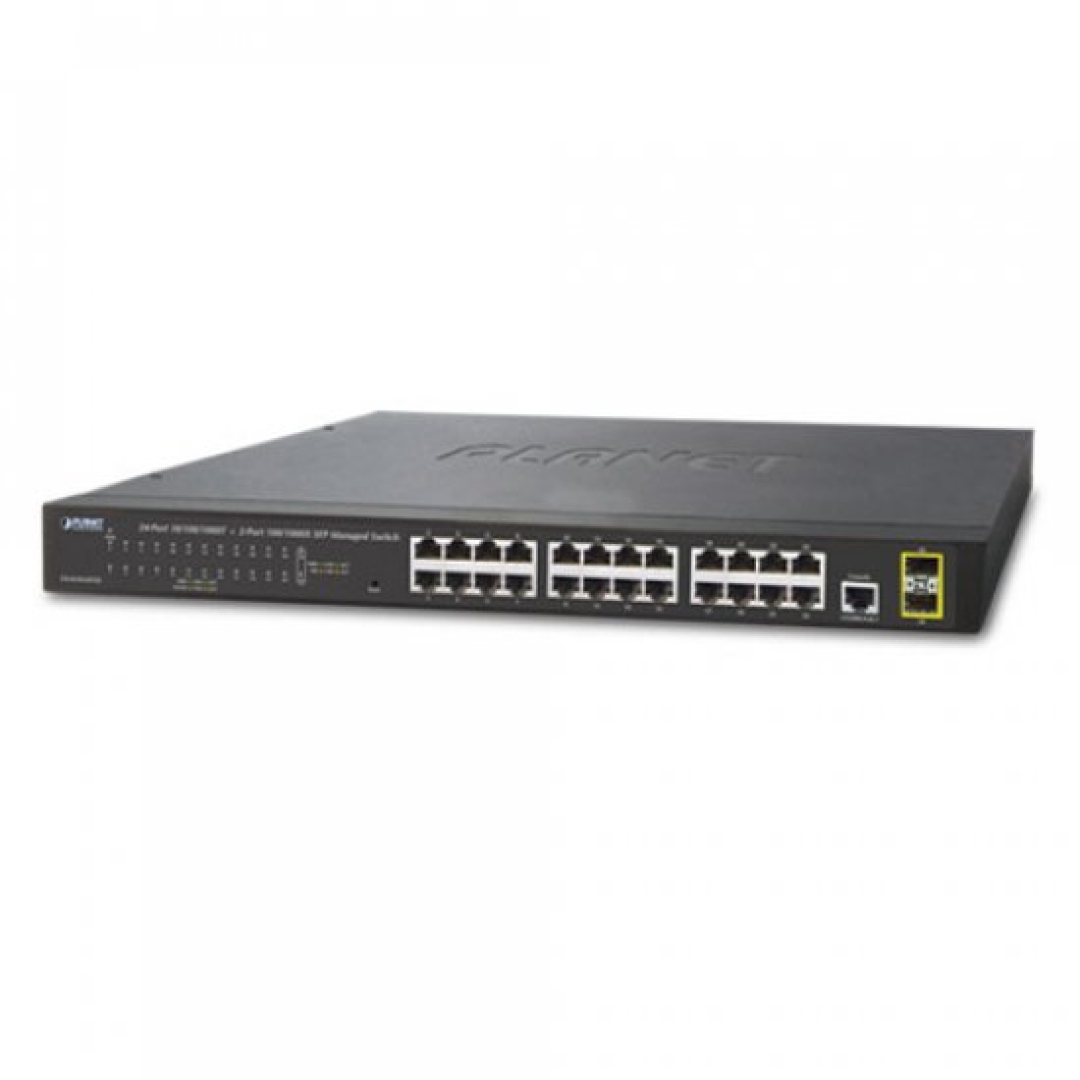

HARDWARE SPECIFICATIONS HARDWARE VERSION 2 COPPER PORTS 24 X 10/100/1000BASE-T RJ45 AUTO-MDI/MDI-X PORTS SFP/MINI-GBIC SLOTS 2 100/1000BASE-X SFP INTERFACES, SUPPORTING 100/1000MBPS DUAL MODE CONSOLE 1 X RS232-TO-RJ45 SERIAL PORT (115200, 8, N, 1) RESET BUTTON SYSTEM FACTORY DEFAULT SWITCH ARCHITECTURE STORE-AND-FORWARD SWITCH FABRIC 52GBPS/NON-BLOCKING SWITCH THROUGHPUT@64 BYTES 38.6MPPS @64 BYTES MAC ADDRESS TABLE 8K ENTRIES SHARED DATA BUFFER 4.1 MEGABITS FLOW CONTROL IEEE 802.3X PAUSE FRAME FOR FULL-DUPLEX BACK PRESSURE FOR HALF-DUPLEX JUMBO FRAME 9216 BYTES RESET BUTTON > 5 SEC: FACTORY DEFAULT LED SYSTEM: POWER (GREEN) 10/100/1000T RJ45 INTERFACES (PORT 1 TO PORT 24): 1000 LNK/ACT (GREEN), 10/100 LNK/ACT (ORANGE) 100/1000MBPS SFP INTERFACES (PORT 25 TO PORT 26): 1000 LNK/ACT (GREEN), 100 LNK/ACT (ORANGE) POWER REQUIREMENTS 100~240V AC, 50/60HZ, 0.8A (MAX.) POWER CONSUMPTION/DISSIPATION MAX. 14 WATTS/47 BTU DIMENSIONS (W X D X H) 445 X 207 X 45 MM (1U HEIGHT) WEIGHT 2.1KG ESD PROTECTION YES ENCLOSURE METAL LAYER 2 FUNCTIONS PORT MIRRORING TX/RX/BOTH MANY-TO-1 MONITOR VLAN 802.1Q TAGGED-BASED VLAN UP TO 256 VLAN GROUPS, OUT OF 4094 VLAN IDS 802.1AD Q-IN-Q TUNNELING (VLAN STACKING) VOICE VLAN PROTOCOL VLAN PRIVATE VLAN (PROTECTED PORT) GVRP MANAGEMENT VLAN LINK AGGREGATION IEEE 802.3AD LACP AND STATIC TRUNK SUPPORTS 8 GROUPS OF 8-PORT TRUNK SPANNING TREE PROTOCOL IEEE 802.1D SPANNING TREE PROTOCOL (STP) IEEE 802.1W RAPID SPANNING TREE PROTOCOL (RSTP) IEEE 802.1S MULTIPLE SPANNING TREE PROTOCOL (MSTP) STP BPDU GUARD, BPDU FILTERING AND BPDU FORWARDING IGMP SNOOPING IPV4 IGMP (V2/V3) SNOOPING IGMP QUERIER UP TO 256 MULTICAST GROUPS MLD SNOOPING IPV6 MLD (V1/V2) SNOOPING, UP TO 256 MULTICAST GROUPS ACCESS CONTROL LIST IPV4/IPV6 IP-BASED ACL/MAC-BASED ACL IPV4/IPV6 IP-BASED ACE/MAC-BASED ACE QOS 8 MAPPING IDS TO 8 LEVEL PRIORITY QUEUES -PORT NUMBER -802.1P PRIORITY -DSCP/IP PRECEDENCE OF IPV4/IPV6 PACKETS TRAFFIC CLASSIFICATION BASED, STRICT PRIORITY AND WRR INGRESS/EGRESS RATE LIMIT PER PORT BANDWIDTH CONTROL SECURITY IEEE 802.1X PORT-BASED AUTHENTICATION BUILT-IN RADIUS CLIENT TO COOPERATE WITH RADIUS SERVER RADIUS/TACACS AUTHENTICATION IP-MAC PORT BINDING MAC FILTERING STATIC MAC ADDRESS DHCP SNOOPING AND DHCP OPTION82 STP BPDU GUARD, BPDU FILTERING AND BPDU FORWARDING DOS ATTACK PREVENTION ARP INSPECTION IP SOURCE GUARD STORM CONTROL SUPPORT -BROADCAST/UNKNOWN UNICAST/UNKNOWN MULTICAST MANAGEMENT FUNCTIONS BASIC MANAGEMENT INTERFACES RJ45 CONSOLE; WEB BROWSER; TELNET ; SNMP V1, V2C, V3 FIRMWARE UPGRADE BY HTTP/TFTP PROTOCOL THROUGH ETHERNET NETWORK CONFIGURATION UPLOAD/DOWNLOAD THROUGH HTTP/TFTP REMOTE/LOCAL SYSLOG SYSTEM LOG LLDP PROTOCOL SNTP PLANET SMART DISCOVERY UTILITY SECURE MANAGEMENT INTERFACES HTTPS, SNMP V3 SNMP MIBS RFC 3635 ETHERNET-LIKE MIB RFC 2863 INTERFACE GROUP MIB RFC 2819 RMON (1, 2, 3, 9) RFC 1493 BRIDGE MIB STANDARDS CONFORMANCE REGULATORY COMPLIANCE FCC PART 15 CLASS A, CE STANDARDS COMPLIANCE IEEE 802.3 10BASE-T IEEE 802.3U 100BASE-TX/100BASE-FX IEEE 802.3Z GIGABIT SX/LX IEEE 802.3AB GIGABIT 1000BASE-T IEEE 802.3X FLOW CONTROL AND BACK PRESSURE IEEE 802.3AD PORT TRUNK WITH LACP IEEE 802.1D SPANNING TREE PROTOCOL IEEE 802.1W RAPID SPANNING TREE PROTOCOL IEEE 802.1S MULTIPLE SPANNING TREE PROTOCOL IEEE 802.1P CLASS OF SERVICE IEEE 802.1Q VLAN TAGGING IEEE 802.1X PORT AUTHENTICATION NETWORK CONTROL IEEE 802.1AB LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP VERSION 1 RFC 2236 IGMP VERSION 2 RFC 3376 IGMP VERSION 3 RFC 2710 MLD VERSION 1 RFC 3810 MLD VERSION 2 ENVIRONMENT OPERATING TEMPERATURE: 0 ~ 50 DEGREES C RELATIVE HUMIDITY: 5 ~ 95% (NON-CONDENSING) STORAGE TEMPERATURE: -10 ~ 70 DEGREES C RELATIVE HUMIDITY: 5 ~ 95% (NON-CONDENSING) GS-4210-24T2S PLANET SWITCH 24 PORTAS GIGABIT LAYER 2 TAGS DE GS-4210-24T2S: GS-4210-24T2S, GS421024T2S, SWITCH PLANATE 24-PORT, FGSW-2620, 24 PORTAS GIGABIT, SWITCH 10/100/1000 PLANET, PLANET TECHNOLOGY, =GS-4210-24T2S

Informações Adicionais
