Especificações Técnicas

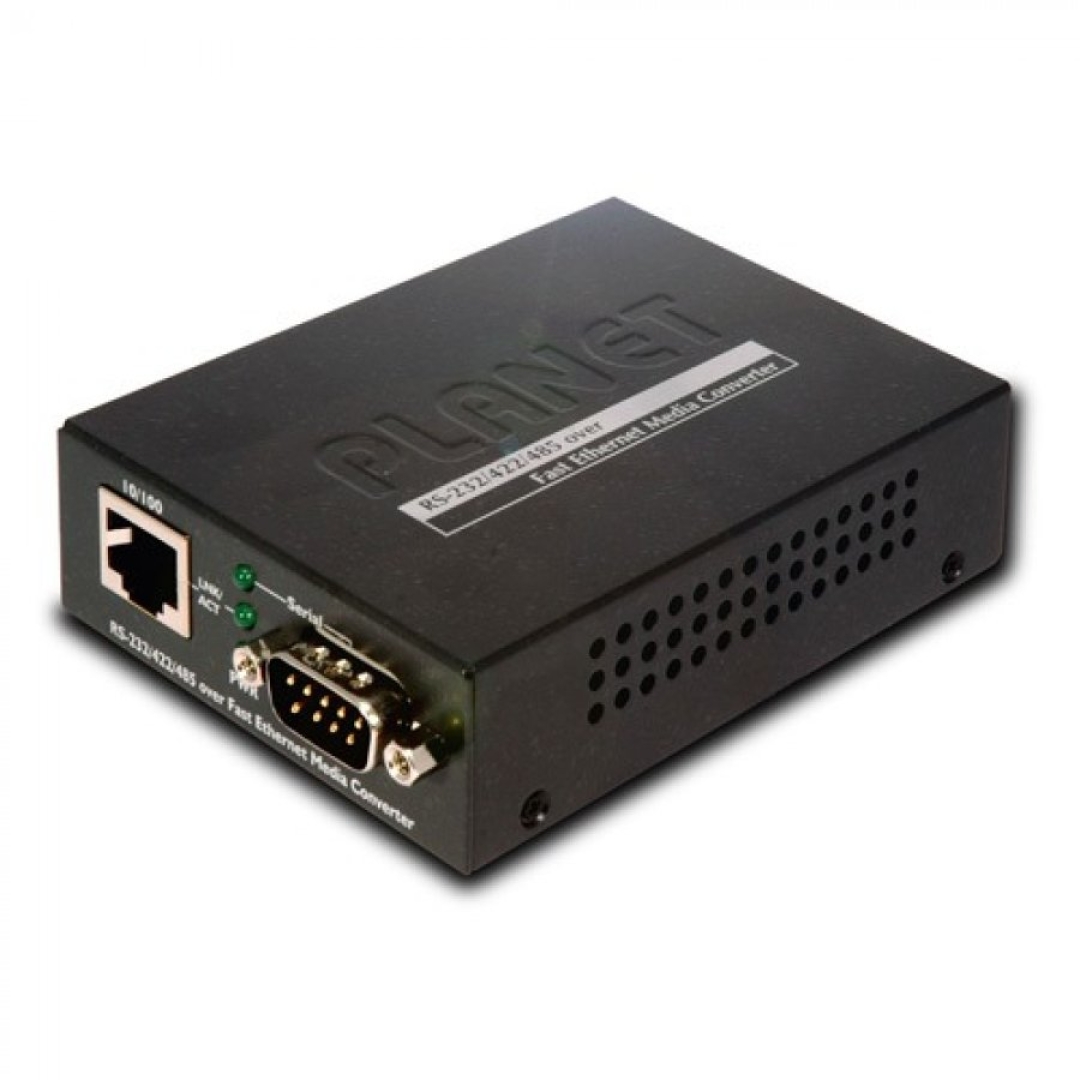

SERIAL PORT INTERFACE RS232 / RS422 / RS485 CONNECTOR 3IN1 DB9 BAUD RATE (DATA RATE) 300BPS TO 921600KBPS CHARACTER BITS 5,6,7,8 STOP BIT 1, 1.5/2 FLOW CONTROL H/W, NONE PARITY TYPE ODD, EVEN, NONE, SPACE, MARK SIGNALS RS232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND RS422: TX , TX, RX , RX RS485(2WIRE): DATA , DATA RS485(4WIRE): TX , TX, RX , RX FAST ETHERNET PORT STANDARD 10/100BASETX CONNECTOR RJ45 DISTANCE 100M CABLE TWISTEDPAIR PROTECTION BUILTIN 1.5KV MAGNETIC ISOLATION HARDWARE LED INDICATORS SYSTEM: POWER TP PORT: LINK / ACTIVE SERIAL PORT: SERIAL PORT MODE, RS232, RS422 OR RS485 MANAGEMENT WEB MANAGEMENT PLANET SMART DISCOVERY UTILITY VIRTUAL COM UTILITY PLATFORM SUPPORTS WINDOWS BASE ONLY: WINDOWS XP WINDOWS SERVER 2003 WINDOWS 7 WINDOWS SERVER 2008 WINDOWS 8 (MUST INSTALL LATEST VERSION OF WINPCAP) WINDOWS SERVER 2012 (MUST INSTALL LATEST VERSION OF WINPCAP)   OPERATION MODE TCP SERVER TCP CLIENT UDP CLIENT VIRTUAL COM TELNET SEVER PAIR CONNECTIONLOCAL(MASTER) PAIR CONNECTIONPEMOTE(SLAVE) DIMENSIONS (W X D X H) 97 X 70 X 26 MM WEIGHT 200G POWER SUPPLY EXTERNAL POWER ADAPTOR 5V DC / 2A MAX. POWER CONSUMPTION 5.5 WATTS (MAX) MECHANICAL METAL ENVIRONMENT OPERATING TEMPERATURE: 0~50 DEGREES C STORAGE TEMPERATURE: 10~70 DEGREES C OPERATING HUMIDITY: 10%~90% RH STORAGE HUMIDITY: 5%~90% RH EMISSIONS FCC CLASS A, CE CERTIFICATION CLASS A STANDARDS IEEE 802.3 10BASET, IEEE 802.3U 100BASETX EIA / TIA RS232 / 422 / 485 REGULATORY APPROVAL ROHS COMPATIBLE MEDIA CONVERTER CHASSIS MC700 / MC1500/ MC1500R NOTE RESET BUTTON ON THE REAR PANEL FOR RESET TO FACTORY DEFAULT ICS-100 PLANET CONVERSOR SERIAL RS-232 RS-422 RS-485 RJ45 TAGS DE ICS-100: ICS-100, ICS 100, ICS100, PLANET CONVERSOR SERIAL RS232 RS422 RS485 RJ45, CONVERSOR DE MIDIA SERIAL PLANET, CONVERSOR SERIAL PLANET, CONVERSOR RJ45 RS232, CONVERSOR RS232, CONVERSOR RS422, CONVERSOR RS485, CONVERSORES SERIAL PLANET, MC-700, MC-1500, MC-1500R, CONVERSOR RS232, CONVERSOR RS422, CONVERSOR RS485, PLANET ICS-100

Informações Adicionais
