Especificações Técnicas

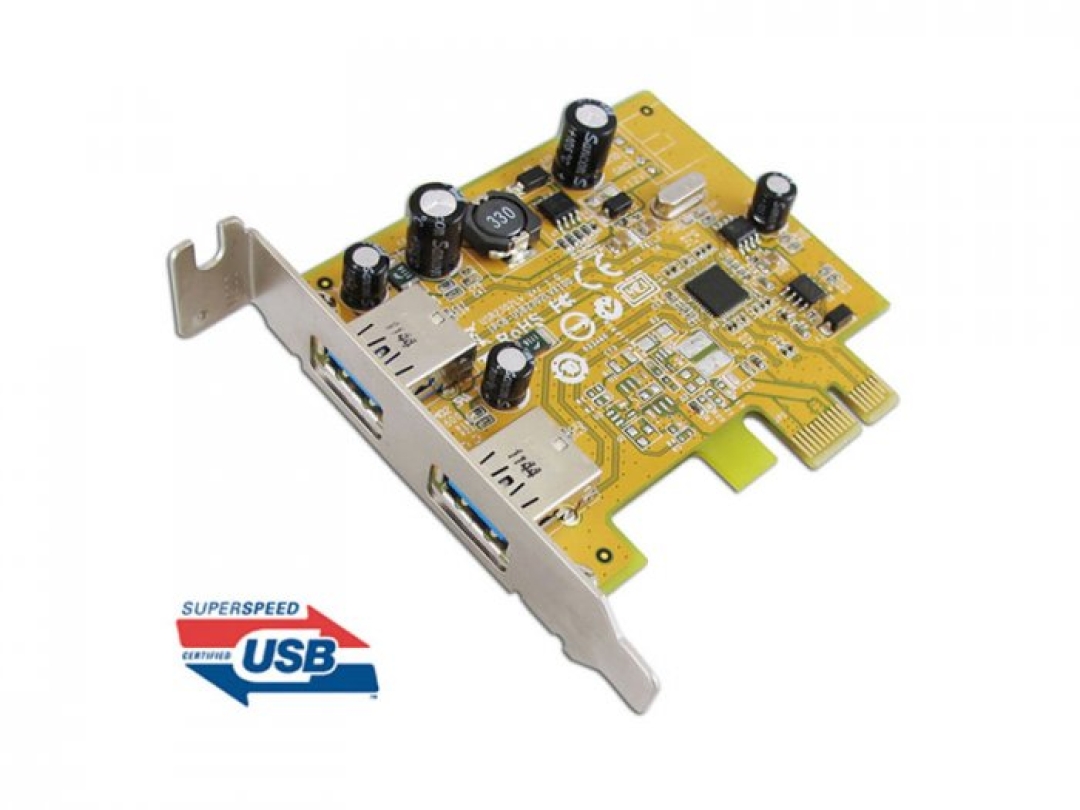

SUPER-SPEED USB 3.0 INTERFACE IS THE NEXT REVOLUTION IN I/O INTERCONNECT STANDARDS THAT WILL DELIVER THE BANDWIDTH AND FEATURES REQUIRED BY PCS, CONSUMER ELECTRONICS AND COMMUNICATIONS DEVICES. WITH 10 TIMES FASTER THROUGHPUT THAN USB 2.0 STANDARD AND BACKWARD COMPATIBLE WITH CURRENT USB DEVICE FEATURES, USB 3.0 INTERFACE WILL BE THE TRENDY OF IT TECHNOLOGY. SUNIX USB2302L IS A DUAL-PORT SUPER-SPEED USB 3.0 PCI EXPRESS CARD, AND COMPLIANT WITH THE PCI EXPRESS GENERATION 2 SPECIFICATION FOR HOST PC SYSTEM. IT WORKS UP TO 5 GBPS FOR DATA TRANSFER WHEN CONNECTING TO USB 3.0 COMPLIANT PERIPHERALS, MAINTAINING COMPATIBILITY WITH EXISTING USB PERIPHERAL DEVICES. WITH USB HOT-SWAPPING AND PLUG-N-PLAY , YOU DON’T HAVE TO WORRY ABOUT RUNNING OUT OF SLOTS ON YOUR MOTHERBOARD OR COMPLICATED HARDWARE INSTALLATION PROCESS. SUNIX USB2302L CARD SUPPORTS USB 3.0 HIGH-SPEED DEVICE AND BACKWARD COMPATIBLE WITH USB 2.0 HIGH-SPEED AND USB 1.1 FULL-SPEED DEVICE. WITH SUNIX UNIQUE TECHNOLOGY, IT CAN OUTPUT EFFICIENT POWER TO USB DEVICE WITHOUT ADDITIONAL POWER ADAPTER CONNECTION. SUNIX USB2302L IS AN IDEAL CHOICE FOR EXTERNAL STORAGE DEVICES, MP3 PLAYERS, EXTERNAL WRITER, DIGITAL CAMERAS, WEBCAM, NETWORKING AND VIDEO DEVICES, AND ALL OTHER USB DEVICES. USBIF CERTIFICATED USB3.0 HOST CARD TID 350000174 SUPPORTS PCI EXPRESS BASE SPECIFICATION REVISION 2.0. SINGLE-LANE (X1) PCI EXPRESS THROUGHPUT RATES UP TO 5 GBPS. COMPLIANT WITH UNIVERSAL SERIAL BUS 3.0 SPECIFICATION REVISION 1.0. COMPLIANT WITH XHCI (EXTENSIBLE HOST CONTROLLER INTERFACE) SPECIFICATIONS REVISION 1.0. SUPPORTS SIMULTANEOUS OPERATION OF MULTIPLE USB 3.0, USB 2.0 AND USB 1.1 DEVICES. SUPPORTS USB DATA TRANSFER RATE OF 1.5/12/480/5000 MBPS. EXPANDS TWO EXTERNAL USB3.0 SUPER-SPEED PORTS ON THE SYSTEM. EACH USB PORT SUPPLIES MAXIMUM +5V / 900MA POWER OUTPUT TO USB DEVICE. LOW PROFILE BRACKET DESIGN IDEA FOR SLIM OR PORTABLE PC. HOT-SWAPPING FEATURE ALLOWS CONNECT/DISCONNECTING DEVICES WITHOUT POWERING DOWN THE SYSTEM. DRIVER SUPPORTS FOR MICROSOFT WINDOWS XP, VISTA,7, 2008, 8 AND 8.1 OPERATION SYSTEM. CERTIFIED BY CE, FCC, ROHS, AND MICROSOFT WQHL APPROVAL  INTERFACE  SINGLE-LANE (X1) PCI EXPRESS GEN2  MODE  UNIVERSAL SERIAL BUS 3.0  CONTROLLER  RENESAS (NEC) µPD720202  PCB VERSION  VER1.0  USBIF TID  TID350000174  PORT  2 EXTERNAL USB 3.0 PORTS  SPEED  DATA TRANSFER RATE OF 1.5/12/480/5000 MBPS.LOW SPEED (1.5MBPS), FULL SPEED(12MBPS), HIGH  SPEED(480MBPS), SUPER SPEED(5GPBS)  POWER OUTPUT  +5V / 900MA (EACH PORT)  PCB DIMENSION  78 (W) X 68 (L) MM  BRACKET   LOW PROFILE 80MM  CERTIFIED  EUR: CE, EN55022 CLASS B, EN55024, EN61000-3-2,  EN61000-3-3US: FCC PART 15 CLASS BTAIWAN: BSMI: CNS13438AS/NZS: C-TICK: CISPR22JAPAN: VCCI  O.S. SUPPORT  WINDOWS XP/2003/VISTA/7/2008/8/8.1 (32/64-BIT)LINUX 2.6.31 OR LATER (LINUX OS ALREADY IMPLEMENTED  USB 3.0 DRIVER)  ENVIRONMENT  OPERATION TEMP. 0 °C ~ 57 °COPERATION HUMIDITY: 5 ~ 95% RHSTORAGE TEMP.-20 °C ~ 85 °C USB2302L SUNIX PLACA USB 3.0 PCI-E X1 GEN 2 C/ 2 SAIDAS MAIORES DETALHES DE USB2302L NO SITE DO FABRICANTE: HTTP://WWW.SUNIXUSA.COM/PRODUCT/USB2302L/ TAGS DE USB2302L: USB2302L, USBIF TID 350000174, SUNIX USAM USB3.0, PLACA PCI USB 3.0, USB TYPE C, USB3.0 2-PORT HOST CARD, OEM

Informações Adicionais
