Especificações Técnicas

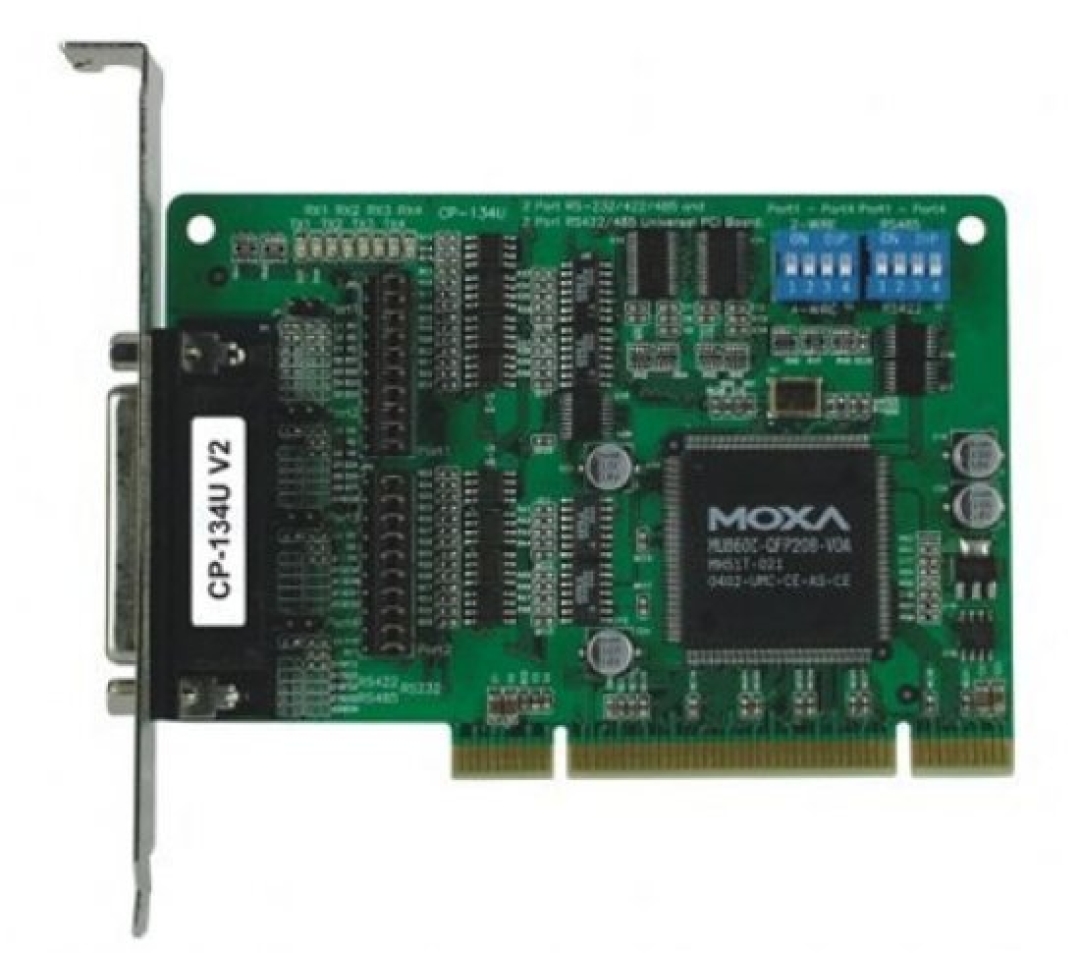

THE CP-134U AND CP-134U-I 4-PORT UNIVERSAL PCI BOARDS ARE DESIGNED FOR INDUSTRIAL AUTOMATION APPLICATIONS THAT REQUIRE A LONG DISTANCE,MULTI-POINT, PC-BASED DATA ACQUISITION SOLUTION. ON-CHIP AUTOMATIC DATA DIRECTION CONTROL FOR PRECISION RS-485 COMMUNICATION RS-485 COMMUNICATION REQUIRES PRECISE TIMING CONTROL TO ENABLE AND DISABLE THE LINE DRIVER. THE MOXA TURBO SERIAL ENGINE™ CHIP THAT POWERS THE CP-134U BOARD COMES WITH ON-CHIP ADDC®, WHICH MAKES RS-485 AS EASY TO USE AS RS-232. RS-485 MULTIDROP FOR UP TO 31 DEVICES WITHIN 1.2 KM THE CP-134U UNIVERSAL PCI BOARD HAS 4 RS-422/485 SERIAL PORTS, EACH OF WHICH CAN ACHIEVE DATA RATES UP TO 921.6 KBPS. IN RS-485 MODE,THE BOARD CAN CONNECT UP TO 31 DAISY-CHAINED RS-485 DEVICES WITHIN A RANGE OF 1.2 KM. FOR LONG DISTANCE RS-485 COMMUNICATION, CHOOSE THE CP-134U-I, WHICH COMES WITH 2 KV OPTICAL ISOLATION PROTECTION TO PREVENT EQUIPMENT DAMAGE. DRIVERS PROVIDED FOR WINDOWS, LINUX, AND UNIX MOXA CONTINUES TO SUPPORT A WIDE VARIETY OF OPERATING SYSTEMS, AND THE CP-134U AND CP-134U-I BOARDS ARE NO EXCEPTION. RELIABLE WINDOWS COM AND LINUX/UNIX TTY DRIVERS ARE PROVIDED FOR ALL MOXA BOARDS, AND OTHER OPERATING SYSTEMS, SUCH AS WEPOS, ARE ALSO SUPPORTED FOR EMBEDDED INTEGRATION.  FEATURES: OVER 700 KBPS DATA THROUGHPUT FOR TOP PERFORMANCE 921.6 KBPS MAXIMUM BAUDRATE FOR SUPER FAST DATA TRANSMISSION ADDC® PROVIDES AUTOMATIC DATA DIRECTION CONTROL FOR RS-485 SIGNALS 128-BYTE FIFO AND ON-CHIP H/W, S/W FLOW CONTROL COMPATIBLE WITH 3.3/5V PCI AND PCI-X DRIVERS PROVIDED FOR WINDOWS (7 X86/X64, XP/2003/VISTA/2008 X86/X64, 2000, 9X/ME/NT), WINDOWS CE 5.0/6.0, WINDOWS XP EMBEDDED, DOS, LINUX 2.4, LINUX 2.6 (X86/X64), FREEBSD 4/5, QNX 6, SCO OPENSERVER 5/6, UNIXWARE 7, SOLARIS 10 X86/X64 15 KV ESD PROTECTION ON THE BOARD ADDED BONUS! PORTS 1 AND 2 SUPPORT RS-232 AND RS-422/485 WIDE TEMPERATURE MODEL AVAILABLE FOR -40 TO 85°C ENVIRONMENTS CP-134U-I PLACA MOXA SERIAL 4 PORTAS UPCI MAIORES DETALHES DE CP-134U-I NO SITE DO FABRICANTE: HTTP://WWW.MOXA.COM/PRODUCT/CP-134U_V2.HTM TAGS DE CP-134U-I: ISOLAMENTO OPTICO, CP-134U-I-DB25M, RS422, RS-422, RS485, RS-485, CP-134U-T, CP-134U-I-T, CBL-M44M25X4-50, CBL-M44M9X4-50, CP-134U-I-DB9M, CP-134U, CP134U, CP 134U, CP-134U-DB9M, CP-134U-DB25M, CP-134U-I
