Especificações Técnicas

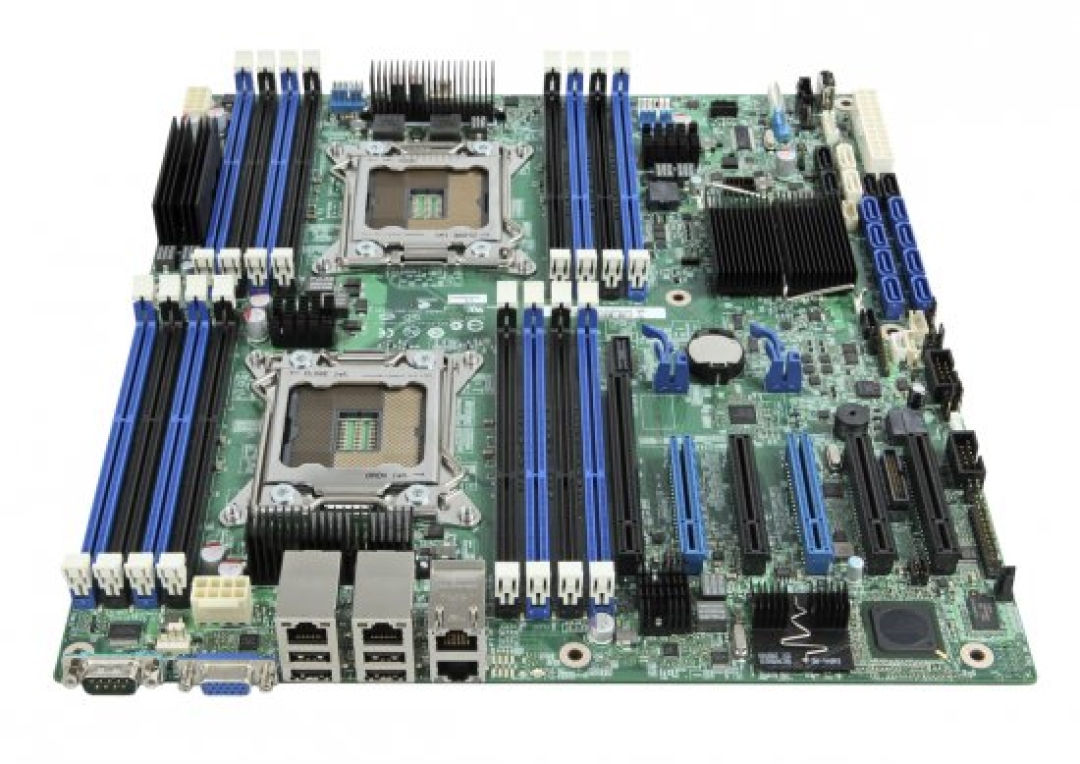

GENERAL PRODUCT TYPE MOTHERBOARD - SSI EEB CHIPSET TYPE INTEL C600-A PROCESSOR SOCKET LGA2011 SOCKET MAX PROCESSORS QTY 2 COMPATIBLE PROCESSORS XEON E5-2600 SERIES MEMORY MAX SUPPORTED MEMORY 500 GB SUPPORTED RAM TECHNOLOGY DDR3 SDRAM SUPPORTED RAM SPEED 1333 MHZ, 1066 MHZ, 800 MHZ SUPPORTED RAM INTEGRITY CHECK ECC SUPPORTED RAM (REGISTERED OR BUFFERED) REGISTERED, UNBUFFERED GRAPHICS GRAPHICS CONTROLLER MATROX G200 LAN NETWORK CONTROLLER INTEL I350 NETWORK INTERFACES 2 X GIGABIT ETHERNET EXPANSION / CONNECTIVITY EXPANSION SLOT(S) 2 X PROCESSOR - LGA2011 SOCKET 16 X MEMORY ( 1.5 V/ 1.35 V ) - DIMM 240-PIN 1 X PCI EXPRESS 3.0 X16 5 X PCI EXPRESS 3.0 X8 STORAGE INTERFACES SERIAL ATA-600 - CONNECTOR(S): 2 X 7PIN SERIAL ATA - 2 DEVICE(S) - RAID 0 / RAID 1 / RAID 10 / RAID 5 SERIAL ATA-300 - CONNECTOR(S): 8 X 7PIN SERIAL ATA - 4 DEVICE(S) - RAID 0 / RAID 1 / RAID 10 / RAID 5 RAID FEATURES SOFTWARE RAID 0/ 1 / 10 / 5 INTERFACES 2 X NETWORK - ETHERNET 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 1 X HI-SPEED USB - 4 PIN USB TYPE A ( INTERNAL ) 4 X HI-SPEED USB - 4 PIN USB TYPE A 1 X SERIAL - RS-232 - 9 PIN D-SUB (DB-9) 2 X HI-SPEED USB ( INTERNAL ) 1 X SERIAL ( INTERNAL ) 1 X USB 1 X DISPLAY / VIDEO - VGA - 15 PIN HD D-SUB (HD-15) FEATURES BIOS TYPE INTEL BIOS FEATURES IPMI SUPPORT HARDWARE FEATURES TRUSTED PLATFORM MODULE (TPM), INTEL FAST MEMORY ACCESS TECHNOLOGY MISCELLANEOUS INCLUDED ACCESSORIES I/O BACK PLATE SOFTWARE INCLUDED DRIVERS & UTILITIES APPROXIMATE WIDTH 12 IN APPROXIMATE DEPTH 13 IN S2600CP2 PLACA MAE INTEL XEON DUAL LGA2011 TAGS DE S2600CP2: S2600CP2, S2600CP, DBS2600CW2R, LGA2011, DBS2600CP2, KVR13LR9D4/16HA, KVR13LR9D4/16HM, KVR13LR9Q8/16EF, KVR16R11D4/8HC, MOTHERBOARD SERVER
