Especificações Técnicas

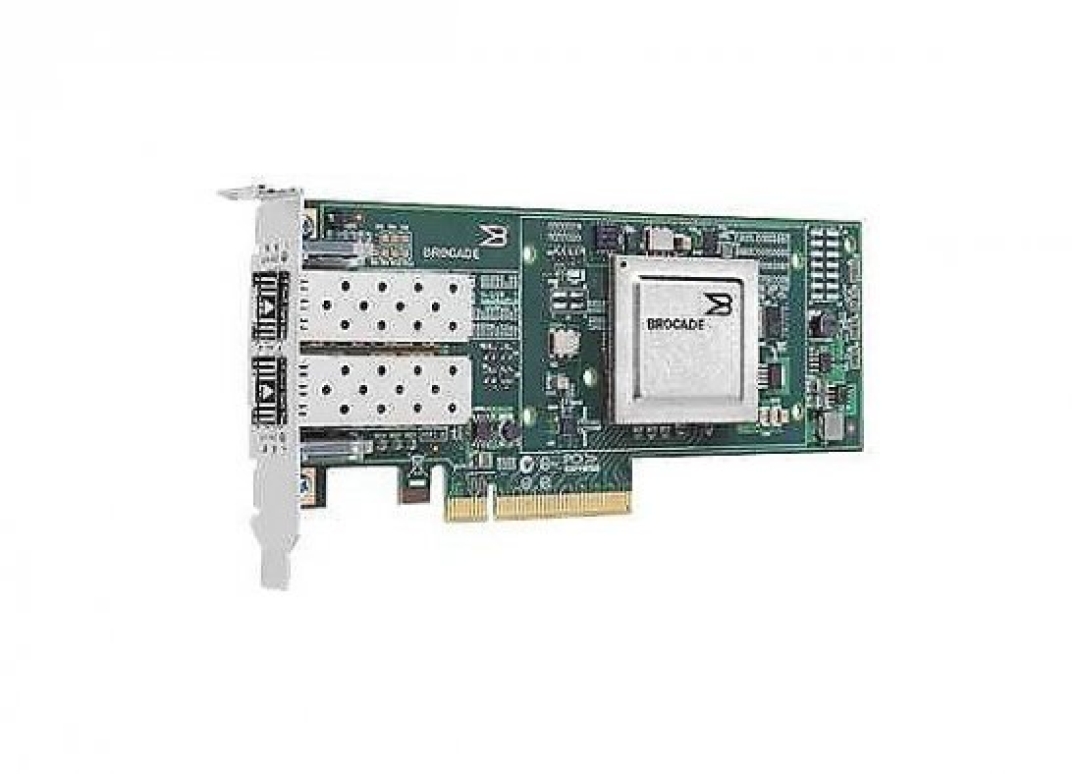

THE BROCADE 1020 (DUAL PORTS) 10 GBPS FIBER CHANNEL OVER ETHERNET (FCOE) TO PCIE CNAS PROVIDE INDUSTRY-LEADING SERVER I/O CONSOLIDATION. BY TRANSPORTING BOTH STORAGE AND ETHERNET NETWORKING TRAFFIC ACROSS THE SAME PHYSICAL CONNECTION, THE CNAS REDUCE OWNERSHIP COSTS AND IMPROVE ROI. UNMATCHED HARDWARE CAPABILITIES, UNIQUE SOFTWARE CONFIGURABILITY, AND UNIFIED MANAGEMENT ALL CONTRIBUTE TO EXCEPTIONAL FLEXIBILITY IN THIS CLASS OF SERVER CONNECTIVITY PLATFORM. ENVIRONMENTAL PARAMETERS HUMIDITY RANGE OPERATING: 5 - 93% MAX OPERATING TEMPERATURE: 122 °F MIN OPERATING TEMPERATURE: 32 °F EXPANSION SLOTS TYPE: SFP+ HEADER BRAND: BROCADE COMPATIBILITY: PC , UNIX MANUFACTURER: BROCADE MODEL: 1020 CNA PACKAGED QUANTITY: 1 PRODUCT LINE: BROCADE INTERFACE PROVIDED TYPE: NONE INTERFACE REQUIRED TYPE: NONE MISCELLANEOUS COMPLIANT STANDARDS: BSMI , BSMI CNS 13438 , C-TICK , CISPR 22 CLASS B , EN 60950-1 , EN55022 CLASS B , EN55024 , FCC CLASS B CERTIFIED , GOST , ICES-003 CLASS B , IEC 60950-1 , JEIDA , MIC CLASS B , TUV , UL 60950-1 , VCCI CLASS B ITE NETWORKING BUS VOLTAGE: 3.3 V COMPLIANT STANDARDS: IEEE 802.1P , IEEE 802.1Q , IEEE 802.3AD (LACP) , IEEE 802.3AE , IEEE 802.3X CONNECTIVITY TECHNOLOGY: WIRED FEATURES: DATA CENTER BRIDGING EXCHANGE (DCBX) SUPPORT , ENHANCED TRANSMISSION SELECTION , FULL DUPLEX MODE , IPV6 SUPPORT , JUMBO FRAMES SUPPORT , PRIORITY-BASED FLOW CONTROL , VLAN SUPPORT FIBRE CHANNEL: FC-BB-5 , FC-DA , FC-FS-2 , FC-GS , FC-LS , FC-SP , FCP , FCP-2 , FCP-3 FORM FACTOR: PLUG-IN CARD INTERFACE TYPE: PCI EXPRESS 2.0 X8 LOW PROFILE: LOW PROFILE PORTS QTY: 2 TYPE: NETWORK ADAPTER SLOT PROVIDED FREE QTY: 2 TOTAL QTY: 2 SLOT REQUIRED TOTAL QTY: 1 TYPE: PCI EXPRESS 2.0 X8 SOFTWARE TYPE: BROCADE HOST CONNECTIVITY MANAGER BR-1020-1010-IP PLACA DE REDE BROCADE 1020 CNA DUAL PORT TAGS DE BR-1020-1010-IP: BR-1020-1010-IP,BR-1020-1010, PLACA DE REDE FIBRE CHANNEL, FIBRE CHANNEL, PLACA DE REDE BROCADE 1020, PLACA DE REDE FIBRE CHANNEL 1020

Informações Adicionais
