Especificações Técnicas

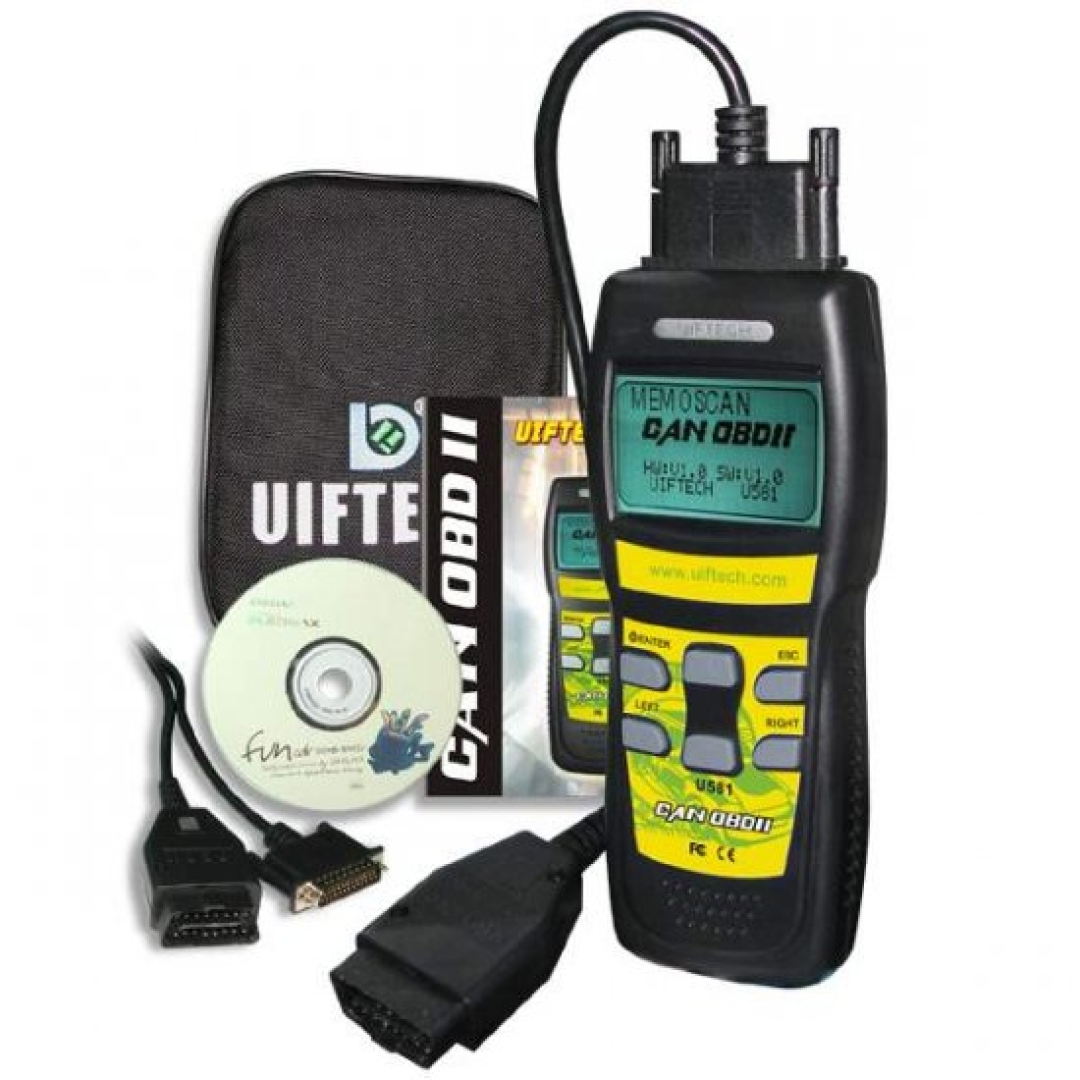

SPECIFICATIONS: 1.1 TOOL DESCRIPTION 1.LCD DISPLAY , 128X64 PIXEL DISPLAY WITH CONTRAST ADJUSTMENT, BACKLIT 2.ENTER KEY  SELECTS DISPLAYED 3.EXIT KEY   GO BACK TO THE PREVIOUS SCREENS 4.UP/DOWN ARROWS-MOVES THE SELECTION POINTER AND SCROLLS UP OR DOWN. 5.LEFT/RIGHT ARROWS-SELECT RESPONSES AND MOVES CURSOR. 6.OBDII CONNECTOR CABLE, CONNECT CAR AND THE SCAN TOOL 7.BATTERY COMPARTMENT 1.2 PRODUCT SPECIFICATIONS • DISPLAY-BACKLIT LCD,128X64 PIXEL DISPLAY. • OPERATING TEMPERATURE- 0 TO 50 • INTERNAL POWER- 9V CELL  • EXTERNAL POWER: 10.0 TO 15.5 VOLS PROVIDED VIA VEHICLE BATTERY • UPDATE BY INTERNET DIMENSIONS: • 195MM LENGTH  81MM WIDTH  32MM HEIGHT • OBDII CONNECTOR , 1500MM 1.3 PRODUCT FEATURES WORKS ON ALL 1996 AND NEWER CARS LIGHT TRUCKS THAT ARE OBD II COMPLIANT (INCLUDING THE VPW, PWM, ISO, KWP 2000 AND CAN PROTOCOLS) READS AND CLEARS GENERIC AND MANUFACTURER SPECIFIC DIAGNOSTIC TROUBLE CODES (DTCS) TROUBLE CODES DISPLAY ON THE LCD, NEEDNT THE CODE BOOK. SCANNING LIVE DATA READING FREEZE FRAME DATA TESTING I/M READING STATUS READING VEHICLE INFO RESCANNING DATA VEHICLE COVERAGE: • GM 96 - CURRENT YEAR (OBD-II)  • FORD 96 - CURRENT YEAR (OBD-II)  • CHRYSLER 96 - CURRENT YEAR (OBD-II)  • TOYOTA 96 - CURRENT YEAR (OBD-II)  • NISSAN 96 - CURRENT YEAR (OBD-II)  • ALL OTHER ASIAN AND EUROPEAN 96 - CURRENT YEAR (OBD-II) • ALL NEW CAN PROTOCOL CARS   U581 MEMOSCAN PARA DIAGNOSTICO DE VEICULOS MAIORES DETALHES DE U581 NO SITE DO FABRICANTE: HTTP://WWW.MEMOSCAN.CN/EN/SHOWPRODUCTS.ASP?CID=10 TAGS DE U581: OBDII, OBDII CONNECTOR, U381, ODB2 SCANNER PARA VEICULO, RASTER, SCANER DE CARRO, SCANNER DE CARRO, SCANNER PARA CARRO, SCANER PARA CARRO, SCANNER AUTOMOTIVO, RASTER SCAN, SCANNER RASTER, U581 OBD2 SCANNER, MEMOSCAN TECHNOLOGY

Informações Adicionais
