Especificações Técnicas

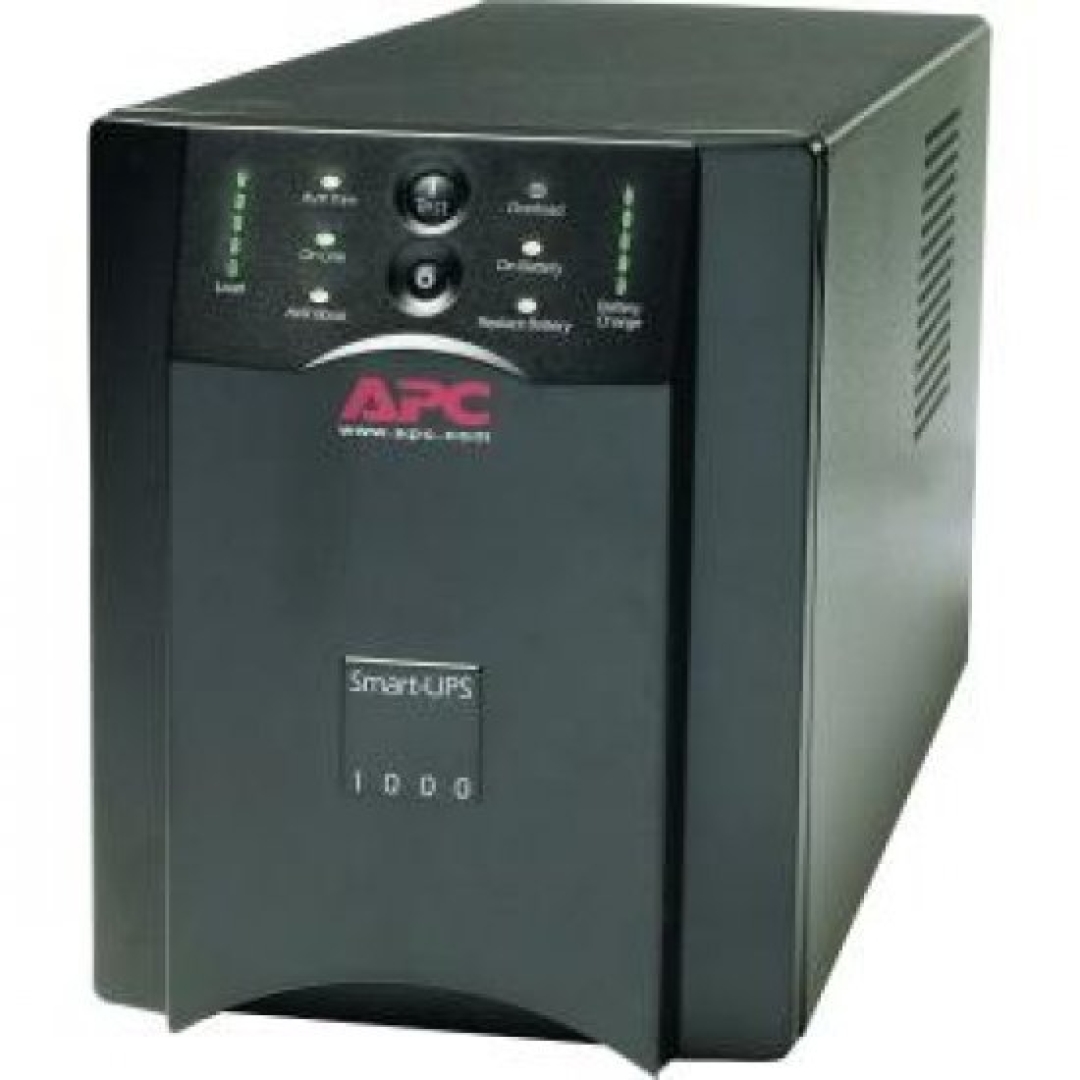

GENERAL INFORMATION PRODUCT TYPE : LINE-INTERACTIVE UPS MANUFACTURER PART NUMBER : SUA1000-BR MANUFACTURER WEBSITE ADDRESS : WWW.APC.COM MANUFACTURER : AMERICAN POWER CONVERSION CORP PRODUCT MODEL : SUA1000-BR PRODUCT NAME : SMART-UPS SUA1000-BR 1000VA TOWER UPS PRODUCT LINE : SMART-UPS BRAND NAME : APC TECHNICAL INFORMATION RECEPTACLES : 6 POWER DESCRIPTION INPUT VOLTAGE : 110 V AC OUTPUT VOLTAGE : 120 V AC NOMINAL FILTERING : FILTERING MULTI-POLE NOISE FILTERING: THE PASSAGE OF 0.3% IEEE: RESPONSE TIME OF CLAMPING ZERO FREQUENCY : 60 HZ INPUT 57 HZ TO 63 HZ OUTPUT LOAD CAPACITY : 1 KVA/670 W INPUT VOLTAGE RANGE : 120 V AC NOMINAL 82 V AC TO 144 V AC MAINS OPERATION 75 V AC TO 154 V AC ADJUSTABLE MAINS OPERATION MANAGEMENT EMERGENCY POWER OFF : OPTIONAL OVERLOAD PROTECTION : RESETTABLE CIRCUIT BREAKERS INTERFACES/PORTS INTERFACES/PORTS : USB DB-9 RS-232 SERIAL MODULAR SLOTS : 1 X SMARTSLOT BATTERY INFORMATION BACKUP/RUN TIME : 0.10 HOUR 670 W FULL LOAD 0.35 HOUR 335 W HALF LOAD BATTERY RECHARGE TIME : 3 HOUR TYPICAL BATTERIES : MAINTENANCE FREE, SEALED, SPILL PROOF LEAD ACID USER-REPLACEABLE HOT-SWAPPABLE PHYSICAL CHARACTERISTICS DIMENSIONS : 216 MM HEIGHT X 170 MM WIDTH X 439 MM DEPTH WEIGHT (APPROXIMATE) : 9.19 KG FORM FACTOR : TOWER MISCELLANEOUS PACKAGE CONTENTS : SMART-UPS SUA1000-BR 1000VA TOWER UPS CD WITH SOFTWARE RS-232 CABLE USB CABLE USER MANUAL CERTIFICATIONS & STANDARDS : UL 1449 GREEN COMPLIANCE : YES GREEN COMPLIANCE CERTIFICATE/AUTHORITY : REACH ROHS WARRANTY STANDARD WARRANTY : 2 YEAR SUA1000-BR NO-BREAK APC SUA1000 SMART-UPS 1000VA TAGS DE SUA1000-BR: 1KVA, 1000VA, 1000 VA, 1 KVA, SUA1000, SUA1000BR, SUA1000-BR, NOBREAK, NORBEAKS, NO-BREAK, NO-BREAKS, NO BREAK, NO BREAKS
