Especificações Técnicas

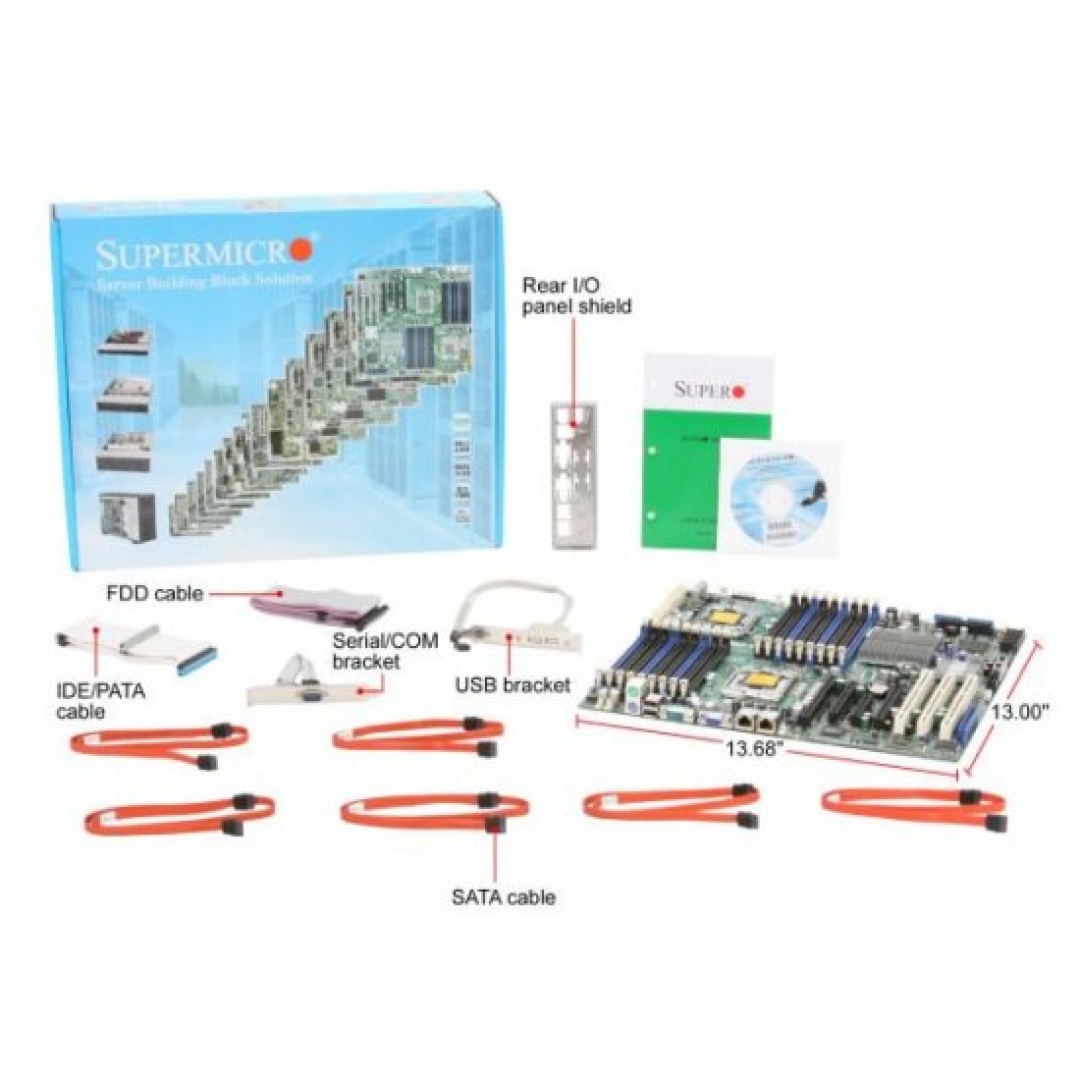

• ENHANCED EXTENDED ATX • LGA 1366 SOCKET • INTEL XEON 5500/5600 SERIES • QPI: 6.4GT/S • MEMORIA: 18X SLOTS 1333 / 1066 / 800MHZ ECC REGISTERED / ECC UNBUFFERED DDR3 • 288GB RDIMM / 48GB UDIMM • CHIPSET: INTEL 5520 (TYLERSBURG) CHIPSET ICH10R + IOH-36D • RAID 0, 1, 5, 10 SUPPORT (WINDOWS) • RAID 0, 1, 10 SUPPORT (LINUX) • INTEL 82576 DUAL-PORT GIGABIT ETHERNET CONTROLLER • VGA ATI ES1000 32 MB • SLOTS DE EXPANSAO: • PCI-EXPRESS: • 2 (X8) PCI-E SLOTS (1 IN X16 SLOT) • 1 (X4) PCI-E SLOT (IN X8 SLOT) • PCI-X: • 1X 64-BIT 133MHZ PCI-X (3.3V) SLOTS • 2X 64-BIT 133/100MHZ PCI-X (3.3V) SLOTS • UIO: • 1 UIO SLOT (PCI-E 2.0 X8 SLOT) PRODUCT SKUS MBD-X8DTN+ -O X8DTN+ (STANDARD RETAIL PACK) MBD-X8DTN+ -B X8DTN+ (BULK PACK)   PHYSICAL STATS FORM FACTOR ENHANCED EXTENDED ATX DIMENSIONS 13.68" X 13" (34.7CM X 33CM)   PROCESSOR/CACHE CPU DUAL 1366-PIN LGA SOCKETS SUPPORTS UP TO TWO INTEL® 64-BIT XEON® PROCESSOR(S) OF THE SAME TYPE BELOW: INTEL® XEON®PROCESSOR 5600 SERIES (WESTMERE) INTEL® XEON®PROCESSOR 5500 SERIES (NEHALEM-EP) QPI UP TO 6.4 GT/S   SYSTEM MEMORY MEMORY CAPACITY 18X 240-PIN DIMM SOCKETS SUPPORTS UP TO 288GB** 1333 / 1066 / 800MHZ DDR3 ECC REGISTERED MEMORY SUPPORTS UP TO 48GB 1333 / 1066 / 800MHZ DDR3 ECC / NON ECC UNBUFFERED MEMORY MEMORY MIRRORING SUPPORTED MEMORY TYPE 1333 / 1066 / 800MHZ ECC REGISTERED / ECC OR NON ECC UNBUFFERED DDR3 SDRAM 72-BIT, 240-PIN GOLD-PLATED DIMMS DIMM SIZES 1GB, 2GB, 4GB , 8GB , 16GB MEMORY VOLTAGE 1.5 V / 1.35V ERROR DETECTION CORRECTS SINGLE-BIT ERRORS DETECTS DOUBLE-BIT ERRORS (USING ECC MEMORY) SUPPORTS INTEL® X4 AND X8 SINGLE DEVICE DATA CORRECTION (SDDC)   ON-BOARD DEVICES CHIPSET INTEL® 5520 (TYLERSBURG) CHIPSET ICH10R + IOH-36D SATA INTEL ICH10R SATA 3.0GBPS CONTROLLER RAID 0, 1, 5, 10 SUPPORT (WINDOWS) RAID 0, 1, 10 SUPPORT (LINUX) IPMI SUPPORTS FOR INTELLIGENT PLATFORM MANAGEMENT INTERFACE V.2.0 200-PIN IPMI SLOT (SIMLP) (OPTIONAL: AOC-SIMLP-B(+)) (OPTIONAL: AOC-SIMLP-3(+)) WITH 3RD LAN SUPPORT NOTE: SUPPORTS CHASSIS 2U AND UP NETWORK CONTROLLERS INTEL® 82576 DUAL-PORT GIGABIT ETHERNET CONTROLLER SUPPORTS 10BASE-T, 100BASE-TX, AND 1000BASE-T, RJ45 OUTPUT INTEL® I/OAT 3 SUPPORT FOR FAST, SCALEABLE, AND RELIABLE NETWORKING VMDQ SUPPORT FOR BETTER PERFORMANCE OF VIRTUALIZATION GRAPHICS ATI ES1000 CONTROLLER WITH 32 MB OF VIDEO MEMORY SUPER I/O WINBOND 83627HF CHIP   INPUT / OUTPUT SERIAL ATA SIX SERIAL ATA PORTS SIX SATA HARD DRIVES SUPPORTED IDE SINGLE EIDE CHANNEL SUPPORTS UP TO TWO UDMA IDE DEVICES (IDE-M, IDE-S) INCLUDING CF(COMPACT FLASH) CARD SUPPORTS UDMA MODE 5, PIO MODE 4, AND ATA/100 FLOPPY 1 FLOPPY CONTROLLER; 1.44 MB LAN 2X RJ45 LAN PORTS USB 2X USB REAR PORTS 2X USB ON-BOARD 2X USB INTERNAL HEADERS( 3 PORTS) 7 TOTAL USB PORTS, 2.0 COMPLIANT VGA 1X VGA PORT KEYBOARD / MOUSE PS/2 KEYBOARD AND MOUSE PORTS SERIAL PORT / HEADER 1 FAST UART 16550 SERIAL PORT 1 FAST UART 16550 SERIAL HEADER (OPTION) X8DTN+-O MOTHERBOARD SERVER SUPERMICRO DUAL XEON TAGS DE X8DTN+-O: CSE-745TQ-800B, MBD-X8DTN+ -O, MBD-X8DTN, MBD-X8DTN+-0, MBD-X8DTN+-O, MBD-X8DTN+ -B, MBD-X8DTN+-B, MBD-X8DTN -O, INTEL XEON, XEON, 5500, 5600, SERVIDORES, PLACA MAE, PLACA MAE, MOTHERBOARD SERVER
