Especificações Técnicas

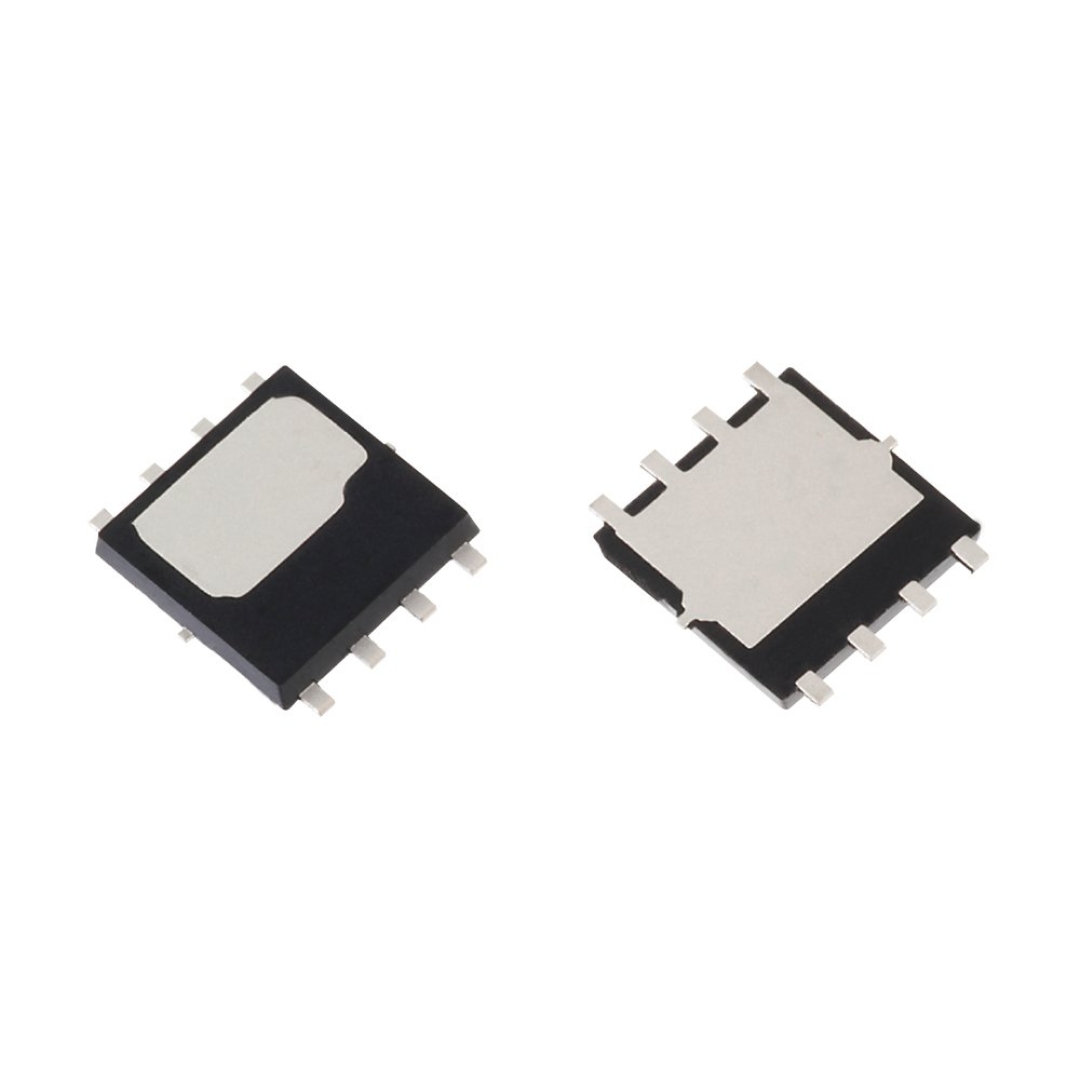

OUTROS NUMEROS DE PEÇA PARA ESTE COMPONENTE: TPCA8A10-H TYPE DESIGNATOR: TPCA8A10-H TYPE OF TRANSISTOR: MOSFET TYPE OF CONTROL CHANNEL: N -CHANNEL MAXIMUM POWER DISSIPATION (PD): 58 W MAXIMUM DRAIN-SOURCE VOLTAGE |VDS|: 30 V MAXIMUM GATE-SOURCE VOLTAGE |VGS|: 20 V MAXIMUM GATE-THRESHOLD VOLTAGE |VGS(TH)|: 2.3 V MAXIMUM DRAIN CURRENT |ID|: 40 A MAXIMUM JUNCTION TEMPERATURE (TJ): 150 °C TOTAL GATE CHARGE (QG): 29 NC RISE TIME (TR): 3.9 NS DRAIN-SOURCE CAPACITANCE (CD): 810 PF MAXIMUM DRAIN-SOURCE ON-STATE RESISTANCE (RDS): 0.003 OHM TPCA8A10 MOSFET CANAL N 30V 40A 58W 8PIN SOP ADVANCE TAGS DE TPCA8A10: TPCA8A10-H, 8A10-H, TPCA8A10, TPC8015-H, TPC8015H
