Especificações Técnicas

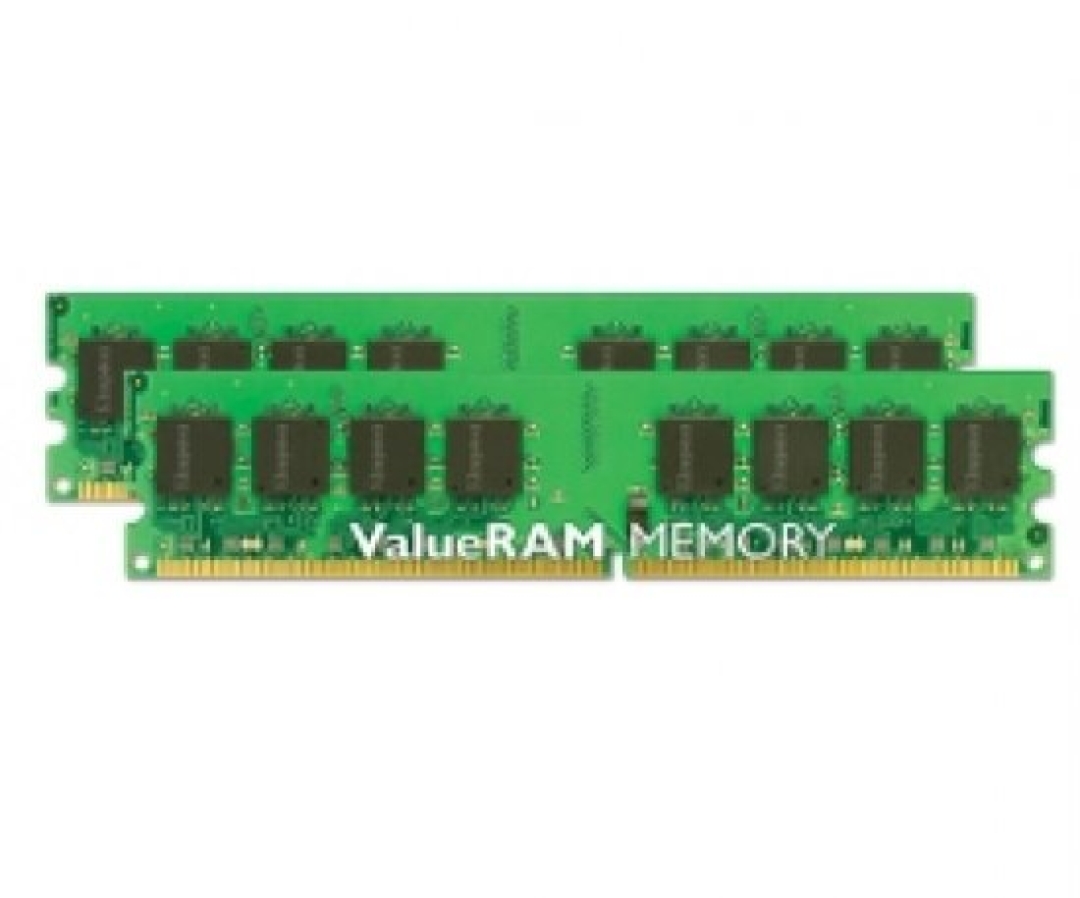

VALUE RAMS KVR667D2D4P5K2/8G IS A KIT OF TWO 512M X 72-BIT 4GB (4096MB) DDR2-667 CL5 SDRAM (SYNCHRONOUS DRAM) "DUAL RANK" REGISTERED W/PARITY MEMORY MODULES. TOTAL KIT CAPACITY IS 8GB (8192MB). THE COMPONENTS ON EACH MODULE INCLUDE EIGHTEEN STACKED 512M X 4-BIT (THIRTY-SIX 256M X 4-BIT) DDR2-667 SDRAM. EACH 240-PIN DIMM USES GOLD CONTACT FINGERS AND REQUIRES +1.8V. THE ELECTRICAL AND MECHANICAL SPECIFICATIONS ARE AS FOLLOWS. MAIN FEATURES:     CLOCK CYCLE TIME (TCK) CL=5: 3NS (MIN.) / 8NS (MAX.) SINGLE POWER SUPPLY OF: +1.8V (+/- .1V) REFRESH TO ACTIVE/REFRESH COMMAND TIME (TRFC): 127.5NS ROW CYCLE TIME (TRC): 54NS (MIN.) ROW ACTIVE TIME (TRAS): 39NS (MIN.) / 70,000NS (MAX.) POWER: 5.940 W (OPERATING PER MODULE) UL RATING: 94 V - 0 MAIN SPECIFICATIONS  STORAGE CAPACITY : 8 GB ( 2 X 4 GB )  UPGRADE TYPE : GENERIC TYPE DRAM TECHNOLOGY DDR II SDRAM FORM FACTOR DIMM 240-PIN MEMORY SPEED 667 MHZ CAS LATENCY CL5 DATA INTEGRITY CHECK ECC RAM FEATURES DUAL RANK , REGISTERED MODULE CONFIGURATION 512 X 72 SUPPLY VOLTAGE 1.8 V LEAD PLATING GOLD COMPATIBLE SLOTS 1 X MEMORY - DIMM 240-PIN KVR667D2D4P5K2/8G MEMÓRIA KINGSTON 8GB (2X4GB) DDR2 ECC MAIORES DETALHES DE KVR667D2D4P5K2/8G NO SITE DO FABRICANTE: HTTP://WWW.VALUERAM.COM/DATASHEETS/KVR667D2D4P5K2_8G.PDF TAGS DE KVR667D2D4P5K2/8G: KVR667D2D4P5K2/4G, DDR2 ECC, DUAL RANK, MEMORIA DE SERVIDOR, MEMORIA PARA SERVIDOR, MEMORIA SERVER, =KVR667D2D4P5K2/8G

Informações Adicionais
