Especificações Técnicas

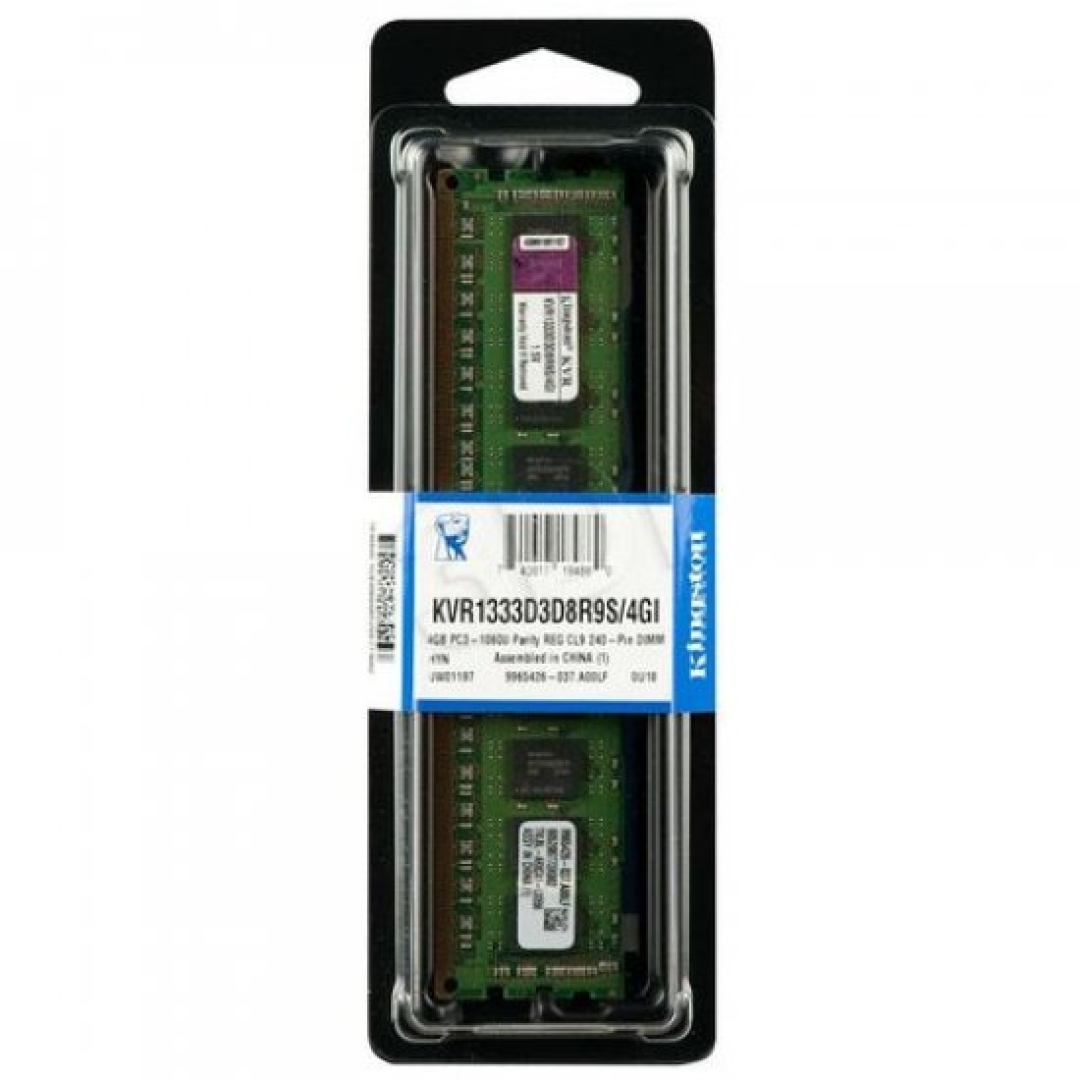

FEATURES: JEDEC STANDARD 1.5V ± 0.075V POWER SUPPLY VDDQ = 1.5V ± 0.075V 667MHZ FCK FOR 1333MB/SEC/PIN 8 INDEPENDENT INTERNAL BANK PROGRAMMABLE CAS LATENCY: 6,7,8,9 POSTED CAS PROGRAMMABLE ADDITIVE LATENCY: 0, CL - 2, OR CL - 1 CLOCK PROGRAMMABLE CAS WRITE LATENCY(CWL) = 7(DDR3-1333) 8-BIT PRE-FETCH BURST LENGTH: 8 (INTERLEAVE WITHOUT ANY LIMIT, SEQUENTIAL WITH STARTING ADDRESS “000” ONLY), 4 WITH TCCD = 4 WHICH DOES NOT ALLOW SEAMLESS READ OR WRITE [EITHER ON THE FLY USING A12 OR MRS] BI-DIRECTIONAL DIFFERENTIAL DATA STROBE INTERNAL(SELF) CALIBRATION : INTERNAL SELF CALIBRATION THROUGH ZQ PIN (RZQ : 240 OHM ± 1%) ON DIE TERMINATION USING ODT PIN AVERAGE REFRESH PERIOD 7.8US AT LOWER THAN TCASE 85°C, 3.9US AT 85°C < TCASE < 95°C ASYNCHRONOUS RESET THERMAL SENSOR GRADE B PCB : HEIGHT 1.18” (30.00MM) DOUBLE-SIDED COMPONENT ROHS COMPLIANT   PERFORMANCE: CL(IDD): 9 CYCLES ROW CYCLE TIME (TRCMIN): 49.5NS (MIN.) REFRESH TO ACTIVE/REFRESH COMMAND TIME (TRFCMIN): 160NS ROW ACTIVE TIME (TRASMIN): 36NS (MIN.) POWER: 2.338 W (OPERATING PER MODULE) UL RATING: 94 V - 0 OPERATING TEMPERATURE: 0O C TO 85O C  STORAGE TEMPERATURE: -55O C TO +100O C KVR1333D3D8R9S/4GI MEMÓRIA KINGSTON 4GB 1333MHZ DDR3 ECC MAIORES DETALHES DE KVR1333D3D8R9S/4GI NO SITE DO FABRICANTE: HTTP://WWW.VALUERAM.COM/DATASHEETS/KVR1333D3D8R9S_4GI.PDF TAGS DE KVR1333D3D8R9S/4GI: KVR1333D3D8R9S/4G, KVR1333D3D8R9S/4GI, KVR1333D3D8R9S/4G, KVR1333D3D8R9S4G, KVR1333D3D8R9S/4G, KVR1333D3D8R9S4GI, MEMORIA DE SERVIDOR, MEMORIA PARA SERVIDOR, MEMORIA SERVER
