Especificações Técnicas

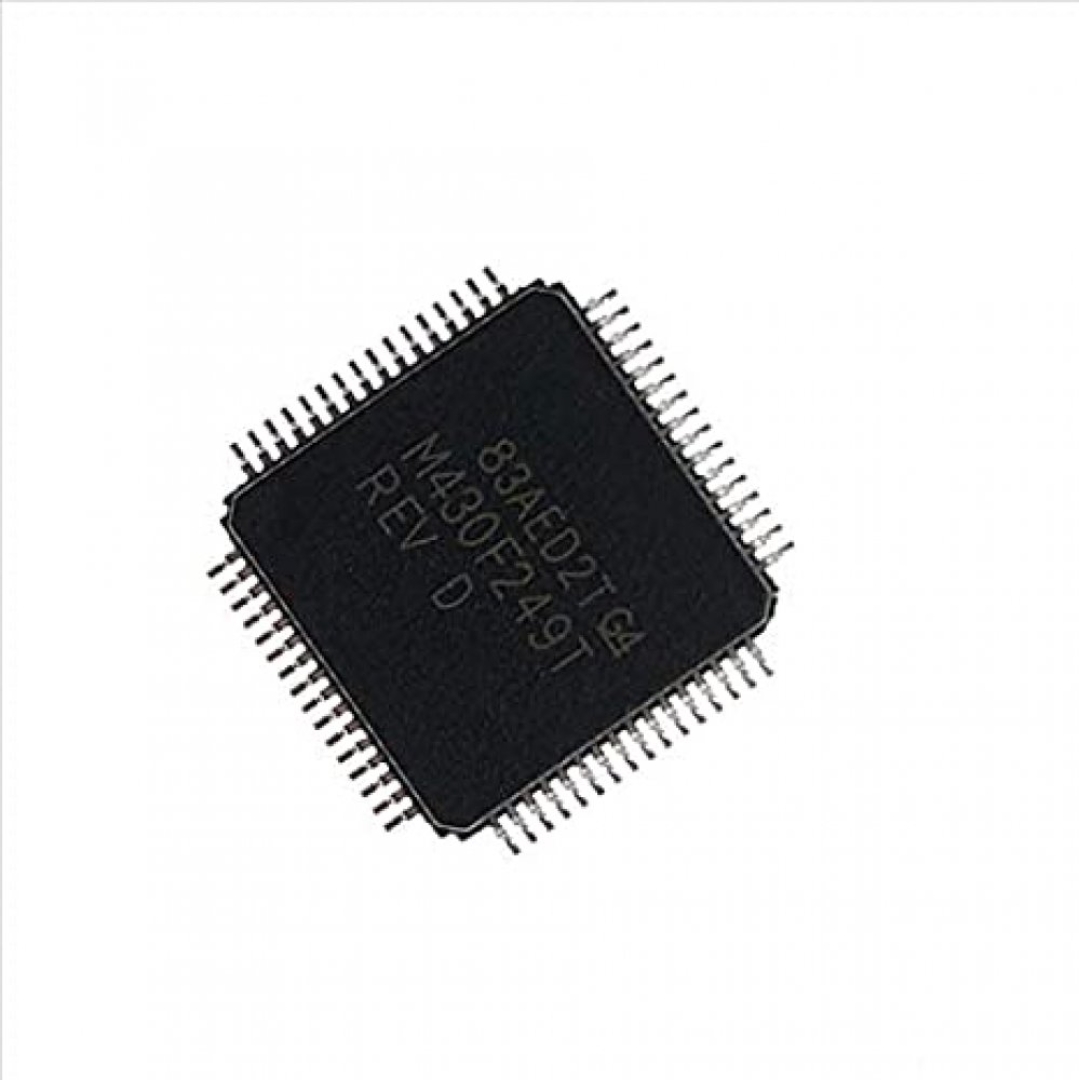

THE TEXAS INSTRUMENTS MSP430 FAMILY OF ULTRA-LOW POWER MICROCONTROLLERS CONSISTS OF SEVERAL DEVICES FEATURING DIFFERENT SETS OF PERIPHERALS TARGETED FOR VARIOUS APPLICATIONS.   THE ARCHITECTURE, COMBINED WITH FIVE LOW-POWER MODES, IS OPTIMIZED TO ACHIEVE EXTENDED BATTERY LIFE IN PORTABLE MEASUREMENT APPLICATIONS. THE DEVICE FEATURES A POWERFUL 16-BIT RISC CPU, 16-BIT REGISTERS, AND CONSTANT GENERATORS THAT CONTRIBUTE TO MAXIMUM CODE EFFICIENCY. THE CALIBRATED DIGITALLY CONTROLLED OSCILLATOR (DCO) ALLOWS WAKE-UP FROM LOW-POWER MODES TO ACTIVE MODE IN LESS THAN 1 µS. THE MSP430F23X, MSP430F24X(1), AND MSP430F2410 SERIES ARE MICROCONTROLLER CONFIGURATIONS WITH TWO BUILTIN 16-BIT TIMERS, A FAST 12-BIT A/D CONVERTER (NOT MSP430F24X1), A COMPARATOR, FOUR (TWO IN MSP430F23X) UNIVERSAL SERIAL COMMUNICATION INTERFACE (USCI) MODULES, AND UP TO 48 I/O PINS.   THE MSP430F24X1 DEVICES ARE IDENTICAL TO THE MSP430F24X DEVICES, WITH THE EXCEPTION THAT THE ADC12 MODULE IS NOT IMPLEMENTED. THE MSP430F23X DEVICES ARE IDENTICAL TO THE MSP430F24X DEVICES, WITH THE EXCEPTION THAT A REDUCED TIMER_B, ONE USCI MODULE, AND LESS RAM ARE INTEGRATED. TYPICAL APPLICATIONS INCLUDE SENSOR SYSTEMS, INDUSTRIAL CONTROL APPLICATIONS, AND HAND-HELD METERS.     MFR TEXAS INSTRUMENTS SERIES MSP430F2XX PACKAGE TRAY PART STATUS ACTIVE CORE PROCESSOR MSP430 CPU16 CORE SIZE 16-BIT SPEED 16MHZ CONNECTIVITY I²C, IRDA, LINBUS, SCI, SPI, UART/USART PERIPHERALS BROWN-OUT DETECT/RESET, POR, PWM, WDT NUMBER OF I/O 48 PROGRAM MEMORY SIZE 60KB (60K X 8 256B) PROGRAM MEMORY TYPE FLASH EEPROM SIZE - RAM SIZE 2K X 8 VOLTAGE - SUPPLY (VCC/VDD) 1.8V ~ 3.6V DATA CONVERTERS A/D 8X12B OSCILLATOR TYPE INTERNAL OPERATING TEMPERATURE -55°C ~ 125°C (TA) MOUNTING TYPE SURFACE MOUNT PACKAGE / CASE 64-LQFP SUPPLIER DEVICE PACKAGE 64-LQFP (10X10) BASE PRODUCT NUMBER 430F249 MSP430F249TPMR MCU 16BIT MSP430 RISC 60KB FLASH 2.5V 3.3V 64PIN MAIORES DETALHES DE MSP430F249TPMR NO SITE DO FABRICANTE: HTTPS://WWW.TI.COM/LIT/DS/SYMLINK/MSP430F235.PDF?TS=1649182525374&REF_URL=HTTPS% TAGS DE MSP430F249TPMR: MSP430F5528, MSP430F5529, MSP430F5438IPZR, MSP430F5438, ECU MSP430, MPU MSP430, MSP430, M430F249T, 430F249, MSP430F249TPMR, MSP430F, MSP430, MSP430 FR972 TI 061 B A438 G4, MSP430 FR6972 TI, MIXED SIGNAL MICROCONTROLLER, MCU 16-BIT MSP430 RISC 60KB FLASH 2.5V/3.3V 64-PIN LQFP T/R, MCU RISC, NSD1728D, ARM7 SERIES MICROCONTROLLER, MCU LPC2000, ARM LPC2000, ARM7TDMI-S, 10-BIT ADC, 10BIT ADC, CONVERSOR AD 10BITS, LPC2368FBD100,551, LPC2368FBD100-551, CPU RL78 CORE, MICROCONTROLADOR MCU RL78, MICROPROCESSADOR DE DESENVOLVIMENTO, RL78/G13-STARTER-KIT, RENESAS R8C CONTROLLER, RENESAS R5F CONTROLLER, M3062LFGPGP, M3062LFGPGP-U3C, M3062LFGPGP-U5C, M16C/60, 16-BIT MICROCONTROLLERS - MCU, M16C M16C/60/62P, M3062, M3062L, M3062LF, M3062LFGPGPU3C, QSK-62P PLUS, QUICK START KIT M16C/62P EVAL BD, M16C, SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER, MCU ARM, MCU ARM7, MCU 10BIT, LPC23, ARM7TDMIS, NXP SEMICONDUCTORS, ARM MICROCONTROLLERS, R5F104LFD, R5F104LFD, R5F104L, TRUE LOW POWER PLATFORM, MCU R01DS0, RL78/G13, RL78/G14, CPU RL78 CORE, MICROCONTROLADOR MCU RL78, MICROPROCESSADOR DE DESENVOLVIMENTO, RL78/G13-STARTER-KIT, RENESAS R8C CONTROLLER, RENESAS R5F CONTROLLER, MSP430F23X, MSP430F24X, MSP430F2410, MICROCONTROLADOR

Informações Adicionais
